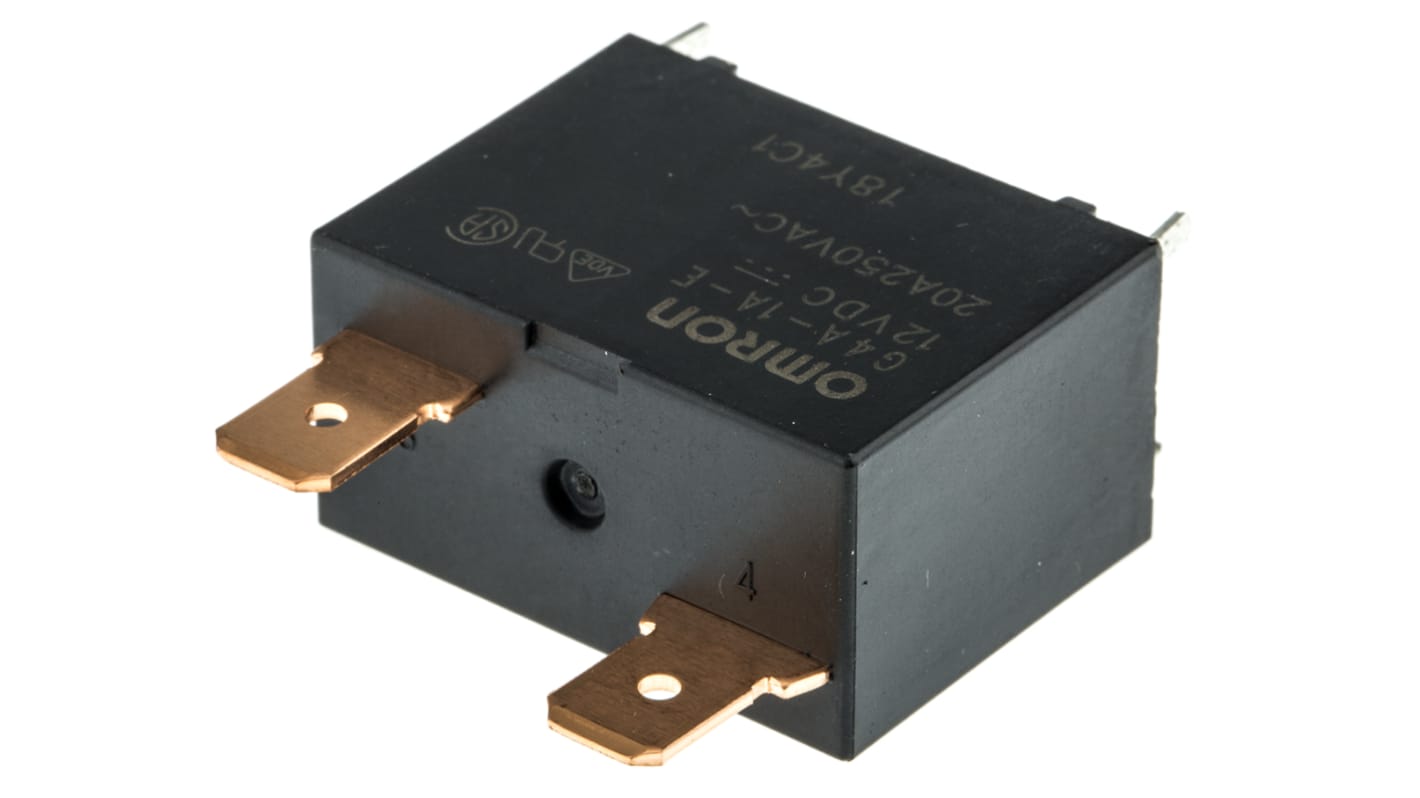

Omron Power Relay, 12V dc Coil, 20A Switching Current, SPST

모든 Power Relays 열람하기

Subtotal (1 unit)*

₩7,840.00

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2027년 3월 22일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩7,840.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
200-2020
Distrelec 제품 번호:
137-03-788
제조사 부품 번호:
G4A-1A-E DC12
제조업체:
Omron
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Omron

Product Type

Power Relay

Coil Voltage

12V dc

Contact Configuration

SPST

Series

G4A

Terminal Type

Solder

Switching Current

20A

Minimum Operating Temperature

-20°C

Switching AC Voltage

250V ac

Switching Power

4kVA

Maximum Operating Temperature

60°C

Coil Resistance

160Ω

Width

16mm

Standards/Approvals

RoHS

Coil Power

0.9W

Length

30.5mm

Height

33.5mm

Contact Material

Silver Alloy

Contact Resistance

30mΩ

Omron Non-latching Relay


The Omron G4A series single-pole plug-in mount non-latching relay has contact configuration of SPNO. It is actuated with 12VDC coil voltage and 20A switching current. The output connections are mirrored on the top of the housing as Faston 250 quick-connect terminals. This relay is ideal for motor switching.

Note:

For other G4A versions with the only PCB, terminals see stk no's 686-7161, 686-7039 and 686-7032 typically.

Features and Benefits


Coil resistance is 160ohm

Surge current is 80A

Highly noise-resistive insulation materials employed

Through-hole terminal type

Certifications


UL approved

CSA certified

VDE approved

Approvals

CSA; UL; TUV
