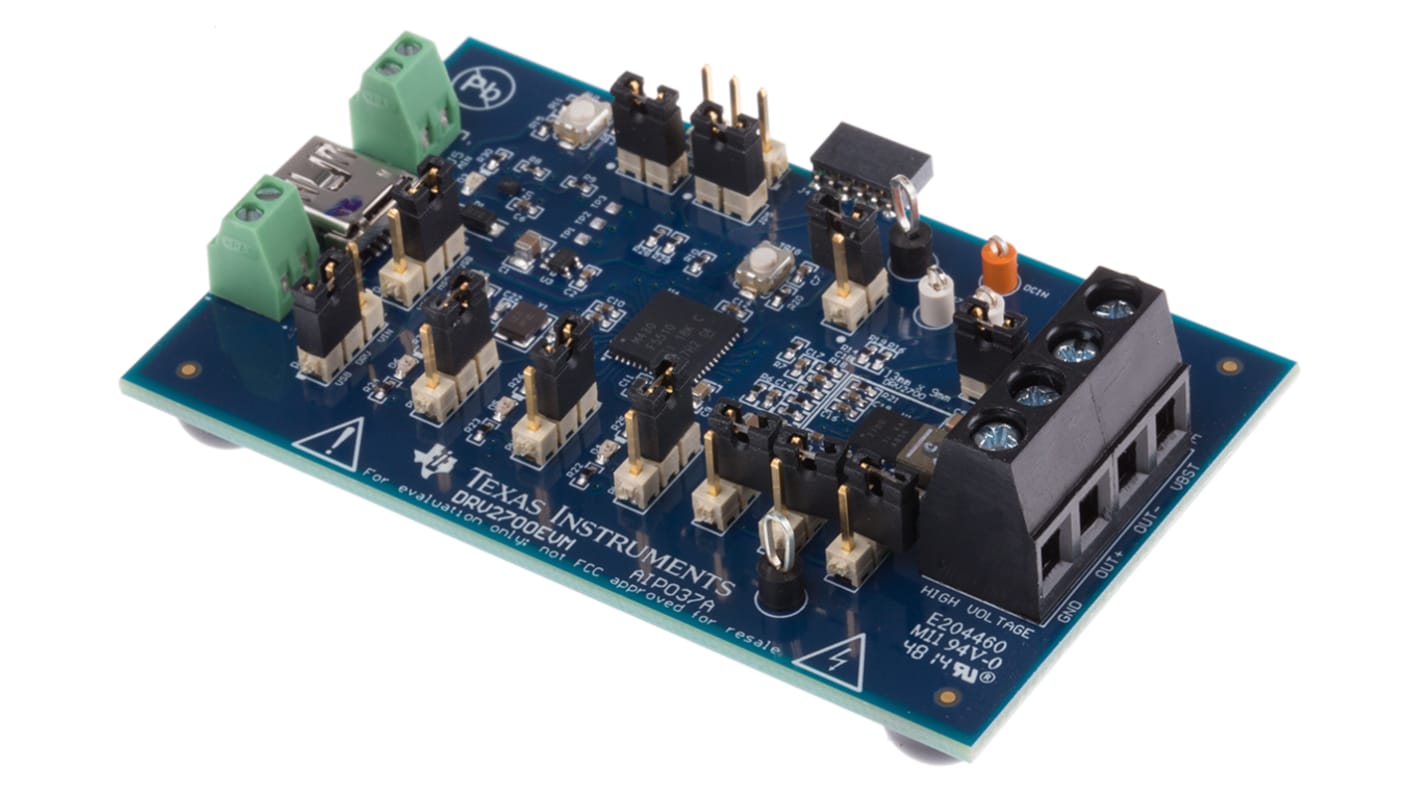

Texas Instruments Evaluation Board Piezo Driver for DRV2700

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
903-3888
제조사 부품 번호:
DRV2700EVM
제조업체:
Texas Instruments
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Texas Instruments

Product Type

Power Management Development Kit

Power Management Function

Piezo Driver

Kit Classification

Shield

Featured Device

DRV2700

Kit Name

Evaluation Board

Standards/Approvals

No

DRV2700 High Voltage Piezo Driver Evaluation Kit


A Texas Instruments evaluation module for the DRV2700 high voltage piezo driver. The device is typically used in industrial applications for driving piezoelectric elements. The differential 200Vpp output capability as well as the 105V single ended output can be assessed using this evaluation board. The available pin breakouts in addition to the on-board MSP430F5510 microcontroller allows for prototyping work into existing systems. The module caters for multiple input modes including 0-10V single ended, PWM, and AC input; outputs can be configured for 0-200V pk-pk differential, 0-105V single or dual output.

• Demonstration mode firmware preloaded onto MSP430 MCU

• Downloadable software to control EVM

• LED indicators for status and input settings

• Supplied with Mini-B USB cable

Piezoelectric and Haptic Drivers
