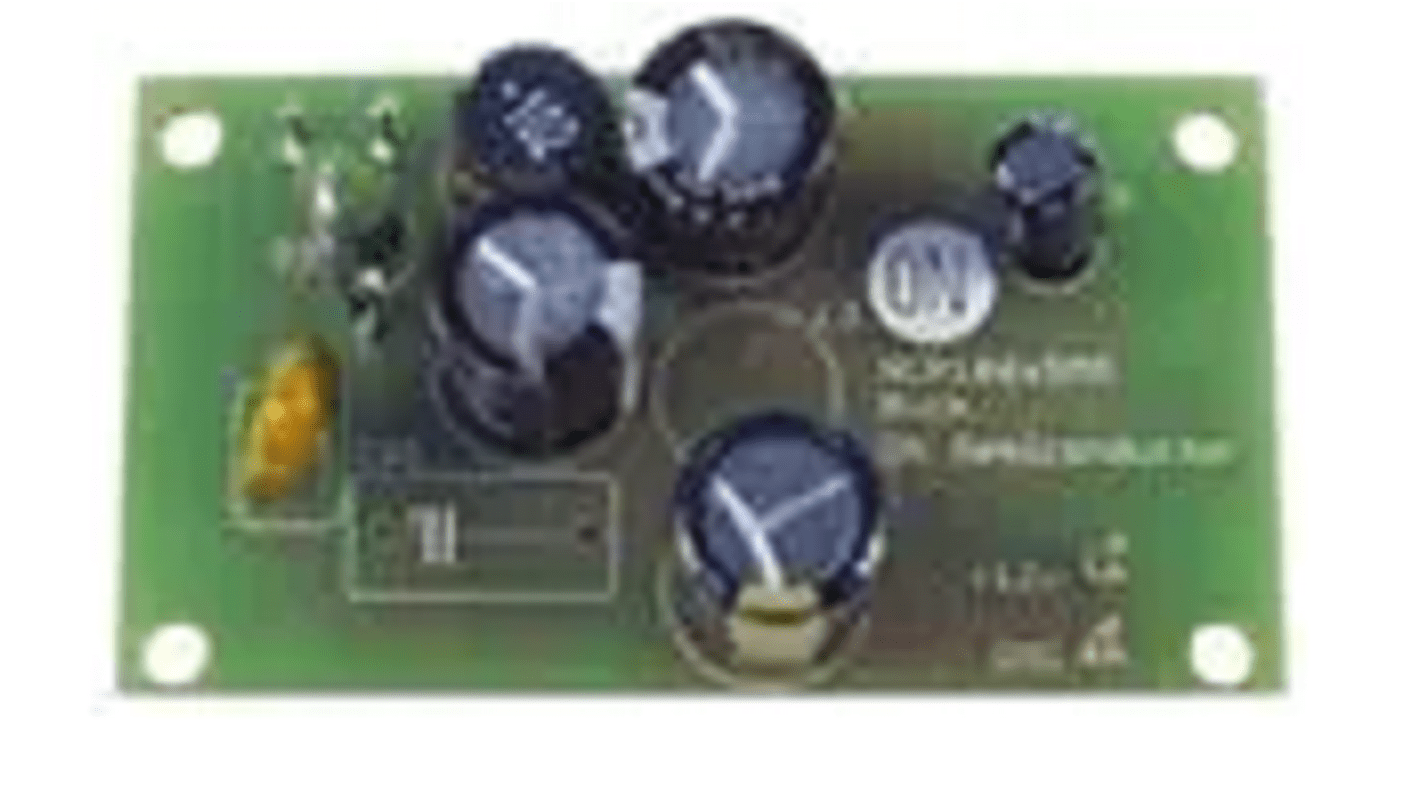

onsemi High-Voltage Switcher for Low Power Offline SMPS Switching Power Supply for NCP1060 for Power Meter SMPS
- RS 제품 번호:
- 248-5382
- 제조사 부품 번호:
- NCP1060BUCKGEVB
- 제조업체:
- onsemi
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 248-5382
- 제조사 부품 번호:
- NCP1060BUCKGEVB
- 제조업체:
- onsemi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | onsemi | |
| Product Type | Evaluation Board | |
| Power Management Function | Switching Power Supply | |
| For Use With | Power Meter SMPS | |
| Kit Classification | Module, Power Supply | |
| Featured Device | NCP1060 | |
| Kit Name | High-Voltage Switcher for Low Power Offline SMPS | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 onsemi | ||
Product Type Evaluation Board | ||
Power Management Function Switching Power Supply | ||
For Use With Power Meter SMPS | ||
Kit Classification Module, Power Supply | ||
Featured Device NCP1060 | ||
Kit Name High-Voltage Switcher for Low Power Offline SMPS | ||
Standards/Approvals RoHS | ||
The ON Semiconductor High-Voltage Switcher for Low Power Offline SMPS NCP1060, NCP1063 products integrate a fixed frequency current mode controller with a 700V MOSFET and offers a high level of integration, including soft−start, frequency−jittering, short−circuit protection, skip−cycle, adjustable peak current set point, ramp compensation, and a Dynamic Self−Supply, it can be seamlessly used both in non−isolated and in isolated topologies, for improved standby performance, the connection of an auxiliary winding stops the DSS operation and helps to reduce input power consumption below 50 mW at high line.
Large creepage distance between high−voltage pins
Current mode fixed frequency operation-60 kHz or 100 kHz
Adjustable peak current
Fixed ramp compensation
Dynamic self−supply
Auto recovery output short circuit protection with timer based detection
Auto recovery overvoltage protection with auxiliary winding operation
No load input consumption < 50 mW
