MikroElektronika H-Bridge 9 Click Half-Bridge Driver for L99UDL01 for mikroBUS Socket
- RS 제품 번호:
- 247-5714
- 제조사 부품 번호:
- MIKROE-4821
- 제조업체:
- MikroElektronika
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 247-5714
- 제조사 부품 번호:
- MIKROE-4821
- 제조업체:
- MikroElektronika
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | MikroElektronika | |
| Product Type | Power Management Development Kit | |
| Power Management Function | Half-Bridge Driver | |
| For Use With | mikroBUS Socket | |
| Kit Classification | Add On Board | |
| Featured Device | L99UDL01 | |
| Kit Name | H-Bridge 9 Click | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 MikroElektronika | ||
Product Type Power Management Development Kit | ||
Power Management Function Half-Bridge Driver | ||
For Use With mikroBUS Socket | ||
Kit Classification Add On Board | ||
Featured Device L99UDL01 | ||
Kit Name H-Bridge 9 Click | ||
Standards/Approvals RoHS | ||

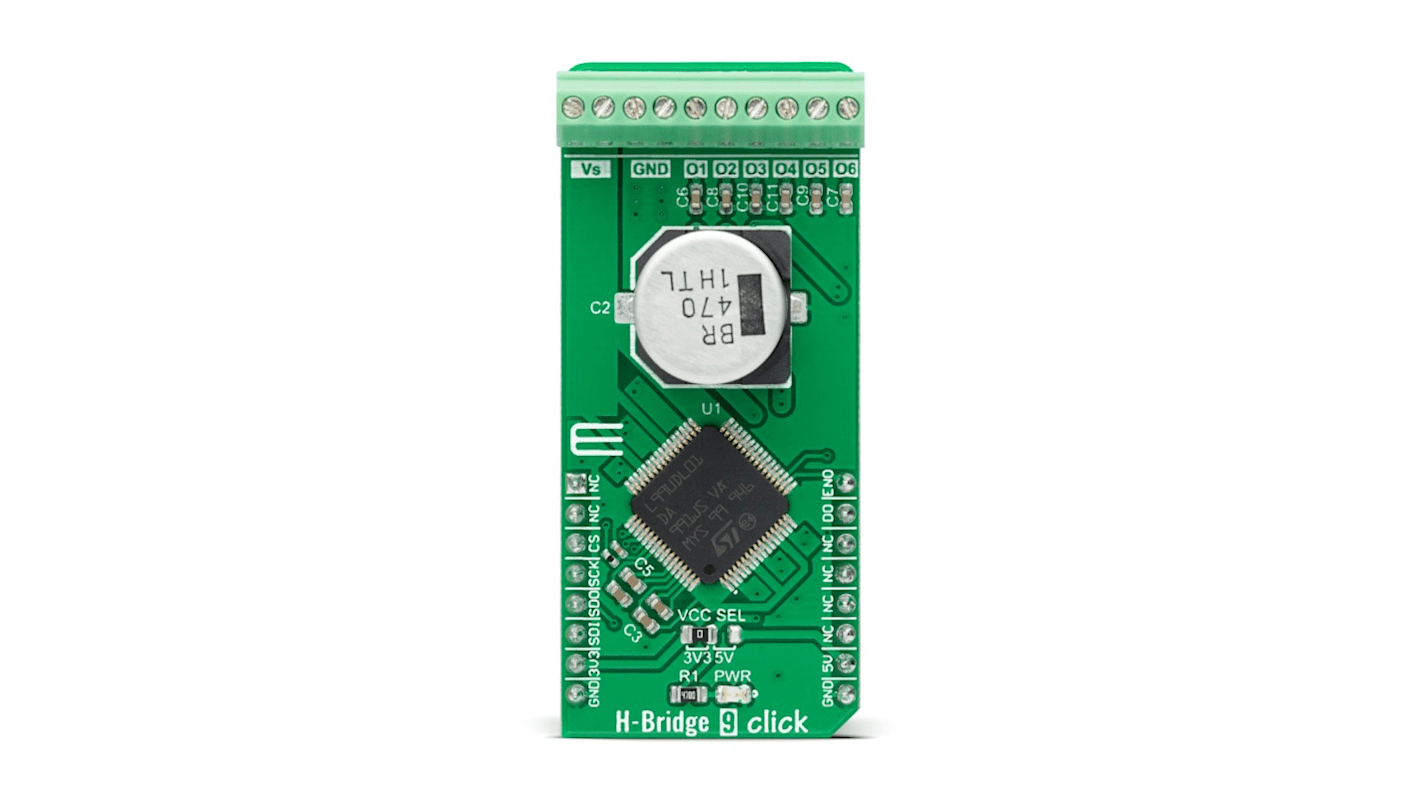

The The MikroElektronika's H-Bridge 9 Click is a compact add on board that contains six MOSFET half bridge outputs. This board features the L99UDL01, a six channel half bridge driver monolithic integrated circuit that is PWM configurable and current regulated from STMicroelectronics. It achieves excellent load and line regulation over a wide input supply range up to 18V. These six integrated MOSFET H bridges are commanded entirely by the SPI interface using duration and current level commands. Complete protection features include open load, short to battery and ground, and load integrity via 10-bit current feedback. This Click board is suitable as a multiple brushed DC motor driver for various applications.
Six integrated fully protected half bridges
Several operational modes
Low power consumption
High level of programming
High level diagnostics
Protection features
