MikroElektronika PROFET 2 Click Protected Switch for BTS70082EPAXUMA1 for mikroBUS Socket

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩30,531.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩30,531.20
5 +₩29,929.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
247-5713
제조사 부품 번호:
MIKROE-4819
제조업체:
MikroElektronika
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MikroElektronika

Product Type

Power Management Development Kit

Power Management Function

Protected Switch

For Use With

mikroBUS Socket

Kit Classification

Add On Board

Featured Device

BTS70082EPAXUMA1

Kit Name

PROFET 2 Click

Standards/Approvals

RoHS

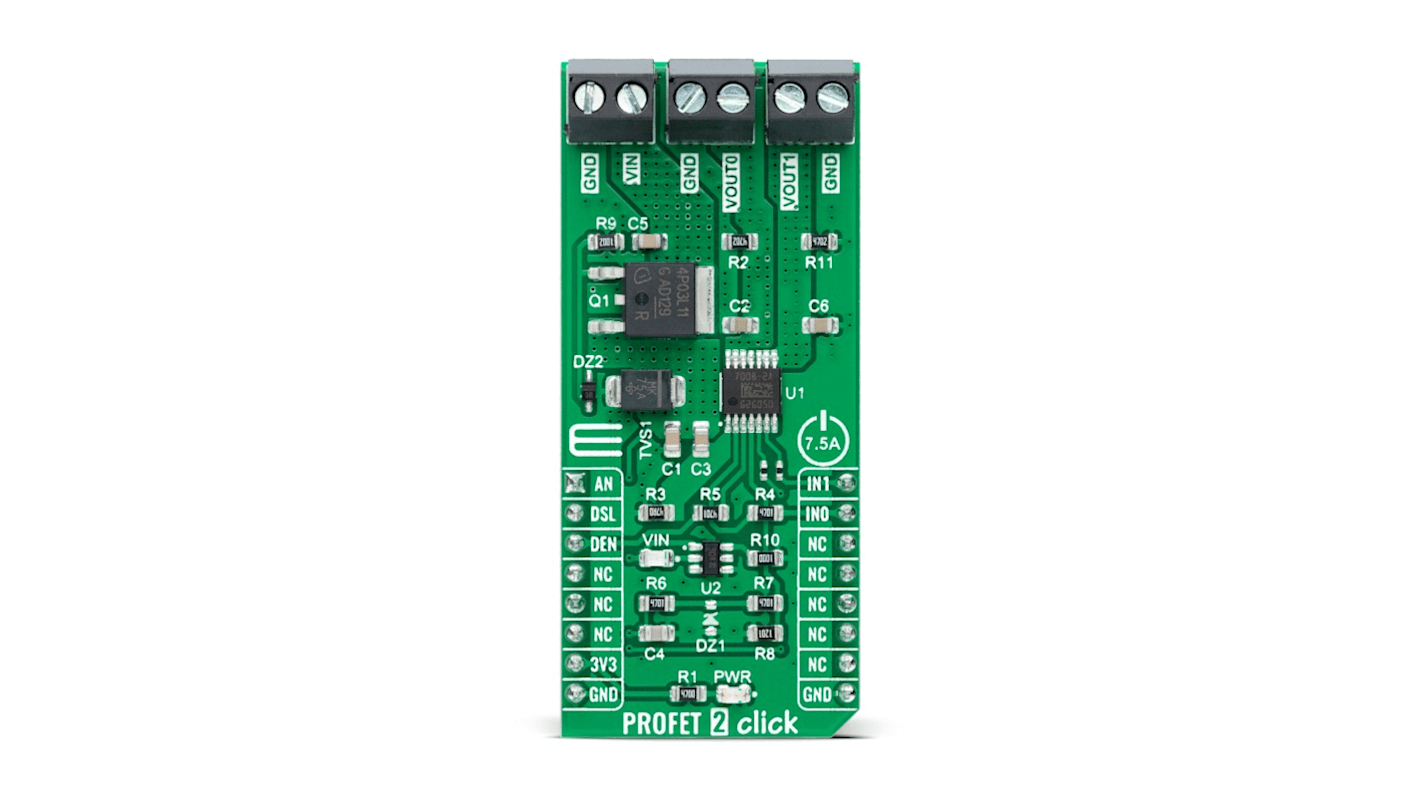

The The MikroElektronika's PROFET 2 Click is a compact add-on board that contains a smart high-side power switch. This board features the BTS70082EPAXUMA1, a dual-channel, high side power switch with embedded protection and diagnosis feature from Infineon Technologies. This switch has a driving capability suitable for 7.5A loads and high inrush current loads and features a ReverSave, which causes the power transistor to switch on in case of reverse polarity. Besides its protection features, it also has several pin configurable diagnosis features such as proportional load current sense, open Load in ON and OFF state, and short circuit to ground and battery. This Click board is suitable for resistive, inductive, and capacitive loads, replaces electromechanical relays, fuses and discrete circuits, and many more.

High side switch with diagnosis and embedded protection

Reverse ON for low power dissipation in reverse polarity

Wide external power supply range with LED indication
