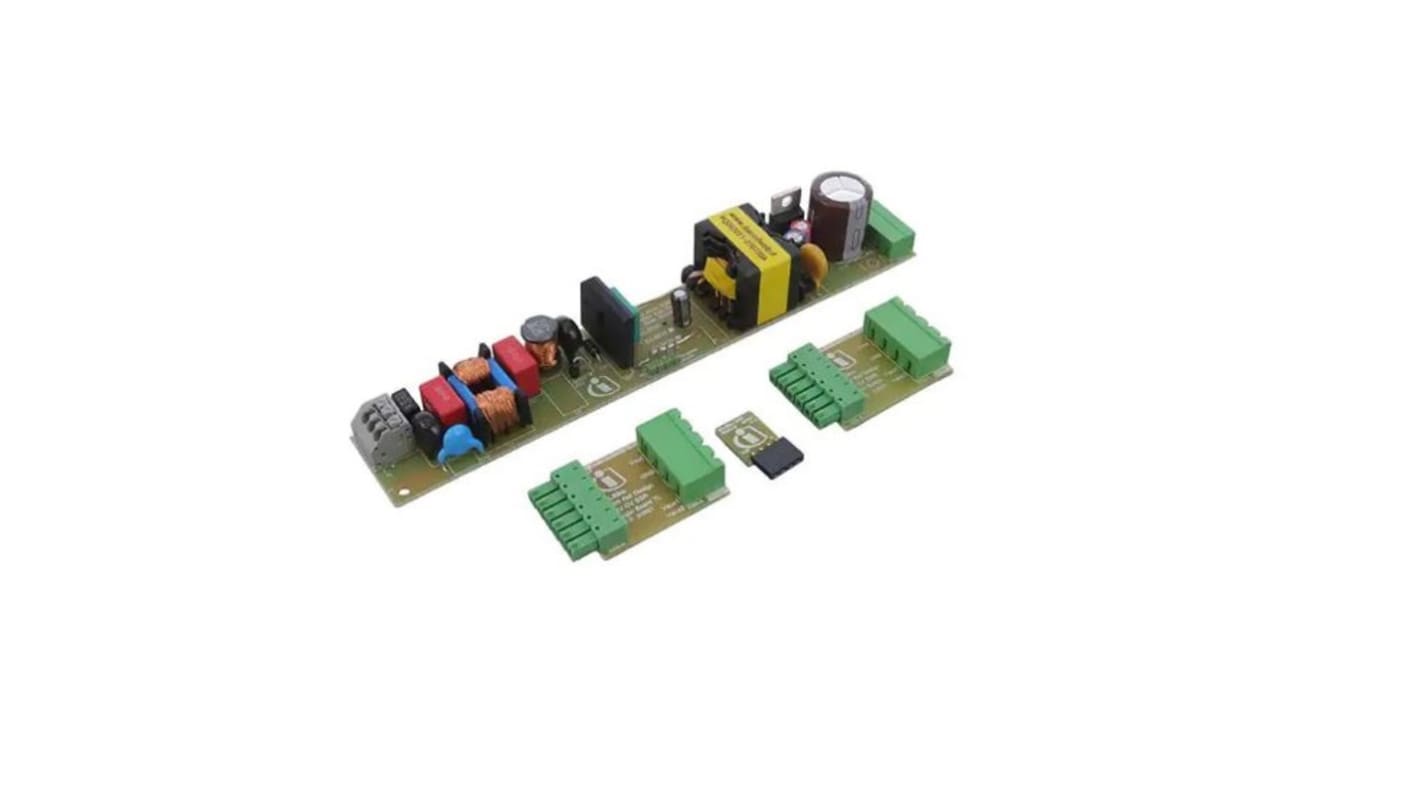

Infineon Development Board Flyback Converter for IPD80R900P7, ICL8800 for LED Lighting Applications

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩86,442.40

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 추가로 2025년 12월 15일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 1₩86,442.40
2 - 2₩84,712.80
3 +₩82,174.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
232-5740
제조사 부품 번호:
REFICL8800LED43WTOBO1
제조업체:
Infineon
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Infineon

Power Management Function

Flyback Converter

Product Type

Development Board

For Use With

LED Lighting Applications

Kit Classification

Evaluation Board

Featured Device

IPD80R900P7, ICL8800

Kit Name

Development Board

Standards/Approvals

RoHS

The Infineon’s evaluation board is 43 W high power factor flyback converter with constant voltage output based on ICL8800. The board is a constant voltage (CV) secondary-side regulated (SSR) system and is intended to be used with a constant current (CC) converter for LED lighting applications. This reference design is provided with two regulation circuits. Both circuits are designed as plug-and-play solutions, but at least one has to be connected to the main board.

Best fit topology for on/off LED driver with minimum dimming levels down to 5%

Two-stage topology combines scalability with numerous features

High light quality

Cost-effective and bottom-up design

Flexibility and low BOM for many applications
