Microchip Power Module for PD70201ILQ for PD70201
- RS 제품 번호:
- 231-8070
- 제조사 부품 번호:
- EV18R03A
- 제조업체:
- Microchip
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 231-8070
- 제조사 부품 번호:
- EV18R03A
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Evaluation Board | |
| Power Management Function | Power Module | |
| For Use With | PD70201 | |
| Kit Classification | Development Board | |
| Featured Device | PD70201ILQ | |
| Standards/Approvals | ISO | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Evaluation Board | ||
Power Management Function Power Module | ||
For Use With PD70201 | ||
Kit Classification Development Board | ||
Featured Device PD70201ILQ | ||
Standards/Approvals ISO | ||

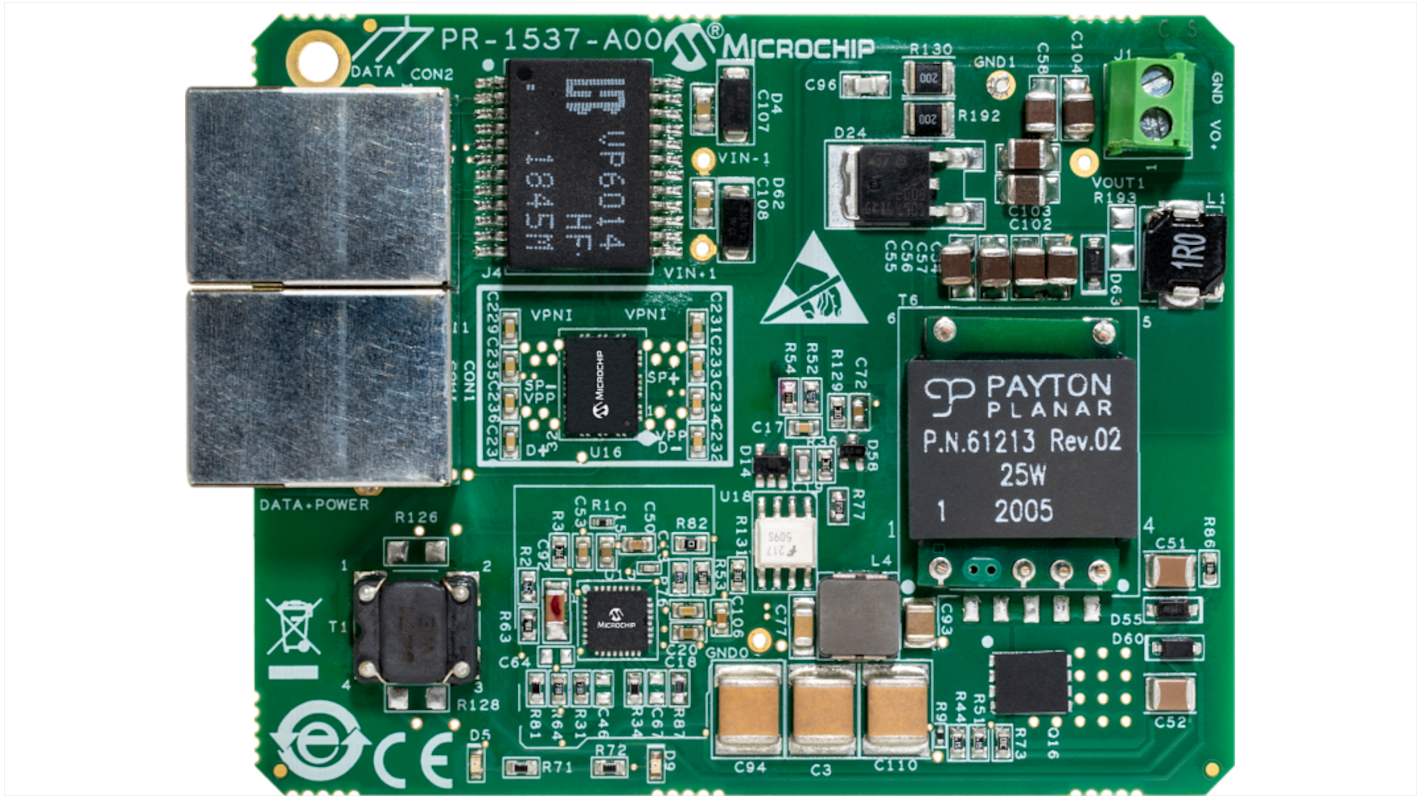

The Microchip evaluation board provides designers with the environment needed for evaluating the performance and implementation of PD applications based on the PD70201 device. The board uses a single PD device, PD70201ILQ, to support the detection, class, and power supplying phases on the 2/4 pairs of the Cat5 cable. The PD70201ILQ supports a standard IEEE 802.3at Type 2 interface.
Featuring PD70201
IEEE 802.3af/at standard compliant
25W - 24V / 1.05A output voltage / current
Fly back topology
Two RJ45 connectors (data and power in, data out)
Output voltage connector
On board power good LED indicator
