onsemi Evaluation Board Flyback Converter for NCP11187A65P45WGEVB for NCP11187
- RS 제품 번호:
- 221-6616
- 제조사 부품 번호:
- NCP11187A65P45WGEVB
- 제조업체:
- onsemi
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 221-6616
- 제조사 부품 번호:
- NCP11187A65P45WGEVB
- 제조업체:
- onsemi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | onsemi | |
| Power Management Function | Flyback Converter | |
| Product Type | Power Board | |
| For Use With | NCP11187 | |
| Kit Classification | Development Kit | |
| Featured Device | NCP11187A65P45WGEVB | |
| Kit Name | Evaluation Board | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 onsemi | ||
Power Management Function Flyback Converter | ||
Product Type Power Board | ||
For Use With NCP11187 | ||
Kit Classification Development Kit | ||
Featured Device NCP11187A65P45WGEVB | ||
Kit Name Evaluation Board | ||
Standards/Approvals RoHS | ||

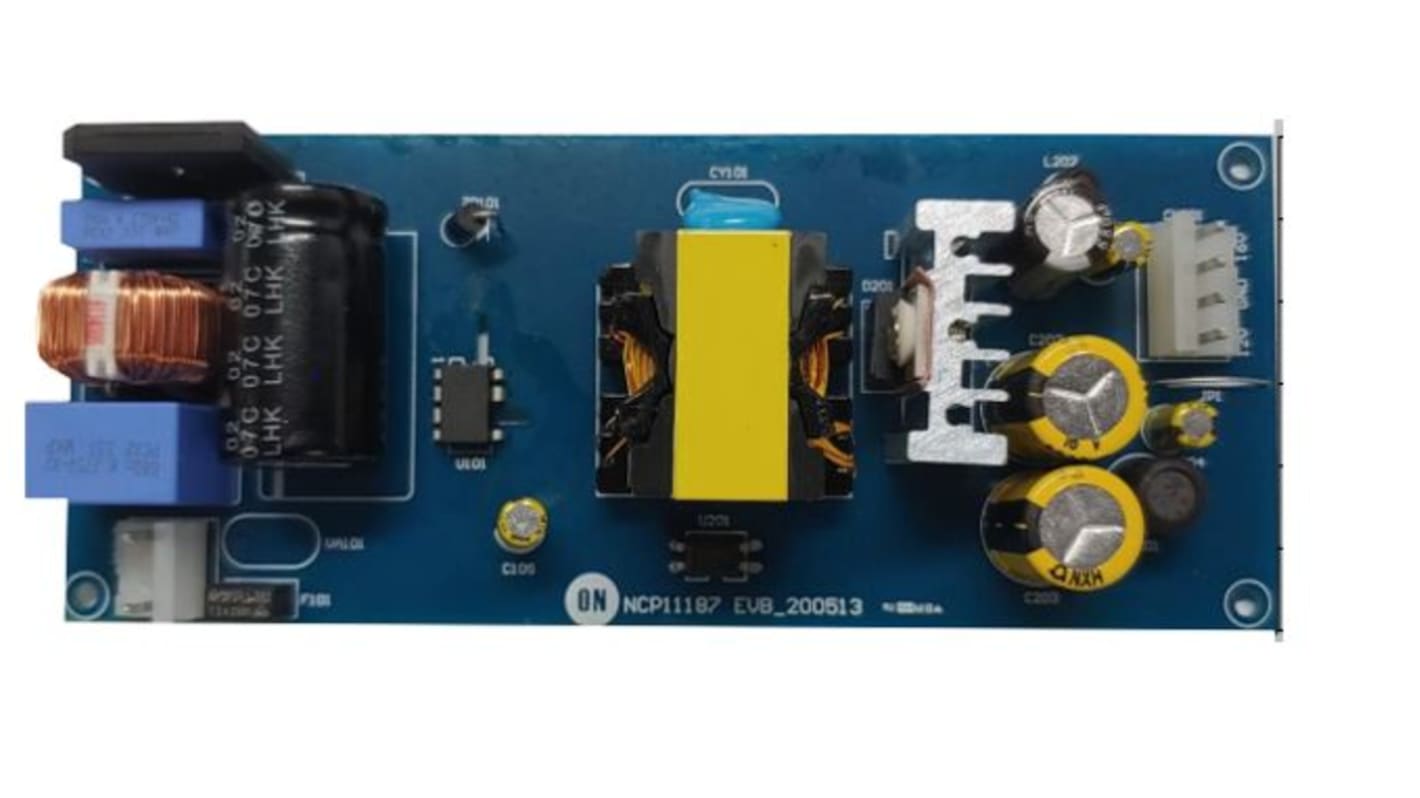

The ON Semiconductor NCP11187A65 evolution board has 45 W isolated fly back converter using NCP11187 for auxiliary power supplies but also provides key experimental results and information. It is a highly enhanced switcher integrating a peak current mode PWM controller employing mWSaver and frequency reduction technology and a highly robust 800 V super−junction II MOSFET.
Programmable constant output power limit for entire input voltage range
Precise brown−out protection and line over−voltage protection with hysteresis
Current sense short protection and abnormal over−current protection
