Microchip PSE AT Power Over Ethernet (POE) for PD69104B1 for PD69104
- RS 제품 번호:
- 215-6003
- 제조사 부품 번호:
- PD-IM-7504B
- 제조업체:
- Microchip
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 215-6003
- 제조사 부품 번호:
- PD-IM-7504B
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Power Management Function | Power Over Ethernet (POE) | |
| Product Type | Power Management Development Kit | |
| For Use With | PD69104 | |
| Kit Classification | Evaluation Board | |
| Featured Device | PD69104B1 | |
| Kit Name | PSE AT | |
| Standards/Approvals | RoHS Compliant | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Power Management Function Power Over Ethernet (POE) | ||
Product Type Power Management Development Kit | ||
For Use With PD69104 | ||
Kit Classification Evaluation Board | ||
Featured Device PD69104B1 | ||
Kit Name PSE AT | ||
Standards/Approvals RoHS Compliant | ||

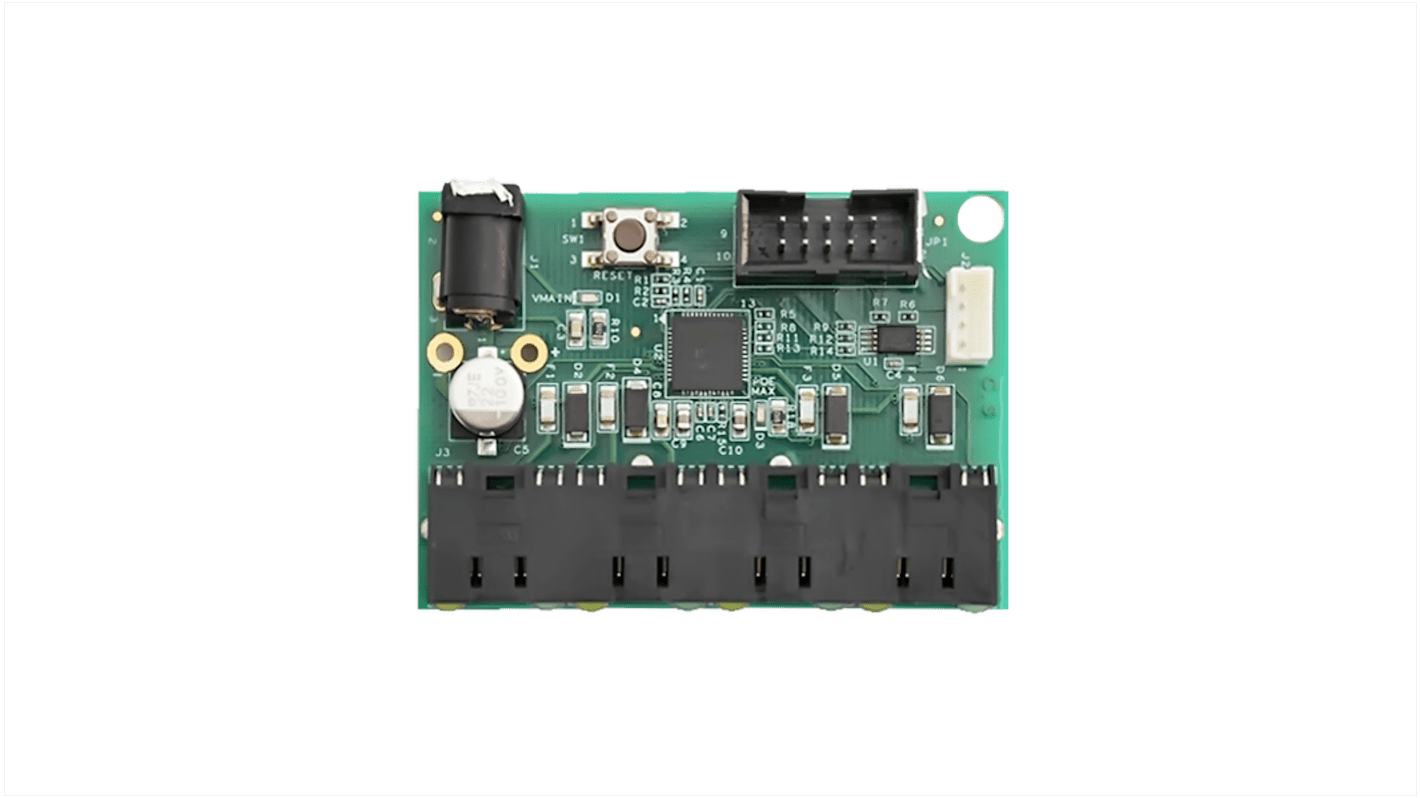

The Microchip PD-IM-7504B evaluation board provides designers with the needed environment to evaluate the performance and implementation of PoE and PoE extended mode applications, based on PD69104B1 PoE manager. The evaluation board enables PoE designers to evaluate Microchip's PoE solution with maximum flexibility and ease in configuration.
Featuring PD69104B1
IEEE 802.3af/at standard compliant 4 ports
Supporting 4 x 30W or 2 x 60W ports
LED stream
Designed to support four RJ45 ports, PoE application, and PoE extended mode (2-pairs)
Vin connector – DC jack
