STMicroelectronics Evaluation Board Power Management for STM8S103F2 for Halogen and Low-Consumption Lamps

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩120,489.20

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩120,489.20
5 +₩118,082.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
196-1786
제조사 부품 번호:
STEVAL-ILD004V1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

Power Management Development Kit

Power Management Function

Power Management

For Use With

Halogen and Low-Consumption Lamps

Kit Classification

Evaluation Board

Featured Device

STM8S103F2

Kit Name

Evaluation Board

Standards/Approvals

RoHS

COO (Country of Origin):
IT

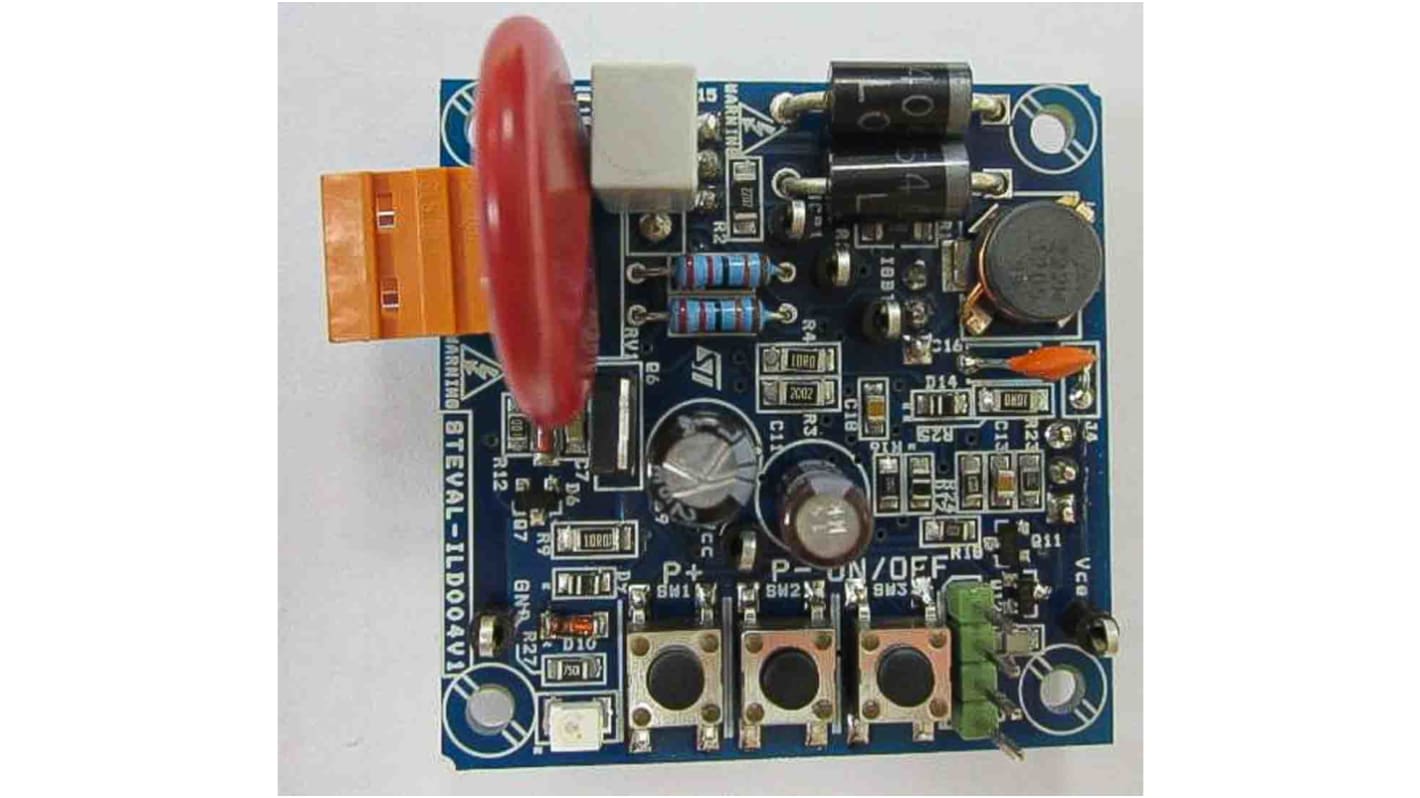

The STEVAL-ILD004V1 evaluation board is designed to propose an innovative and low cost power topology for a light wall dimmer using two sensitive TS820-600FP SCRs and a single STGF10NC60KD IGBT to dim the following lamp types: 100 - 240 V halogen lamps, SELV halogen lamps through magnetic or electronic transformers, and new CFL and LED dimmable lamps. Control of the board is achieved with the STM8S103F2 microcontroller.

Operation for 2-wire wall dimmer

Leading-edge control only (compatible with all commonly-available lamps on the market)

Operation at 110 V or 230 V line rms voltage and 50 Hz or 60 Hz line frequency

Dimmable power range (higher power is possible with larger heatsink):

3 W to 600 W for 230 V rms line

3 W to 300 W for 110 V rms line

Power efficiency @ 600 W - 230 V > 99%

Standby losses @ 230 V < 0.3 W

Short-circuit protection at startup

Enhanced interface with push-buttons, soft-start and soft-stop, memory of last setting
