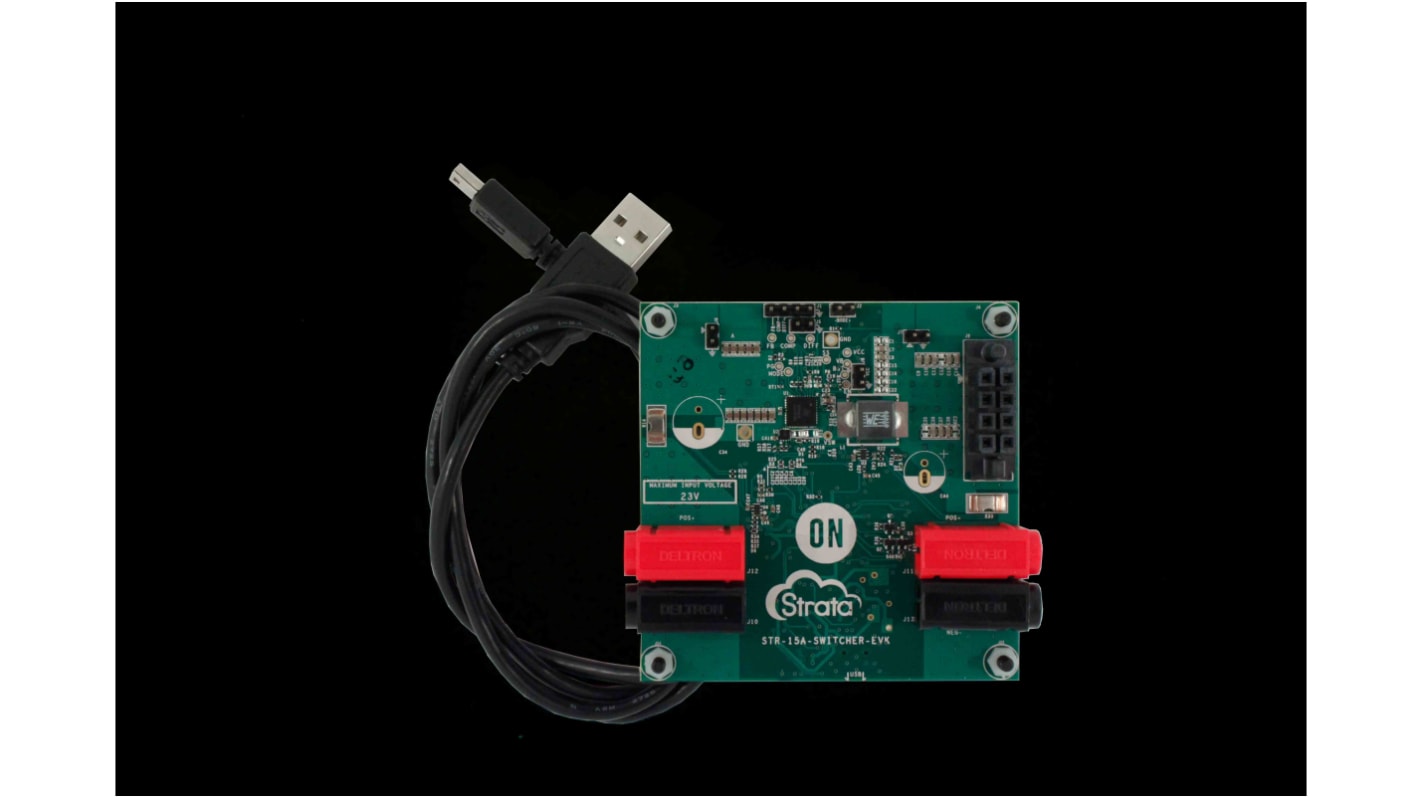

onsemi Seamless Evaluation of Hardware Device for NCP3232N for Telecom and Network Equipmen, ASIC, FPGA, Industry PC

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩293,092.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 2 개 unit(s)이 배송 준비 됨
수량
한팩당
1 - 4₩293,092.00
5 +₩287,207.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
195-2434
제조사 부품 번호:
STR-NCP3232N-EVK
제조업체:
onsemi
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

onsemi

Product Type

Power Management Development Kit

For Use With

Telecom and Network Equipmen, ASIC, FPGA, Industry PC Equipment, DSP and CPU Core and I/O Supplies, Server and Storage System

Kit Classification

Evaluation Board

Featured Device

NCP3232N

Kit Name

Seamless Evaluation of Hardware Device

Standards/Approvals

RoHS

Strata enables seamless evaluation of hardware devices such as this configurable NCP3232N regulator. The DC regulator can be controlled via a simple, easy-to-use UI which allows users to both measure and control key regulator functions. Design collateral such as schematics, PCB layout, test reports, etc. are supplied in the same Strata interface to ease evaluation. This design serves as a vehicle for customers to start taking advantage of the new Strata ecosystem.

Strata-enabled Configurability and Telemetry

Switching Frequency Option: 550 kHz, 1.1 MHz

External Programmable Soft−Start

Lossless Low−side FET Current Sensing

Output Over−voltage Protection and Under−voltage Protection

Selective Hiccup/Latch Off Operation for All Faults

Pre−bias Start−up

Power Good Output

Internal Over−temperature Protection

Adjustable Input UVLO

Applications

Industry PC Equipment

ASIC, FPGA, DSP and CPU Core and I/O Supplies

Server and Storage System

Telecom and Network Equipment
