MikroElektronika DC Motor 8 Click DC Motor for MIC4605 for DC Motor Driver

본 제품군 열람하기
대량 구매 할인 받기

5개 더 담고 ₩4,100.00 할인 받기

View bulk pricing options

Subtotal (1 unit)*

₩40,520.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 11월 16일 부터 6 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
절감
1 - 4₩40,520.00-
5 +₩39,700.00₩4,100.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
174-5612
제조사 부품 번호:
MIKROE-2893
제조업체:
MikroElektronika
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MikroElektronika

Power Management Function

DC Motor

Product Type

Development Kit

For Use With

DC Motor Driver

Kit Classification

DC Motor 8 Click

Featured Device

MIC4605

Kit Name

DC Motor 8 Click

Standards/Approvals

No

COO (Country of Origin):
RS

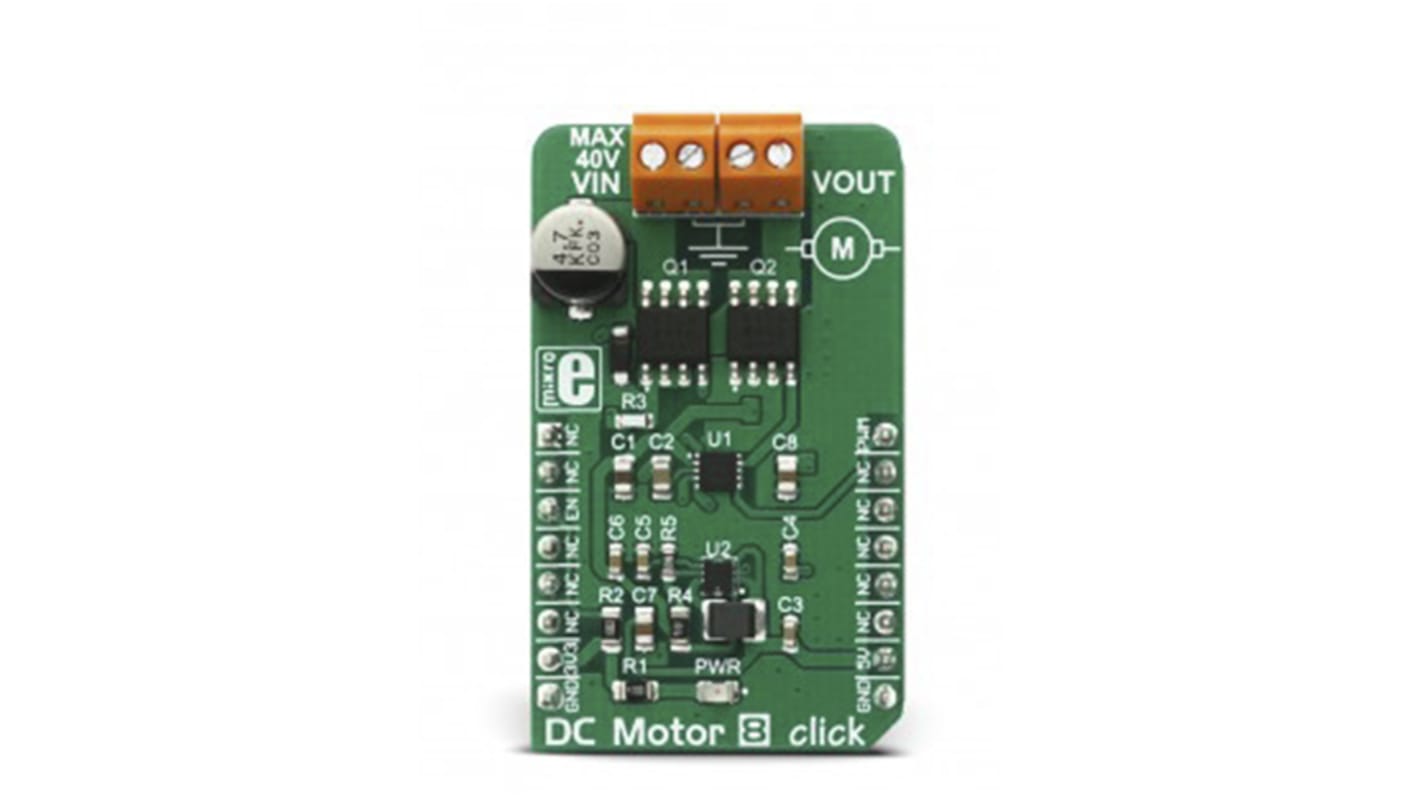

MikroElektronika 8 Click DC Motor Drive


The MikroElektronika is an 8-click DC motor driver. This motor driver can drive DC motors with brushes, providing them with a significant amount of current and voltage up to 40V. The click has one control, which uses the PWM signal from the host MCU. This DC motor 8 click relies on the MIC4605, 85V half-bridge MOSFET driver with adaptive dead time and shoot-through protection, from Microchip. To regulate the speed of the motor rotation, it uses the half-bridge topology. The advance dead time circuitry that monitors the output stage, provides maximum switching efficiency and features an advanced technique to avoid the shoot-through current.

Features and Benefits


• Complete isolation of the output stage

• Good switching efficiency

• Input voltage is 3.3V or 5V

• Intelligent shoot-through protection mechanisms

• Interface: GPIO and PWM

• Low overall power consumption

• Output current is 1A

Applications


• Battery operated handheld tools

• Fans

Certifications


• ANSI/ESD S20.20:2014

• BS EN 61340-5-1:2007
