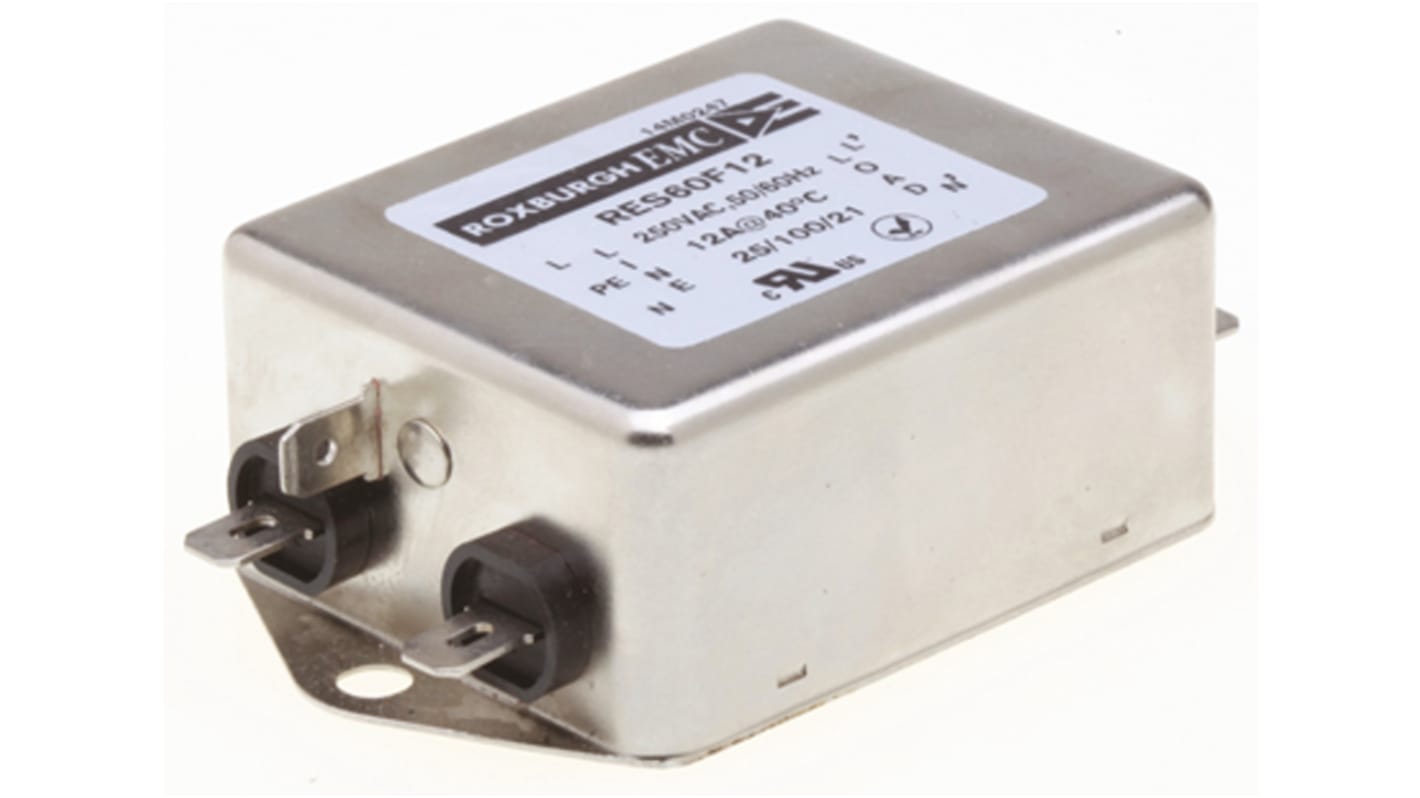

Roxburgh EMC, RES60 12A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On, Single Phase
- RS 제품 번호:
- 806-8180
- 제조사 부품 번호:
- RES60F12
- 제조업체:
- Roxburgh EMC
단가 개당
₩86,403.691
일시 품절-다음 입고 날짜는 27/09/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩86,403.691 |
| 5 - 9 | ₩82,946.991 |
| 10 + | ₩79,490.292 |
- RS 제품 번호:
- 806-8180
- 제조사 부품 번호:
- RES60F12
- 제조업체:
- Roxburgh EMC
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- IN
제품 세부 사항
Roxburgh EMC RES60 Series
Roxburgh EMC RES60 series of multi-stage, single phase EMC filters featuring high differential and high common mode attenuation. The RES60 series is designed for use in general purpose applications where increased RFI noise is present, including: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation
Multi-stage
High differential and high common mode attenuation
For use from DC to 400Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting
High differential and high common mode attenuation
For use from DC to 400Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting
Note
Low leakage version suitable for medical applications
Approvals
UL E191581
사양
속성 | 값 |
|---|---|
| Maximum Current Rating | 12A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | RES60 |
| Number of Stages | Multi Stage |
| Operating Frequency | DC → 400Hz |
| Length | 85mm |
| Depth | 52mm |
| Height | 29.5mm |
| Capacitance | 9.4 nF, 940nF |
| Inductance | 1.16 mH |
| Dimensions | 85 x 52 x 29.5mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.74 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 470kΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
