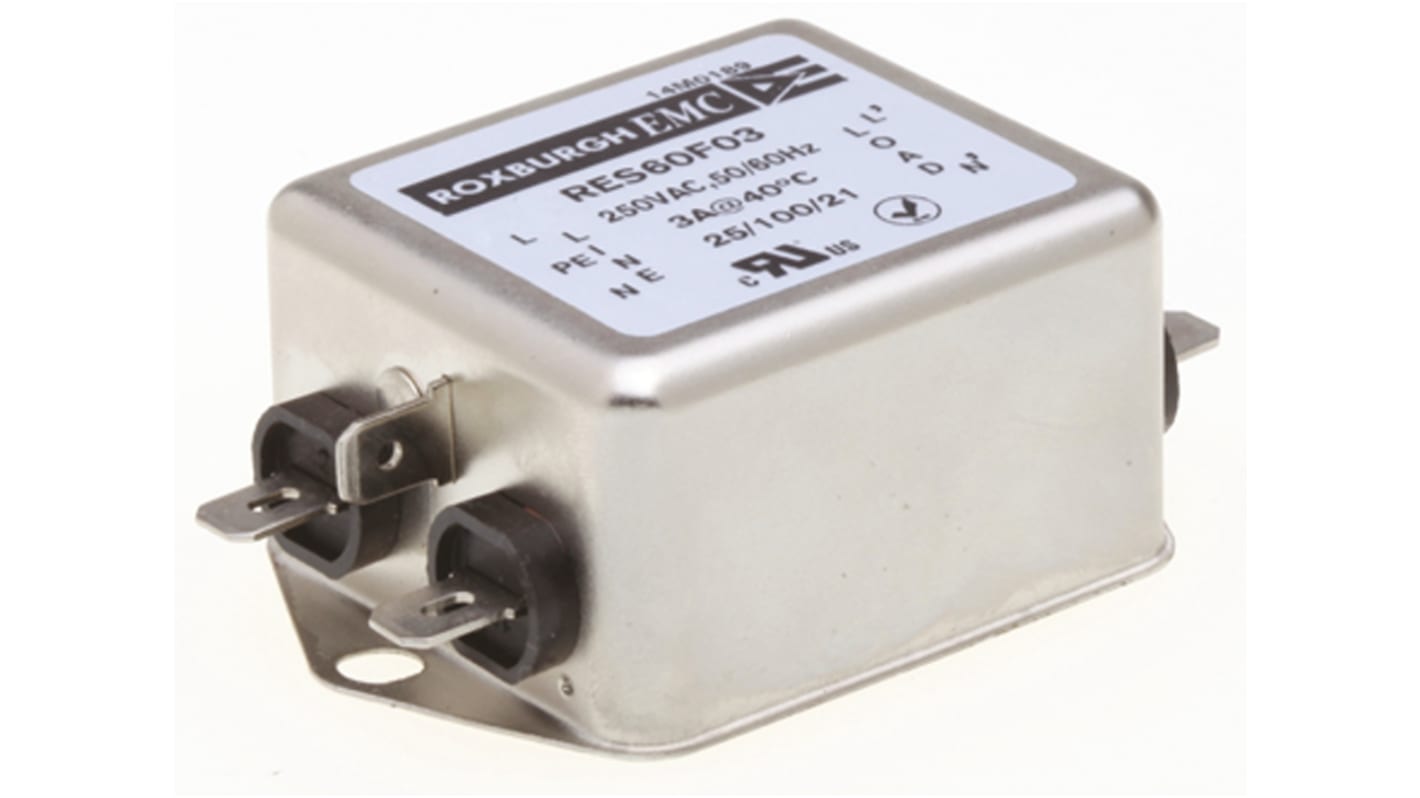

Roxburgh EMC, RES60 3A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On, Single Phase

모든 Power Line Filters 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩30,662.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 359 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩30,662.80
5 - 9₩30,042.40
10 +₩29,440.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
806-8174
제조사 부품 번호:
RES60F03
제조업체:
Roxburgh EMC
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Roxburgh EMC

Maximum Current Rating

3A

Maximum Voltage Rating

250 V ac

Mounting Type

Chassis Mount

Termination Style

Fast-On

Number of Phases

1

Number of Stages

Multi Stage

Series

RES60

Operating Frequency

DC → 400Hz

Length

71mm

Depth

45mm

Capacitance

9.4 nF, 440nF

Height

29mm

Dimensions

71 x 45 x 29mm

Inductance

5 mH

Leakage Current

0.74 mA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+100°C

Resistance

1MΩ

Standards Met

CSA 22.2 No. 8, UL 1283

COO (Country of Origin):
IN

Roxburgh EMC RES60 Series


Roxburgh EMC RES60 series of multi-stage, single phase EMC filters featuring high differential and high common mode attenuation. The RES60 series is designed for use in general purpose applications where increased RFI noise is present, including: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation

Multi-stage
High differential and high common mode attenuation
For use from DC to 400Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting

Note

Low leakage version suitable for medical applications

Approvals

UL E191581
