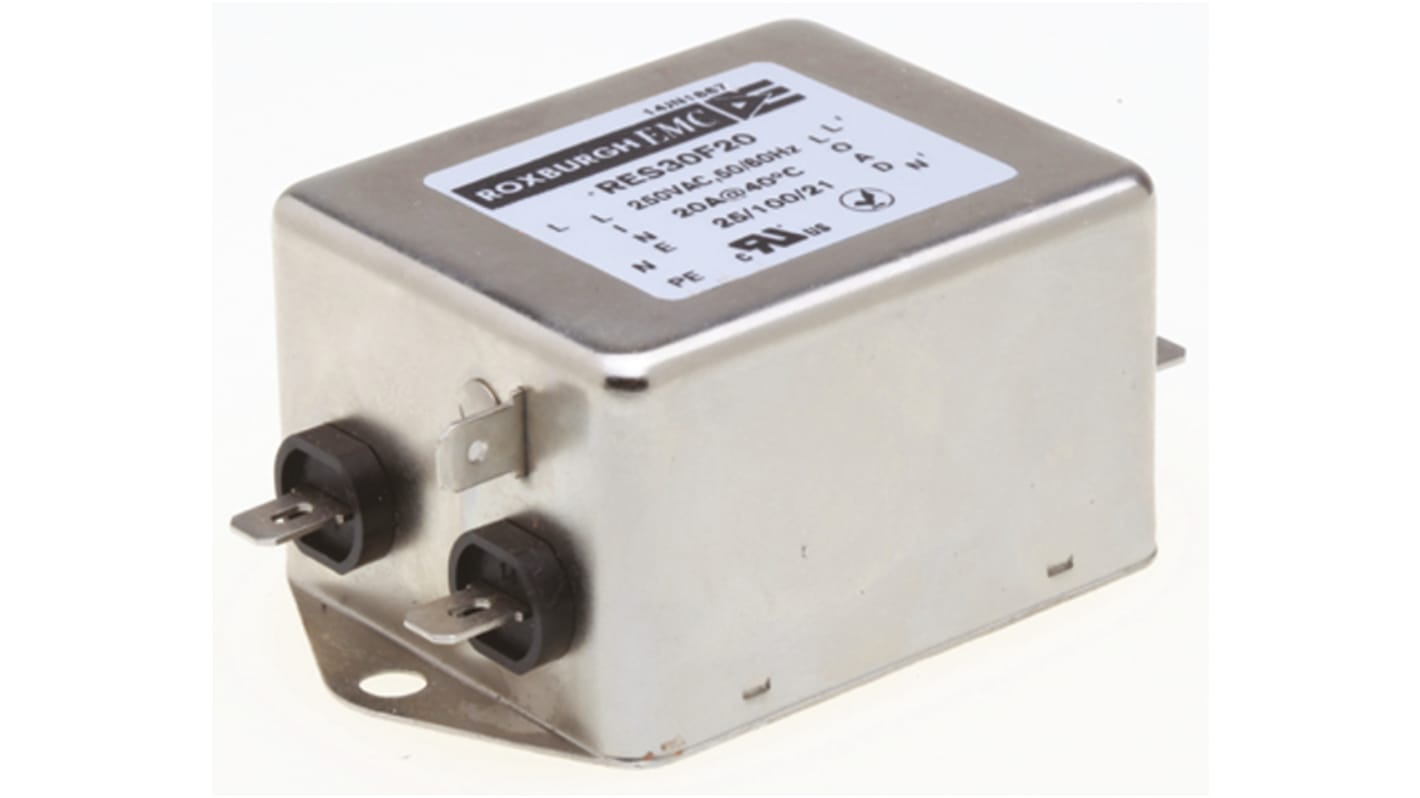

Roxburgh EMC, RES30 20A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On, Single Phase
- RS 제품 번호:
- 806-8177
- 제조사 부품 번호:
- RES30F20
- 제조업체:
- Roxburgh EMC
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩77,061.20
일시적 품절
- 2025년 12월 22일 부터 10 개 단위 배송
- 추가로 2026년 2월 02일 부터 30 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩77,061.20 |
| 5 - 9 | ₩75,369.20 |
| 10 + | ₩73,038.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 806-8177
- 제조사 부품 번호:
- RES30F20
- 제조업체:
- Roxburgh EMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Roxburgh EMC | |
| Maximum Current Rating | 20A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Series | RES30 | |
| Operating Frequency | DC → 400Hz | |
| Length | 85mm | |
| Depth | 52mm | |
| Capacitance | 20 μF, 330nF | |
| Height | 38mm | |
| Inductance | 4 mH | |
| Dimensions | 85 x 52 x 38mm | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 0.87 mA | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 330kΩ | |
| Standards Met | CSA 22.2 No. 8, UL 1283 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Roxburgh EMC | ||
Maximum Current Rating 20A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Series RES30 | ||
Operating Frequency DC → 400Hz | ||
Length 85mm | ||
Depth 52mm | ||
Capacitance 20 μF, 330nF | ||
Height 38mm | ||
Inductance 4 mH | ||
Dimensions 85 x 52 x 38mm | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 0.87 mA | ||
Maximum Operating Temperature +85°C | ||
Resistance 330kΩ | ||
Standards Met CSA 22.2 No. 8, UL 1283 | ||
Roxburgh EMC RES30 Series
Roxburgh EMC RES30 series single phase filters featuring high differential mode attenuation and excellent high frequency attenuation. The RES30 series are designed for use in general purpose filtering applications including: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation
Single phase high differential and high performance attenuation
1 Amp to 30 Amp
Compact size for rated current
Fast-on, solder or wire terminations
Quick and easy chassis mounting
1 Amp to 30 Amp
Compact size for rated current
Fast-on, solder or wire terminations
Quick and easy chassis mounting
Note
Low leakage version suitable for medical applications
Approvals
UL E191581
