RS PRO 10A 240 V ac 50/60Hz, Chassis Mount RFI Filter, Fast-On
- RS 제품 번호:
- 206-7904
- 제조업체:
- RS PRO
가격 개당**
₩555,773.40
42 <재고있음> 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 49 | ₩555,773.40 |
| 50 - 99 | ₩533,551.20 |
| 100 - 199 | ₩513,331.00 |
| 200 - 999 | ₩500,190.60 |
| 1000 + | ₩411,665.80 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 206-7904
- 제조업체:
- RS PRO
해당 안됨
- COO (Country of Origin):
- GB

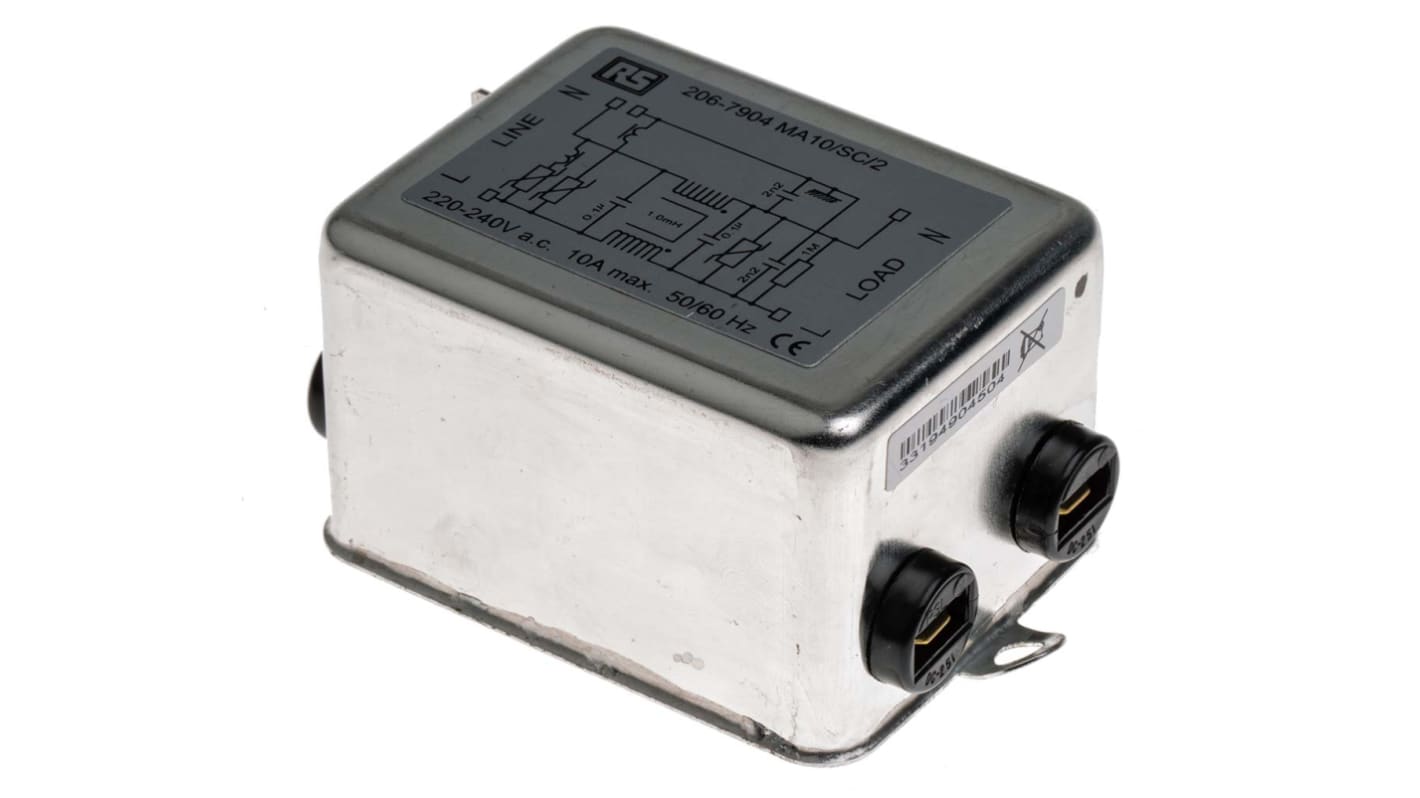

RS PRO 10 A 240 V DC 50/60 Hz, Chassis Mount RFI Filter, Fast-On
This RFI filter is a compact component that can be connected to electrical devices to prevent external radio frequencies (RFI) from impairing performance. It’s part of our tried and tested RS PRO range.
This self-contained RFI filter significantly reduces the amount of conducted frequencies between your equipment and the connecting power line. RFI can cause permanent damage to electronic circuits, so filtering them out is crucial to prolong the working life of your devices. The filter also protects against transient voltage spikes, which can result from power outages, short circuits and nearby lightning strikes. The filter has a handy push-on chassis mount, so it can be easily connected to your equipment’s circuit boards.
Preventing interference ensures equipment runs safely and reliably, even when exposed to unpredictable electromagnetic environments. This RFI filter is a great way to ensure that sensitive electronics, such as medical and industrial equipment, are well protected.
This self-contained RFI filter significantly reduces the amount of conducted frequencies between your equipment and the connecting power line. RFI can cause permanent damage to electronic circuits, so filtering them out is crucial to prolong the working life of your devices. The filter also protects against transient voltage spikes, which can result from power outages, short circuits and nearby lightning strikes. The filter has a handy push-on chassis mount, so it can be easily connected to your equipment’s circuit boards.
Preventing interference ensures equipment runs safely and reliably, even when exposed to unpredictable electromagnetic environments. This RFI filter is a great way to ensure that sensitive electronics, such as medical and industrial equipment, are well protected.
Features and Benefits
• Operating frequency of 50/60 Hz (Hertz)
• Maximum voltage rating of 240 V DC
• Maximum current rating of 10 A (amperes)
• Current leakage of >
• Maximum voltage rating of 240 V DC
• Maximum current rating of 10 A (amperes)
• Current leakage of >
0.3 mA (milliamperes)
• Three stages
• Fast-on termination style
• Chassis mount type
• 85 mm (length) x 52 mm (depth) x 40 mm (height)
• Operating temperature range of -25°C to +85°C
• Three stages
• Fast-on termination style
• Chassis mount type
• 85 mm (length) x 52 mm (depth) x 40 mm (height)
• Operating temperature range of -25°C to +85°C
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
속성 | 값 |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 240 V dc |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Series | MA05/10 |
| Number of Stages | Three Stage |
| Operating Frequency | 50/60Hz |
| Length | 85mm |
| Depth | 52mm |
| Height | 40mm |
| Dimensions | 85 x 52 x 40mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | >0.3 mA |
| Maximum Operating Temperature | +85°C |
