Infineon ICE3PCS01GXUMA1, Power Factor Controller IC 250 kHz 14-Pin, DSO 25V

RS 제품 번호:: 110-7782
Distrelec 제품 번호:: 304-30-524
제조사 부품 번호:: ICE3PCS01GXUMA1
제조업체:: Infineon

Infineon ICE3PCS01GXUMA1, Power Factor Controller IC 250 kHz 14-Pin, DSO 25V

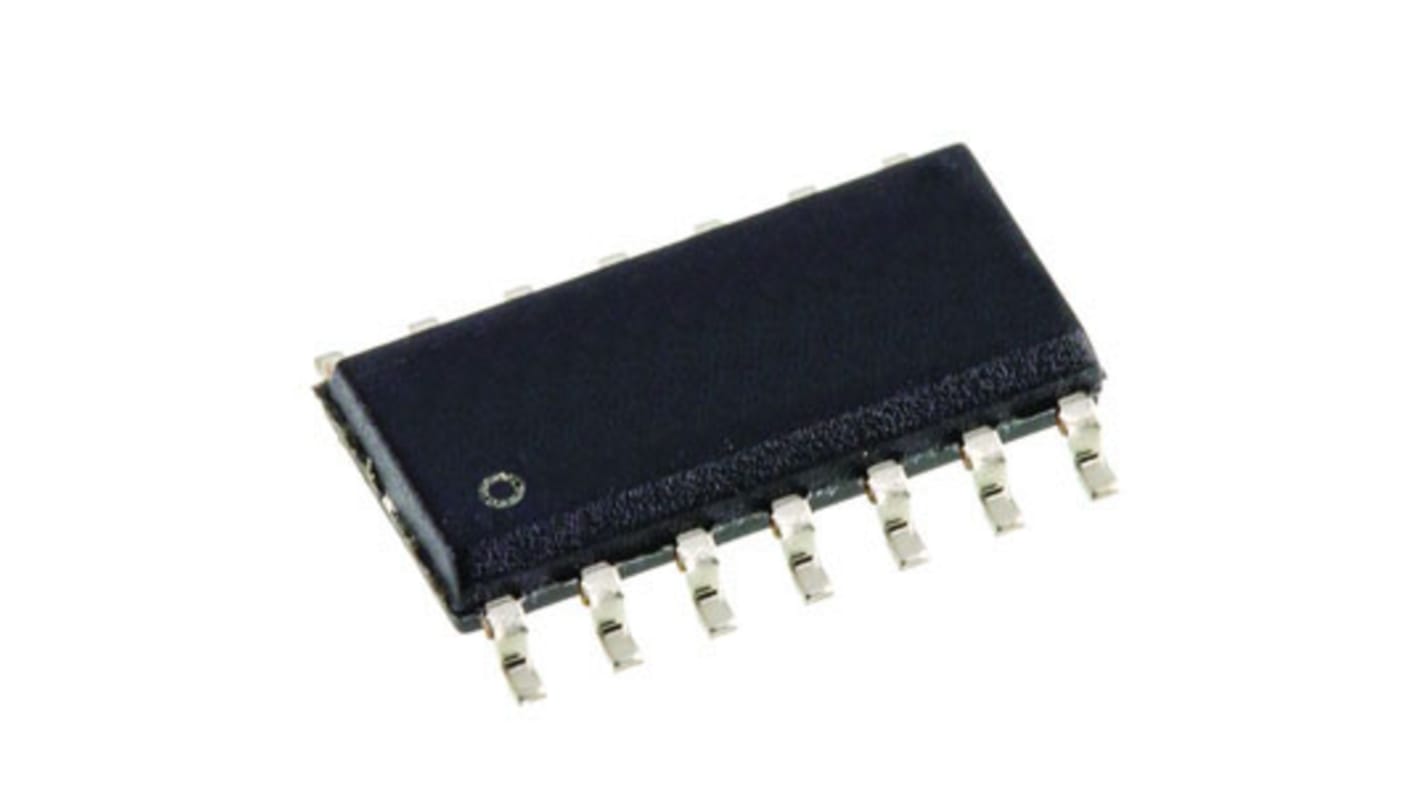

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 pack of 10 units)*

₩16,320.00

90 개 단위 배송 준비 완료
추가로 2026년 8월 13일 부터 9,030 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
10 +	₩1,632.00	₩16,320.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 110-7782
Distrelec 제품 번호:: 304-30-524
제조사 부품 번호:: ICE3PCS01GXUMA1
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Product Type	Power Factor Controller IC
	Start-up Supply Current	2.4mA
	Maximum Source Current	-6mA
	Sub Type	Power Factor Controller
	Switching Frequency	250kHz
	Zero Power Detection	No
	Mount Type	Surface
	Package Type	DSO
	Pin Count	14
	Minimum Supply Voltage	-0.3V
	Maximum Supply Voltage	25V
	Minimum Operating Temperature	-40°C
	Series	IC
	Length	8.75mm
	Height	1.5mm
	Standards/Approvals	No
	Maximum Operating Temperature	150°C
	Automotive Standard	No

	모두 선택
	브랜드 Infineon
	Product Type Power Factor Controller IC
	Start-up Supply Current 2.4mA
	Maximum Source Current -6mA
	Sub Type Power Factor Controller
	Switching Frequency 250kHz
	Zero Power Detection No
	Mount Type Surface
	Package Type DSO
	Pin Count 14
	Minimum Supply Voltage -0.3V
	Maximum Supply Voltage 25V
	Minimum Operating Temperature -40°C
	Series IC
	Length 8.75mm
	Height 1.5mm
	Standards/Approvals No
	Maximum Operating Temperature 150°C
	Automotive Standard No

Infineon Series IC Power Factor Controller IC, 250kHz Switching Frequency, 14 Pin Count - ICE3PCS01GXUMA1

This power-factor controller IC is a surface-mount device designed to manage power-factor correction in electronic power supplies. It operates across a wide temperature range and targets industrial applications that require compact PFC control with low quiescent supply demand and defined switching behaviour.

Features and Benefits:

• Low start-up supply current reduces auxiliary power requirements
• Switching-frequency setpoint enables high-speed PFC operation
• Operates from low to high supply voltages, enhancing design headroom
• Negative source-current capability supports specific gate-drive needs
• Wide operating temperature range allows deployment in harsh environments

Applications

• Suitable for industrial power-supply PFC front ends
• Ideal for high-frequency converter designs requiring compact controllers
• Used with surface-mount power stages on dense assemblies
• Can be used for thermally stable systems in elevated-temperature sites

What are the device pin count and package type for PCB layout?

It is offered in a 14-pin DSO package intended for surface mounting, facilitating dense PCB layouts.

What supply conditions should the designer consider for start-up?

Designers should allow for a start-up supply current of 2.4 mA when sizing auxiliary power and sequencing circuits.

How does thermal capability affect placement near heat sources?

The component is rated to a maximum operating temperature of 150°C and a minimum of -40°C, so placement close to hot components must respect that upper limit for reliable operation.

What switching characteristic is provided for EMI and filtering planning?

The device uses a switching frequency of 250 kHz, which informs inductor selection and EMI filter design.
