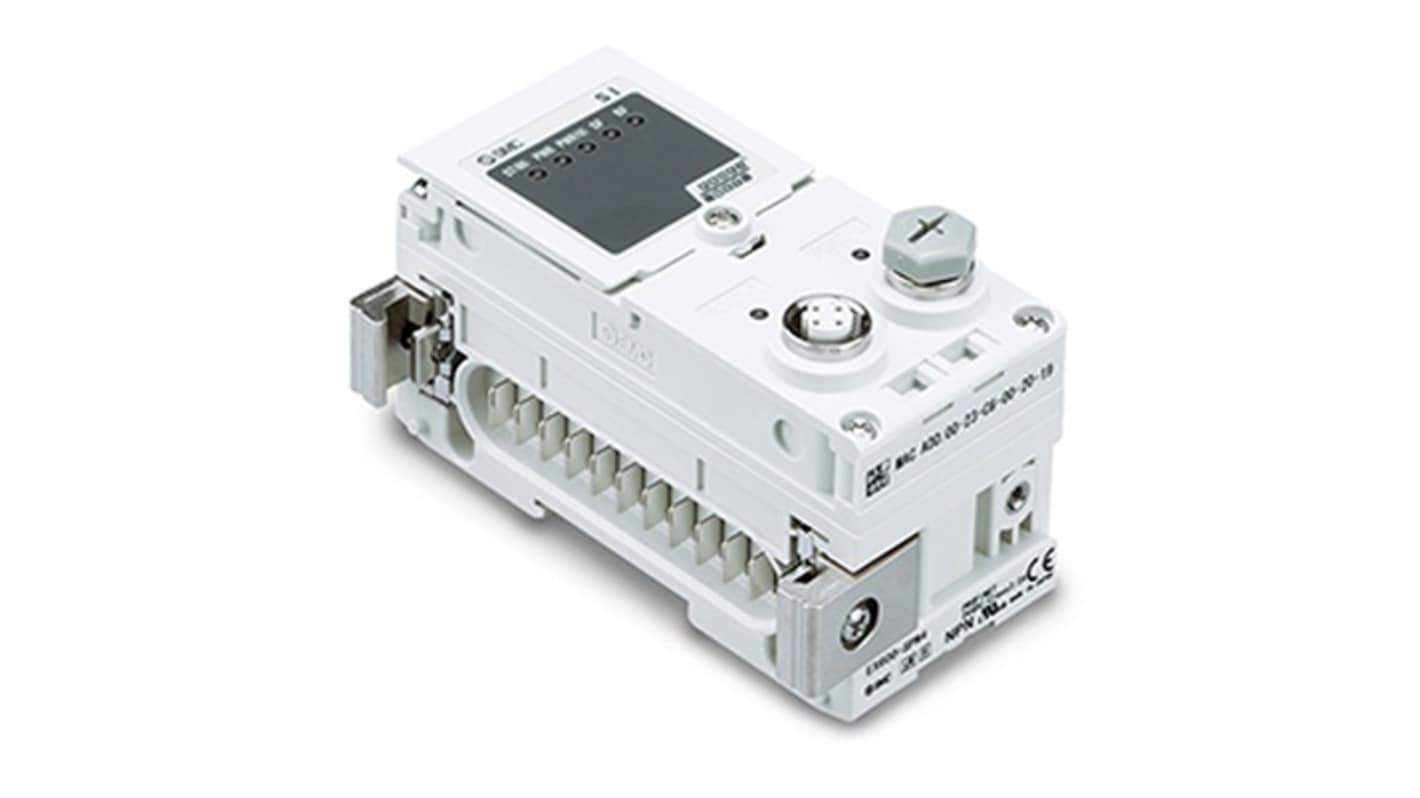

SMC EX600 series 0.7 Mpa Serial Interface
- RS 제품 번호:
- 456-865
- 제조사 부품 번호:
- EX600-SPN3
- 제조업체:
- SMC
Subtotal (1 unit)*
₩1,483,735.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,483,735.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 456-865
- 제조사 부품 번호:
- EX600-SPN3
- 제조업체:
- SMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SMC | |
| Product Type | Serial Interface | |
| Number of Inputs | 16 | |
| Series | EX600 | |
| Minimum Operating Pressure | 0MPa | |
| Voltage | 24V | |
| Display Type | LCD Backlight | |
| Hazardous Area Certification | NO | |
| Number of Outputs | 16 | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +50°C | |
| Height | 90mm | |
| Depth | 61mm | |
| Standards/Approvals | CE, CSA, UL | |
| Width | 35mm | |
| Suitable Medias | Air | |
| Output Type | NPN/PNP | |
| Connection Type | 5-Pin M12 Socket | |
| 모두 선택 | ||
|---|---|---|
브랜드 SMC | ||
Product Type Serial Interface | ||
Number of Inputs 16 | ||
Series EX600 | ||
Minimum Operating Pressure 0MPa | ||
Voltage 24V | ||
Display Type LCD Backlight | ||
Hazardous Area Certification NO | ||
Number of Outputs 16 | ||
Maximum Operating Pressure 0.7 Mpa | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
Height 90mm | ||
Depth 61mm | ||
Standards/Approvals CE, CSA, UL | ||
Width 35mm | ||
Suitable Medias Air | ||
Output Type NPN/PNP | ||
Connection Type 5-Pin M12 Socket | ||
- COO (Country of Origin):
- JP
SMC EX600 Series Serial Interface, 24V Voltage, 16 Inputs - EX600-SPN3
This serial Interface provides a Compact fieldbus connection for industrial automation, enabling communication between control systems and distributed I/O. It is designed to operate with pneumatic systems and conditioned Air media, supplying both input and output signalling for machine control in factory environments. The unit includes a backlit LCD for status indication and connects via a 5‑pin M12 socket suitable for standard industrial cabling.
Features & Benefits
• Supports 16 inputs and 16 outputs for extensive I/O coverage
• Accepts 24V supply to integrate with common control voltages
• NPN/PNP outputs to accommodate varied sensor wiring
• Operates from -10°C to +50°C for typical plant conditions
• Rated maximum operating pressure 0.7MPa for pneumatic compatibility
• Slim 35mm width for space‑efficient panel mounting
• Accepts 24V supply to integrate with common control voltages
• NPN/PNP outputs to accommodate varied sensor wiring
• Operates from -10°C to +50°C for typical plant conditions
• Rated maximum operating pressure 0.7MPa for pneumatic compatibility
• Slim 35mm width for space‑efficient panel mounting
Applications
• Suitable for distributed I/O nodes in automated assembly lines
• Ideal for linking pneumatic valves to PLCs in process plants
• used with sensor arrays requiring mixed NPN and PNP wiring
• Can be used for machine retrofit projects with 24V control systems
• Used for status monitoring where a readable backlit display is needed
• Ideal for linking pneumatic valves to PLCs in process plants
• used with sensor arrays requiring mixed NPN and PNP wiring
• Can be used for machine retrofit projects with 24V control systems
• Used for status monitoring where a readable backlit display is needed
What electrical supply is required for operation?
The unit operates from a 24V supply, matching common industrial control voltages.
How does the Interface handle different sensor output types?
It provides selectable NPN and PNP output compatibility to match varying sensor configurations.
What environmental temperatures can it withstand during service?
It is specified for continuous operation between -10°C and +50°C, suitable for standard factory conditions.
Which physical connector is used for field wiring?
Field connections are MADE via a 5‑pin M12 socket to support industry‑standard cabling.
Is the device suitable for integration with pneumatic systems?
Yes, it is specified for use with Air media and a maximum operating pressure of 0.7MPa.
