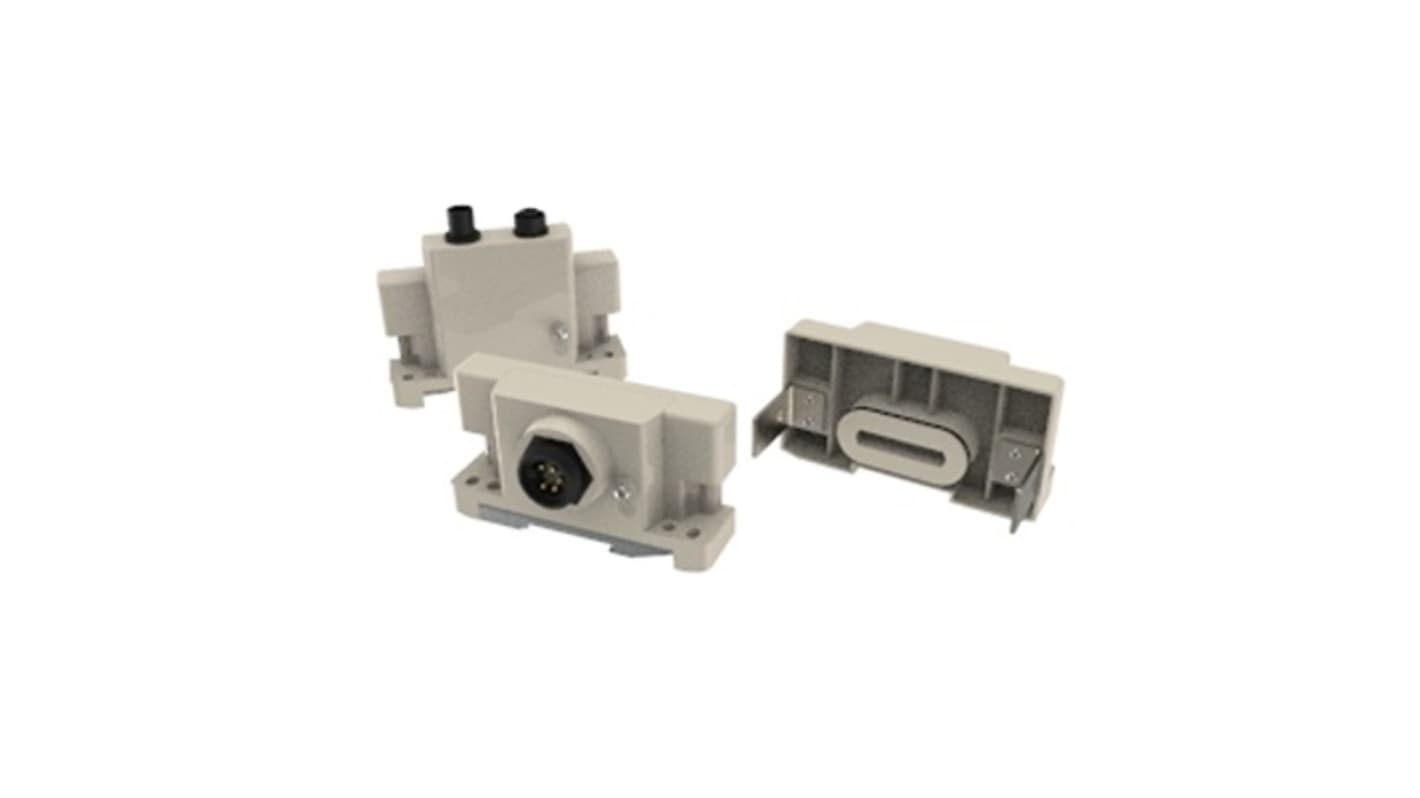

SMC EX600 series 0.7 Mpa Serial Interface
- RS 제품 번호:
- 456-864
- 제조사 부품 번호:
- EX600-ED5
- 제조업체:
- SMC
Subtotal (1 unit)*
₩287,440.00
재고있음
- 추가로 2026년 11월 19일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩287,440.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 456-864
- 제조사 부품 번호:
- EX600-ED5
- 제조업체:
- SMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SMC | |
| Product Type | Serial Interface | |
| Number of Inputs | 16 | |
| Series | EX600 | |
| Minimum Operating Pressure | 0MPa | |
| Voltage | 24V | |
| Display Type | LCD Backlight | |
| Hazardous Area Certification | No | |
| Number of Outputs | 16 | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 35mm | |
| Standards/Approvals | RoHS, CE, IP67, CSA | |
| Depth | 61mm | |
| Height | 90mm | |
| Connection Type | 5-Pin M12 Socket | |
| Suitable Medias | Air | |
| Output Type | NPN/PNP | |
| 모두 선택 | ||
|---|---|---|
브랜드 SMC | ||
Product Type Serial Interface | ||
Number of Inputs 16 | ||
Series EX600 | ||
Minimum Operating Pressure 0MPa | ||
Voltage 24V | ||
Display Type LCD Backlight | ||
Hazardous Area Certification No | ||
Number of Outputs 16 | ||
Maximum Operating Pressure 0.7 Mpa | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Width 35mm | ||
Standards/Approvals RoHS, CE, IP67, CSA | ||
Depth 61mm | ||
Height 90mm | ||
Connection Type 5-Pin M12 Socket | ||
Suitable Medias Air | ||
Output Type NPN/PNP | ||
- COO (Country of Origin):
- JP
SMC EX600 Series Serial Interface, 24V Voltage, 16 Inputs - EX600-ED5
This serial Interface is designed to provide compact, reliable fieldbus connectivity for pneumatic control and general automation tasks. It combines input/output handling with a user-viewable status panel and is intended for non-hazardous industrial settings where Air is the process medium and a 24V supply is available.
Features & Benefits
• 16 inputs deliver extensive signal monitoring capability
• 16 outputs support mixed NPN and PNP load switching
• LCD backlight offers clear status visibility in dim environments
• 5-pin M12 socket enables secure industrial cabling
• Operates from -10°C to +50°C for standard plant conditions
• Rated to 0.7MPa for pneumatic Interface applications
• 16 outputs support mixed NPN and PNP load switching
• LCD backlight offers clear status visibility in dim environments
• 5-pin M12 socket enables secure industrial cabling
• Operates from -10°C to +50°C for standard plant conditions
• Rated to 0.7MPa for pneumatic Interface applications
Applications
• Suitable for valve control in pneumatic systems using Air
• Ideal for distributed I/O in factory automation networks
• used with PLCs requiring mixed NPN/PNP signalling at 24V
• Can be used for remote I/O panels in conveyor control
• Suitable for machine I/O expansion where a Compact footprint is needed
• Ideal for distributed I/O in factory automation networks
• used with PLCs requiring mixed NPN/PNP signalling at 24V
• Can be used for remote I/O panels in conveyor control
• Suitable for machine I/O expansion where a Compact footprint is needed
What power requirements must I provide for operation?
It requires a 24V supply compatible with industrial control systems and should be connected in accordance with system earthing practices.
How does the unit connect to sensors and actuators?
Signals are wired to the 16 discrete input and 16 discrete output channels, with outputs configurable for NPN or PNP polarities.
Can it be installed outdoors or in harsh conditions?
Environmental limits are -10°C minimum and +50°C maximum, so placement should avoid temperatures outside this range.
What mechanical space should be allocated for mounting?
Allow room for a Compact module with a width of 35mm, height of 90mm and a depth of 61mm to accommodate cabling and cooling.
