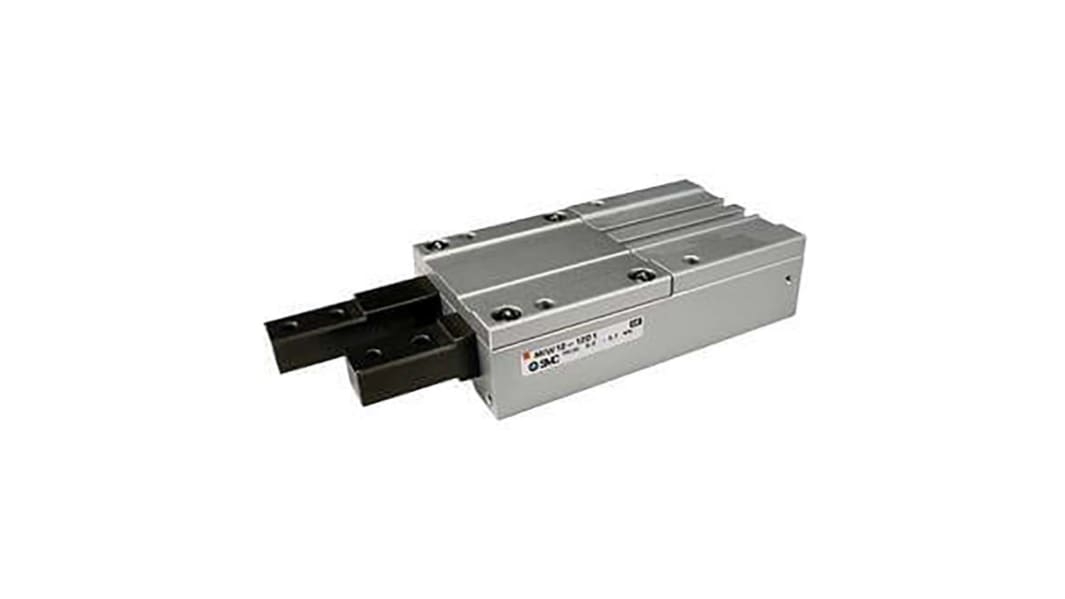

SMC 2 Finger Double Acting Action Pneumatic Gripper, MIW12-12D
- RS 제품 번호:
- 196-4480
- 제조사 부품 번호:
- MIW12-12D
- 제조업체:
- SMC
Subtotal (1 unit)*
₩621,280.00
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩621,280.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 196-4480
- 제조사 부품 번호:
- MIW12-12D
- 제조업체:
- SMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SMC | |
| Product Type | Pneumatic Gripper | |
| Bore Diameter | 12mm | |
| Number of Fingers | 2 | |
| Action Type | Double Acting | |
| Stroke Length | 12mm | |
| Series | MIW | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Weight | 240g | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Width | 21mm | |
| Height | 111mm | |
| Length | 44mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SMC | ||
Product Type Pneumatic Gripper | ||
Bore Diameter 12mm | ||
Number of Fingers 2 | ||
Action Type Double Acting | ||
Stroke Length 12mm | ||
Series MIW | ||
Maximum Operating Pressure 0.7 Mpa | ||
Weight 240g | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Width 21mm | ||
Height 111mm | ||
Length 44mm | ||
- COO (Country of Origin):
- JP
Bore sizes: 8, 12, 20, 25, 32 mm
Stroke lengths: 10, 20, 30, 50 mm
Scraper option
Stroke adjuster option
Auto-switch capable
