대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩115,280.00
재고있음
- 11 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 12 | ₩115,280.00 |
| 13 - 24 | ₩110,660.00 |
| 25 + | ₩108,360.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 174-1238
- 제조사 부품 번호:
- UCP208-J7
- 제조업체:
- FAG
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | FAG | |
| Inside Diameter | 40mm | |
| Product Type | Plummer Block House | |
| Material | Cast Iron | |
| Centre Height | 49.2mm | |
| Mount Hole Size | 21 mm | |
| Length | 184mm | |
| Depth | 54mm | |
| Mount Hole Centre-to-Centre | 137mm | |
| Height | 98mm | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 FAG | ||
Inside Diameter 40mm | ||
Product Type Plummer Block House | ||
Material Cast Iron | ||
Centre Height 49.2mm | ||
Mount Hole Size 21 mm | ||
Length 184mm | ||
Depth 54mm | ||
Mount Hole Centre-to-Centre 137mm | ||
Height 98mm | ||
Standards/Approvals No | ||

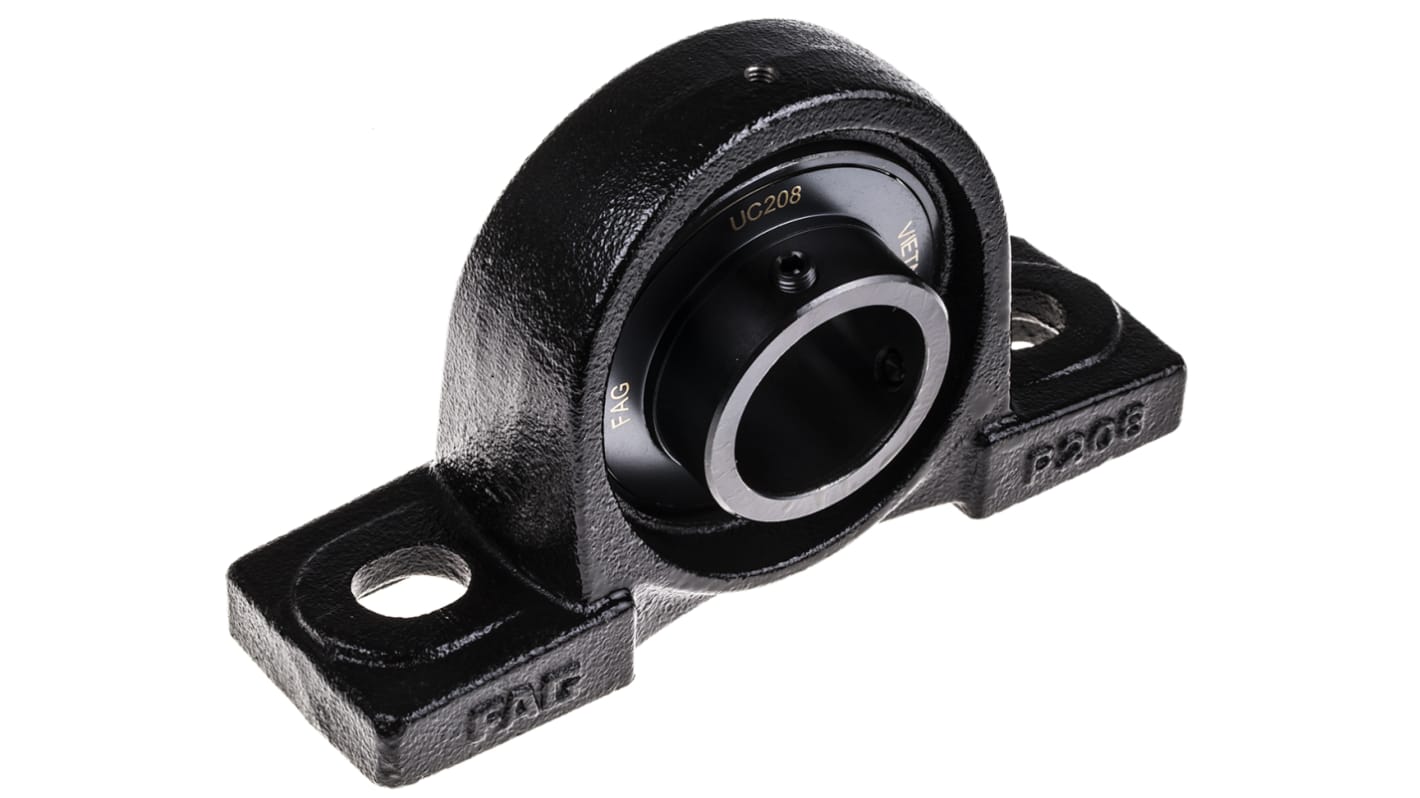

Schaeffler UCP208-J7 Plummer Block House, 40mm Inside Diameter, 49.2mm Centre Height - UCP208-J7
This plummer block house is designed for heavy-duty applications and offers a robust solution for mounting bearings in various machinery. The product features a bore diameter of 40mm and an overall length of 184mm. Constructed from cast iron, the unit ensures durability and reliability while accommodating radial insert ball bearings, making it ideal for demanding environments.
Features & Benefits
• Heavy-duty cast iron construction resists wear and corrosion
• Designed for easy installation with a mounting hole size of 21mm
• Normal swivel torque accommodates various operational needs
• Integrated RSR seals extend bearing lifespan and performance
• Stable performance with a centre height of 49.2mm
• Lightweight design at approximately 1.96kg for ease of mounting
Applications
• Used with radial insert ball bearings in industrial machinery
• Suitable for automation and mechanical engineering
• Ideal for environments requiring consistent operational temperatures
• Effective for heavy-duty bearing unit requirements in production lines
What is the operating temperature range for this unit?
The unit operates effectively in temperatures ranging from -20°C to 120°C, making it suitable for diverse environments.
How does the design ensure proper lubrication?
The plummer block includes an M6 connection thread specifically for lubrication, which helps maintain optimal performance and longevity.
What installations benefit most from this heavy-duty design?
The robust design is particularly beneficial in applications where durability and resistance against harsh conditions are crucial, such as in factories or production facilities.
Can it accommodate varying machinery configurations?
Yes, the normal swivel torque allows it to adapt to different configurations, providing flexibility across applications.
What should I consider when installing this component?
Ensure that the fixing bore distance of 137mm aligns with your machine setup to guarantee secure installation.
