RS PRO CTB9209 Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 10 units)*

₩11,280.00

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량
한팩당
한팩당*
10 - 90₩1,128.00₩11,280.00
100 - 490₩1,096.04₩10,960.40
500 +₩902.40₩9,024.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
897-1219
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Number of Contacts

2

Product Type

Pluggable Terminal Block

Pitch

5.08mm

Current

15A

Number of Rows

1

Minimum Wire Size mm²

0.33mm²

Housing Material

Polyamide

Connector Gender

Female

Maximum Wire Size mm²

2mm²

Orientation

Right Angle

Colour

Green

Wire Connection Method

Screw

Voltage

300 V

Length

10.2mm

Width

17.7 mm

Depth

15mm

Series

CTB9209

Standards/Approvals

UL94-V0, cURus

COO (Country of Origin):
CN

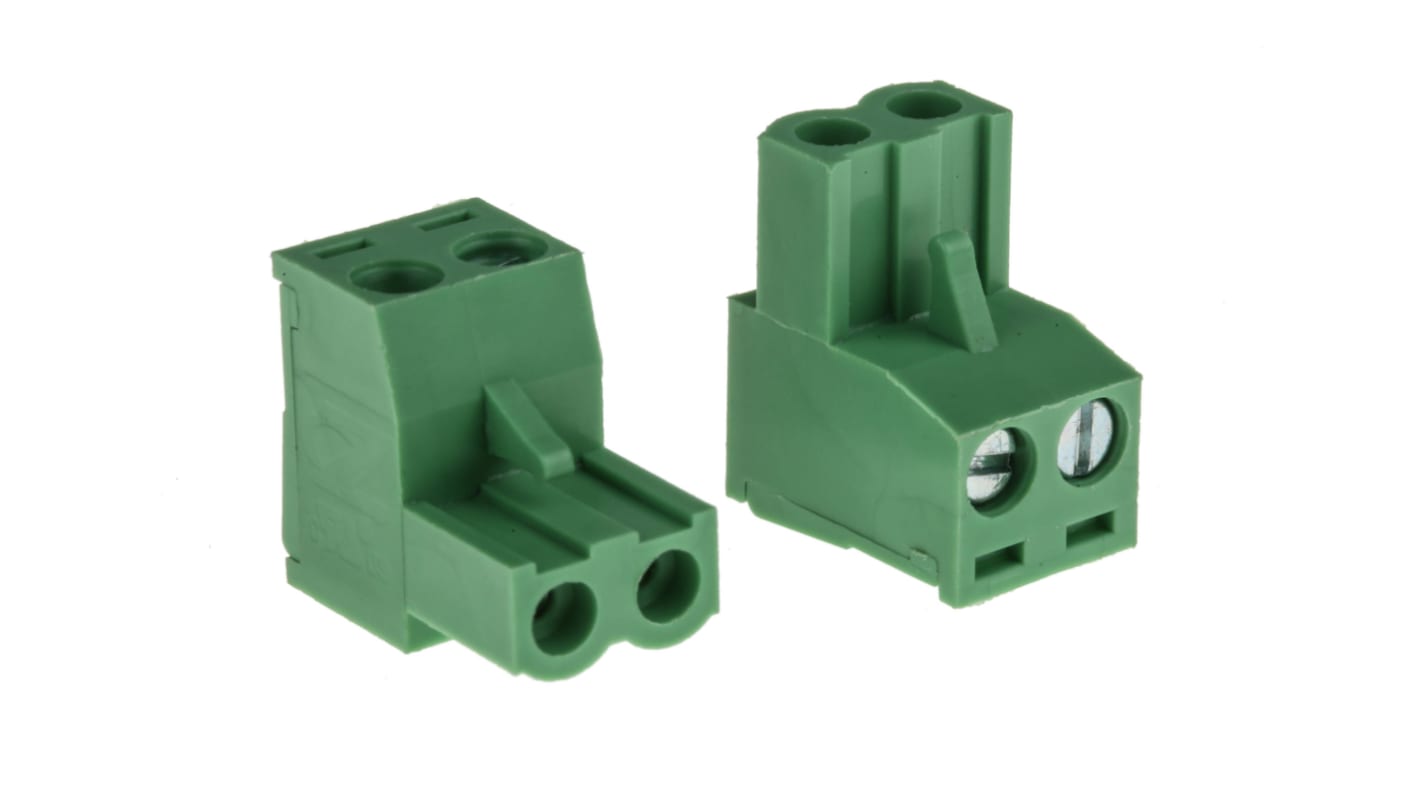

RS 5.08mm Rising Clamp Terminal Block Plug Connector


Our own range of RS Pro brings you high-quality PCB terminal blocks that feature a 5.08mm pitch. They’re constructed from green polarised mouldings that uphold flame retardant UL94-V0 PA66. These 5.08mm terminal blocks have tin plated brass terminals with a M2.5 captive screws for a stable connection. They support cable sizes in the range of 0.33-2mm², either solid or stranded and have a guided pin alignment.

These terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make ideal use as permanent solution however can be used in temporary circuitry.

Features and Benefits:


• 5.08mm pitch

• High quality build materials

• Polarised mouldings in green UL94-V0 flame retardant PA66

• Captive screws

• Guided pin alignment

• Operating temperatures of -40°c to +105°c

These connectors use a M2.5 slotted (L) screw. If you need a screwdriver, check out “125-3078”
