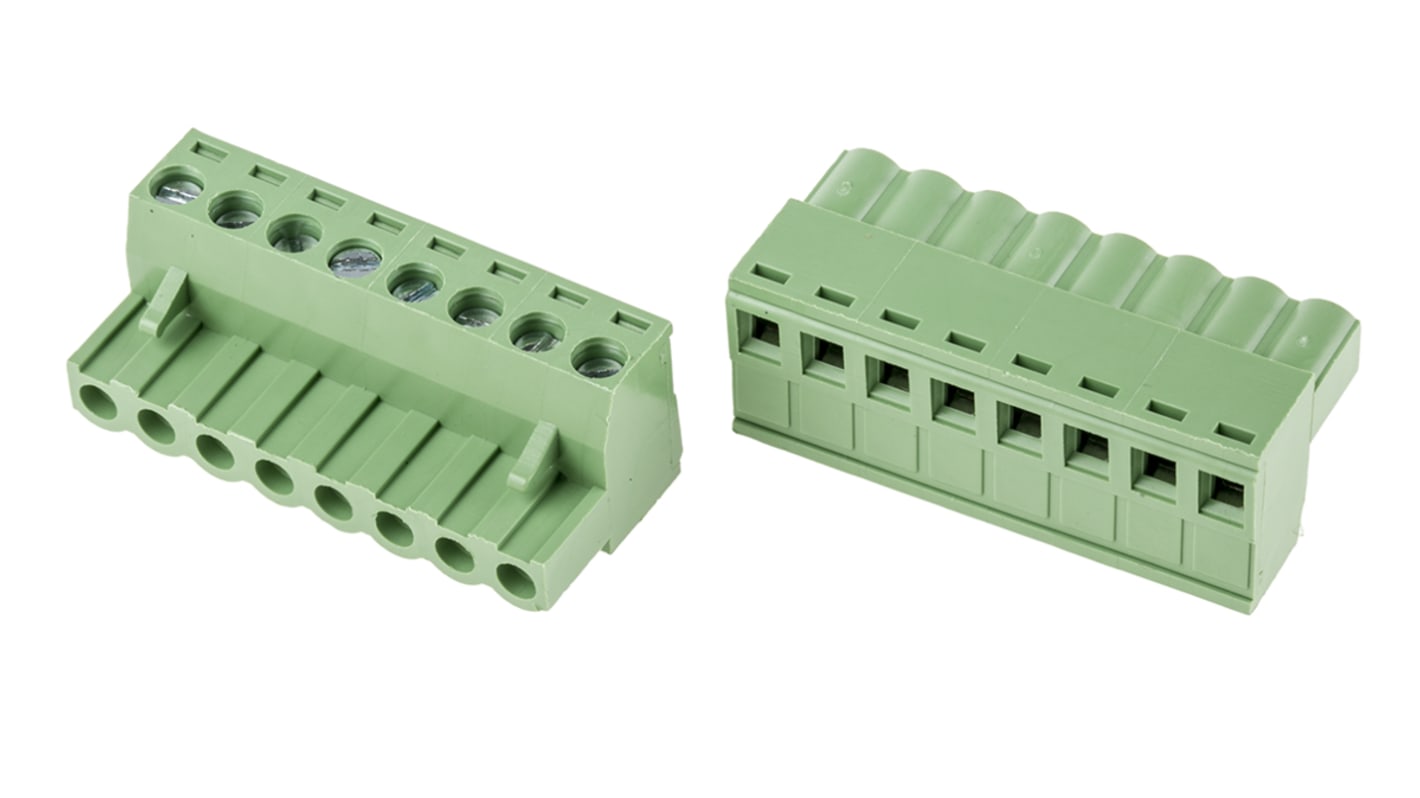

RS PRO, 5mm Pitch, 8 Way, Right Angle, Pluggable Terminal Block, Plug, Through Hole, Screw Termination

대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩17,653.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 290 개 단위 배송 준비 완료
  • 추가로 2025년 12월 31일 부터 500 개 단위 배송
  • 추가로 2026년 2월 25일 부터 500 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
5 - 20₩3,530.64₩17,653.20
25 +₩2,906.48₩14,532.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
897-1171
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Pluggable Terminal Block Type

Plug

Number of Contacts

8

Pitch

5mm

Number of Rows

1

Body Orientation

Right Angle

Mounting Type

Through Hole

Termination Method

Screw

Current Rating

15A

Voltage Rating

300 V

Colour

Green

Material

Polyamide

COO (Country of Origin):
CN

RS 5.0mm Rising Clamp Terminal Block Plug Connectors


5mm pitch pluggable female terminal block connectors with professional rising clamp terminals and housings made from green UL94-V0 flame retardant PA with polarised mouldings. These 5mm terminal block plug connectors have captive screws and accept solid and stranded cable with a wire size range of 0.2-2.5mm2 (24-12 AWG). For headers see stock numbers 897-1183 and 897-1367 typically.
