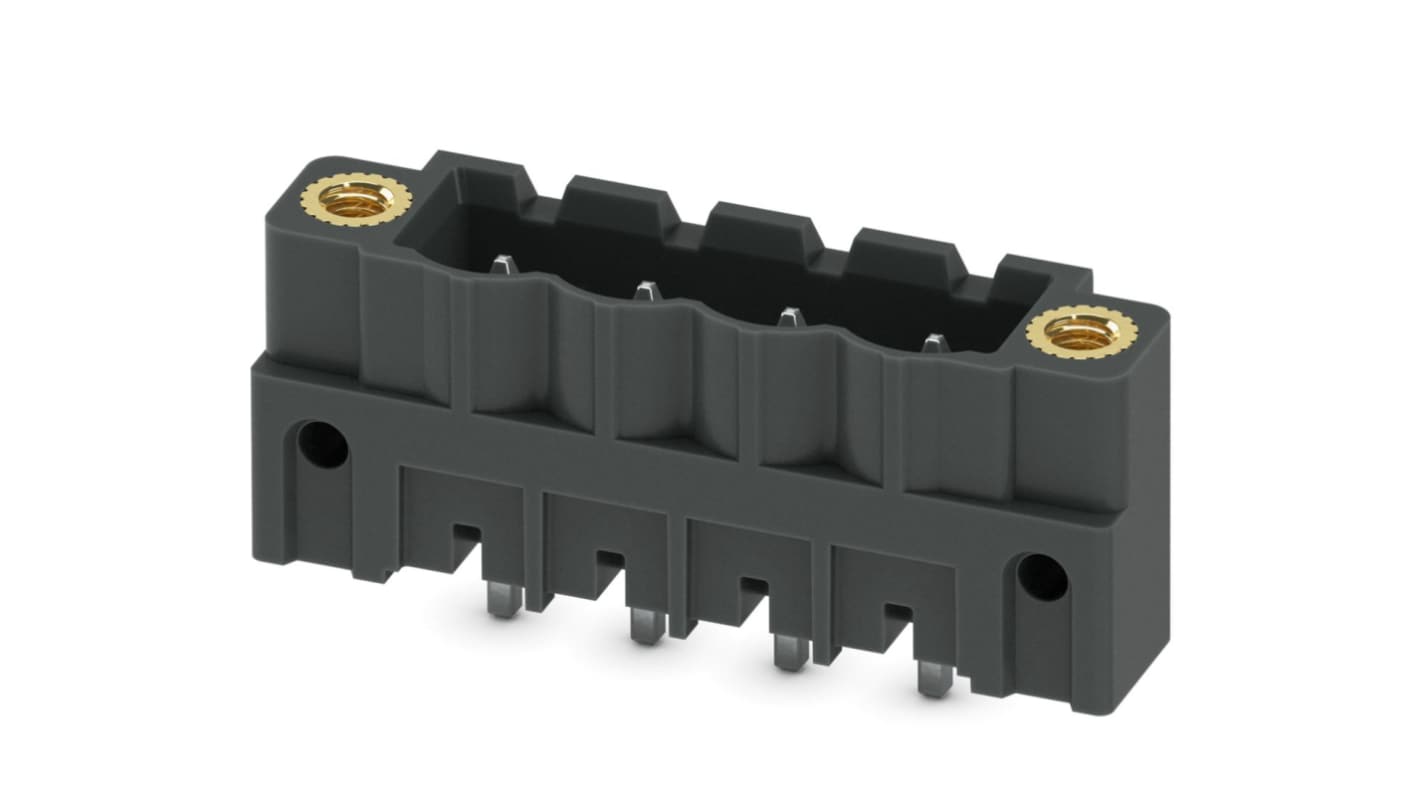

Phoenix Contact, 5.08mm Pitch, CCV 2.5/ 4-GF-5.08 P26THR, 4 Way, , Pluggable Terminal Block, Header, Through Hole,

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 box of 50 units)*

₩276,548.00

Add to Basket
Select or type quantity
일시적 품절
  • 2026년 3월 20일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units
Per unit
Per Box*
50 - 200₩5,530.96₩276,566.80
250 +₩4,978.24₩248,912.00

*price indicative

RS Stock No.:
859-3844
Mfr. Part No.:
1955659
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

브랜드

Phoenix Contact

Pluggable Terminal Block Type

Header

Number of Contacts

4

Pitch

5.08mm

Series

CCV 2.5/ 4-GF-5.08 P26THR

Number of Rows

1

Body Orientation

Straight

Mounting Type

Through Hole

Termination Method

Solder

Current Rating

12.0A

Voltage Rating

400.0 V

Contact Material

Tin

COO (Country of Origin):
DE
PCB headers, nominal cross section: 2.5 mm², color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 4, Number of rows: 1, Number of positions per row: 4, number of connections: 4, product range: CCV 2,5/..-GF, pitch: 5.08 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, Stecksystem: CLASSIC COMBICON, Locking: Screw locking, type of packaging: packed in cardboard, User information and design recommendations for through hole reflow technology can be found under: Downloads
