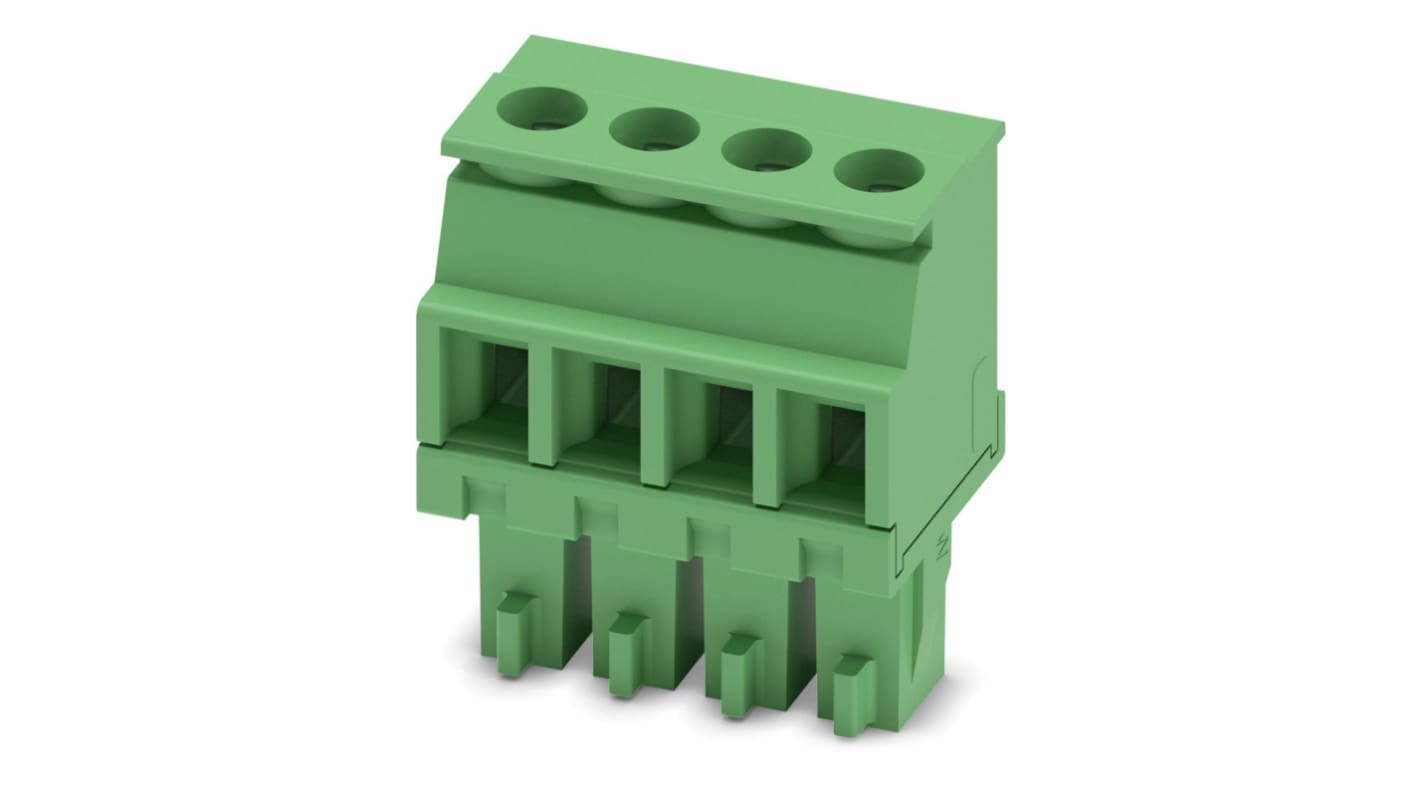

Phoenix Contact MCVR 1.5/4-ST-3.81 Series Pluggable Terminal Block, 4-Contact, 3.81 mm Pitch, 1 Row

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩5,771.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 45 개 단위 배송 준비 완료
  • 추가로 2026년 3월 30일 부터 250 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 62₩5,771.60
63 - 124₩5,640.00
125 +₩5,527.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
804-2484
제조사 부품 번호:
1827143
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Pluggable Terminal Block

Number of Contacts

4

Pitch

3.81mm

Number of Rows

1

Current

8A

Minimum Wire Size mm²

0.14mm²

Housing Material

Polyamide

Maximum Wire Size mm²

1.5mm²

Connector Gender

Female

Minimum Wire Size AWG

28 AWG

Maximum Wire Size AWG

16 AWG

Orientation

Straight

Colour

Green

Wire Connection Method

Screw Connection with Tension Sleeve

Voltage

160 V

Series

MCVR 1.5/4-ST-3.81

Width

10.4 mm

Depth

19.1mm

Length

16.03mm

Standards/Approvals

No

COO (Country of Origin):
DE

Phoenix Contact PCB Header, 320V Voltage Rating,16.03 (L) x 10.4 (W) x 19.1mm (D) - MCVR 1,5/ 4-ST-3,81 - 1827143


Get your circuit board well connected with this PCB header from Phoenix Contact. It's a single-row type with four contacts, so you'll find it a breeze to attach multiple conductors to your board. The highly conductive copper alloy contacts deliver stable current transmission to keep work flowing efficiently. These contacts come with a robust tin coating that resists corrosion, which means they hold their own in harsh conditions.

Attaching your wires is the work of moments thanks to the screw connection points. The component's 25 insertion and withdrawal cycles mean you can remove and add your cables several times without wearing out the contacts. Because of its Compact dimensions of 16.03 (L) x 10.4 (W) x 19.1mm (D), it's a Cinch to fit this unit onto a small PCB. And due to its tough polyamide body, it can stand the heat in demanding environments.

Features & Benefits


• Compatible with wire sizes ranging from 28 to 16AWG for versatility

• Integrated tension sleeve helps prevent accidental detachment in vibrating conditions

• Flammability rating of UL 94 V0 indicates it stops burning in 10 seconds, to minimise the spread of fire

Phoenix Contact MINI COMBICON MCVR & MCVW 3.81mm Plug-In Terminal Block Connectors


MINI COMBICON MCVR & MCVW 3.81mm pitch cable mount plug-in Terminal Block connectors with a 0.14 - 1.5mm2 screw connection and 90° plug-in direction.

MCVR series Terminal Block connectors (part numbers prefixed with 18271, 18272, 18283, 18284) have the conductor entry facing the coding side. Part numbers prefixed with 18283, 18284 also have a screw flange.

MCVW series Terminal Block connectors (part numbers prefixed 18269, 18270, 18271, 18284, 18285, 18286) have the conductor entry facing the rippled side. Part numbers prefixed with 18284, 18285, 18286 also have a screw flange.

For marker label see stock number 648-5508

For screwdriver see stock number 390-9663
