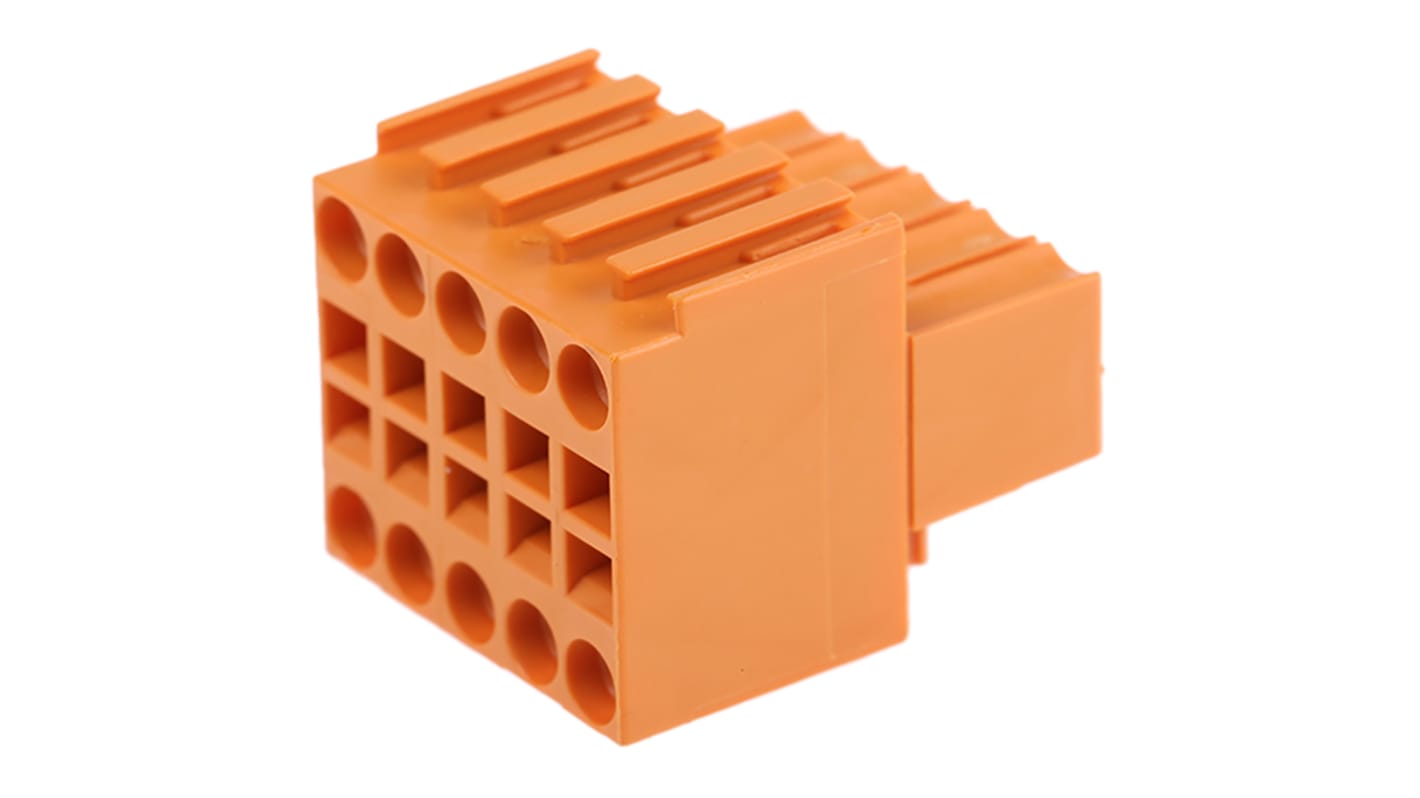

Weidmüller B2L 3.50 Series Pluggable Terminal Block, 10-Contact, 3.5 mm Pitch, 2 Row
- RS 제품 번호:
- 382-9618
- 제조사 부품 번호:
- 1727580000
- 제조업체:
- Weidmüller
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 pack of 5 units)*
₩76,240.00
재고있음
- 300 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 120 | ₩15,248.00 | ₩76,240.00 |
| 125 - 370 | ₩14,980.00 | ₩74,900.00 |
| 375 - 995 | ₩14,608.00 | ₩73,040.00 |
| 1000 - 1995 | ₩14,260.00 | ₩71,300.00 |
| 2000 + | ₩13,880.00 | ₩69,400.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 382-9618
- 제조사 부품 번호:
- 1727580000
- 제조업체:
- Weidmüller
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Weidmüller | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 10 | |
| Pitch | 3.5mm | |
| Number of Rows | 2 | |
| Current | 10.3A | |
| Housing Material | Polybutylene Terephthalate | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | Straight | |
| Colour | Orange | |
| Wire Connection Method | Screw | |
| Voltage | 200V | |
| Series | B2L 3.50 | |
| Length | 17.5mm | |
| Width | 15.7mm | |
| Depth | 20.6mm | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Weidmüller | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 10 | ||
Pitch 3.5mm | ||
Number of Rows 2 | ||
Current 10.3A | ||
Housing Material Polybutylene Terephthalate | ||
Connector Gender Male | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation Straight | ||
Colour Orange | ||
Wire Connection Method Screw | ||
Voltage 200V | ||
Series B2L 3.50 | ||
Length 17.5mm | ||
Width 15.7mm | ||
Depth 20.6mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Double Density 2-Part PCB Connector, screwless
The Weidmüller B2L/S2L is a two part PCB connector, offering double density in standard 3.5mm pitch. Saves 30% space compared to connectors using 2.5mm or 2.54mm pitch
No special tooling required
Easy handling compared to 2.5 & 2.54 pitches
Highest available wiring density for single wires
3.5mm Pitch - Weidmüller Omnimate Range
The Weidmuller 3.50 mm pitch Omnimate Range is a cost effective, space saving solution for PCB applications with vertical or horizontal headers which solder directly onto the board.
Mating harness connectors in either tension clamp or rising clamp screw terminals
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0
