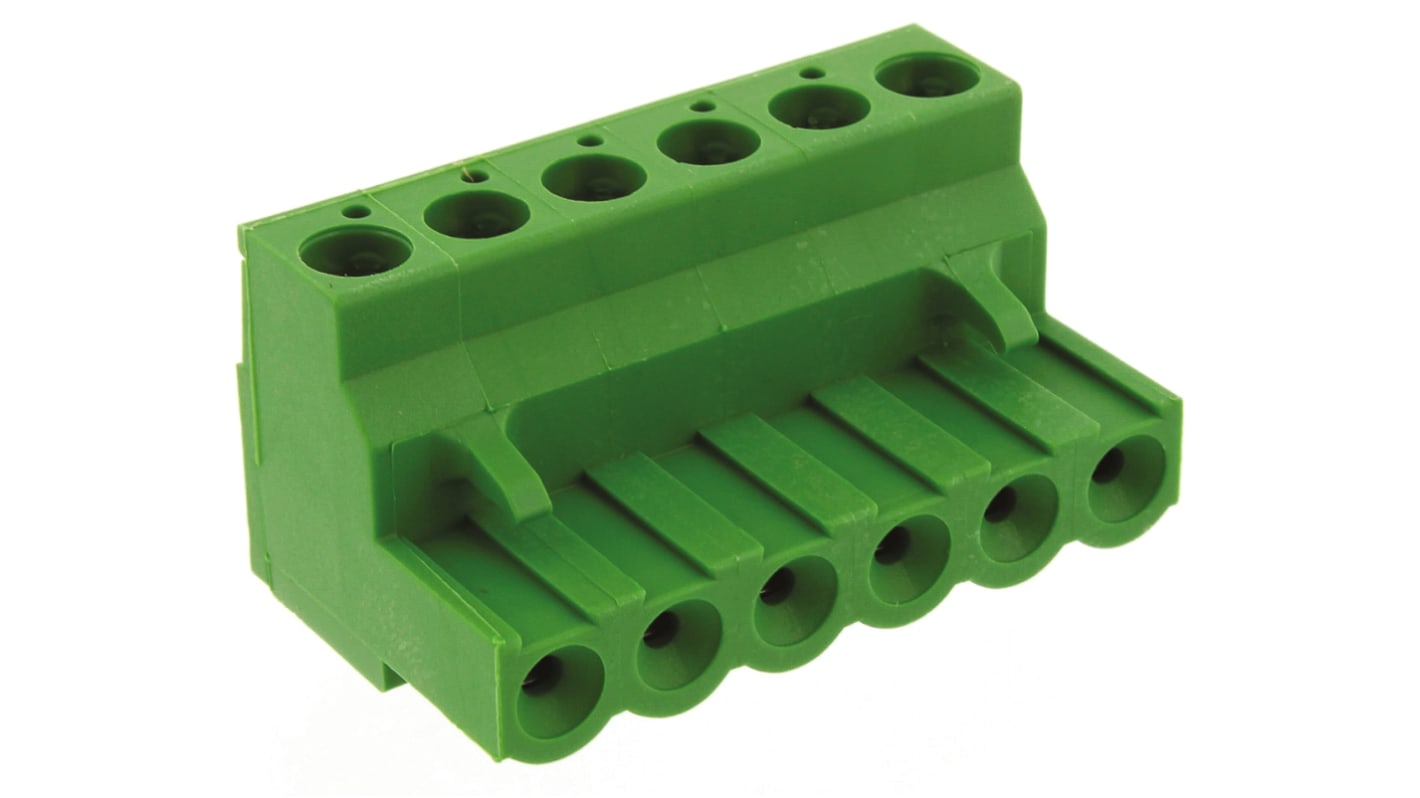

TE Connectivity, 5.08mm Pitch, 6 Way, Pluggable Terminal Block, Plug, Cable Mount, Screw Down Termination, 796634-6
- RS 제품 번호:
- 361-7364
- 제조사 부품 번호:
- 796634-6
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩34,028.00
재고있음
- 250 개 단위 배송 준비 완료
- 추가로 2025년 12월 29일 부터 280 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 20 | ₩6,805.60 | ₩34,028.00 |
| 25 - 45 | ₩6,655.20 | ₩33,276.00 |
| 50 + | ₩6,452.16 | ₩32,260.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 361-7364
- 제조사 부품 번호:
- 796634-6
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Pluggable Terminal Block Type | Plug | |
| Number of Contacts | 6 | |
| Pitch | 5.08mm | |
| Mounting Type | Cable Mount | |
| Termination Method | Screw Down | |
| Current Rating | 15A | |
| Voltage Rating | 300 V ac | |
| Wire Size | 30 → 12 AWG | |
| Material | Nylon | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Pluggable Terminal Block Type Plug | ||
Number of Contacts 6 | ||
Pitch 5.08mm | ||
Mounting Type Cable Mount | ||
Termination Method Screw Down | ||
Current Rating 15A | ||
Voltage Rating 300 V ac | ||
Wire Size 30 → 12 AWG | ||
Material Nylon | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin | ||
TE Connectivity 5.08mm TERMI-BLOK™ Right Angle Mount Terminal Block Plug Connectors
5.08mm centre line TERMI-BLOK ™ PCB terminal block plug connectors with M3 screw terminals. These TERMI-BLOK plug connectors are right angle mounting and side stackable and accept a wire size range of 30 to 12 AWG.
Part numbers x-796634-x are made from green polyamide 6.6 GF
Part numbers x-796635-x are made from black polyamide 6.6 GF
For mating terminal block connectors see stock number 710-0110 typically
Part numbers x-796634-x are made from green polyamide 6.6 GF
Part numbers x-796635-x are made from black polyamide 6.6 GF
For mating terminal block connectors see stock number 710-0110 typically
Rising clamp design to side entry terminals
Terminal supplied with open screw to save assembly time
Can be used in corrosive environments
Terminal supplied with open screw to save assembly time
Can be used in corrosive environments
Approvals
UL no E 60677,CSA File no 007189A
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
TE Connectivity TERMI-BLOK 5.08mm Two Part Terminal Blocks
