제조사부품번호

Molex 39530 Series Pluggable Terminal Block, 5-Contact, 5.08 mm Pitch, 1 Row, 395305005

RS 제품 번호:: 287-2314
제조사 부품 번호:: 395305005
제조업체:: Molex

Molex 39530 Series Pluggable Terminal Block, 5-Contact, 5.08 mm Pitch, 1 Row, 395305005

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 Box of 150 units)*

₩291,588.00

재고있음

1,650 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Box*
150 - 150	₩1,943.92	₩291,672.60
300 - 450	₩1,821.72	₩273,173.40
600 +	₩1,754.04	₩263,218.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 287-2314
제조사 부품 번호:: 395305005
제조업체:: Molex

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Molex
	Number of Contacts	5
	Product Type	Pluggable Terminal Block
	Pitch	5.08mm
	Number of Rows	1
	Minimum Wire Size mm²	0.13mm²
	Housing Material	Thermoplastic Polyurethane
	Maximum Wire Size mm²	3.31mm²
	Minimum Wire Size AWG	12 AWG
	Maximum Wire Size AWG	18 AWG
	Orientation	Horizontal
	Wire Connection Method	Unwired
	Colour	Grey, Black
	Voltage	48 V
	Length	10m
	Standards/Approvals	No
	Series	39530

	모두 선택
	브랜드 Molex
	Number of Contacts 5
	Product Type Pluggable Terminal Block
	Pitch 5.08mm
	Number of Rows 1
	Minimum Wire Size mm² 0.13mm²
	Housing Material Thermoplastic Polyurethane
	Maximum Wire Size mm² 3.31mm²
	Minimum Wire Size AWG 12 AWG
	Maximum Wire Size AWG 18 AWG
	Orientation Horizontal
	Wire Connection Method Unwired
	Colour Grey, Black
	Voltage 48 V
	Length 10m
	Standards/Approvals No
	Series 39530

Datasheet - 395305005

COO (Country of Origin):: CN

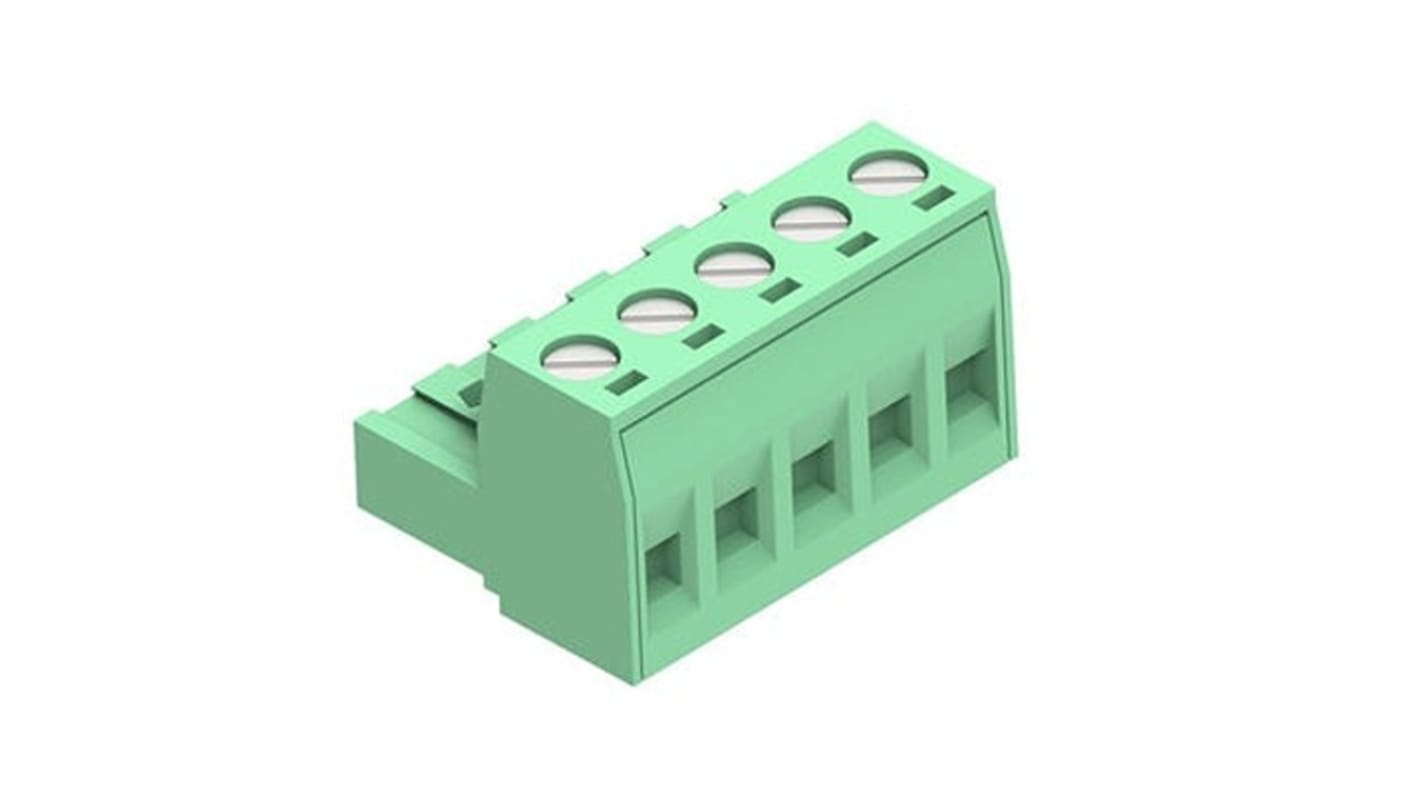

The Molex 5.08mm pitch Eurostyle horizontal plug, features green housing and 5 circuits. It is designed for use in Terminal blocks and barrier strips. This plug is part of the Eurostyle Terminal Blocks product family. With its Compact design and reliable performance, this plug offers easy and secure connections for a variety of applications. Whether it's in industrial automation, building infrastructure, or other electrical projects, it provides the perfect solution for your wiring needs.

5.08mm pitch Eurostyle horizontal plug with 5 circuits

Green housing for easy identification

Designed for use in Terminal blocks and barrier strips

Compact design for space-saving installation

High-quality construction for reliable performance

Easy and secure connections for quick installation

Suitable for various wire sizes

Operating temperature range from -40°C to +105°C

Molex 39530 Series Pluggable Terminal Block, 5-Contact, 5.08 mm Pitch, 1 Row, 395305005
