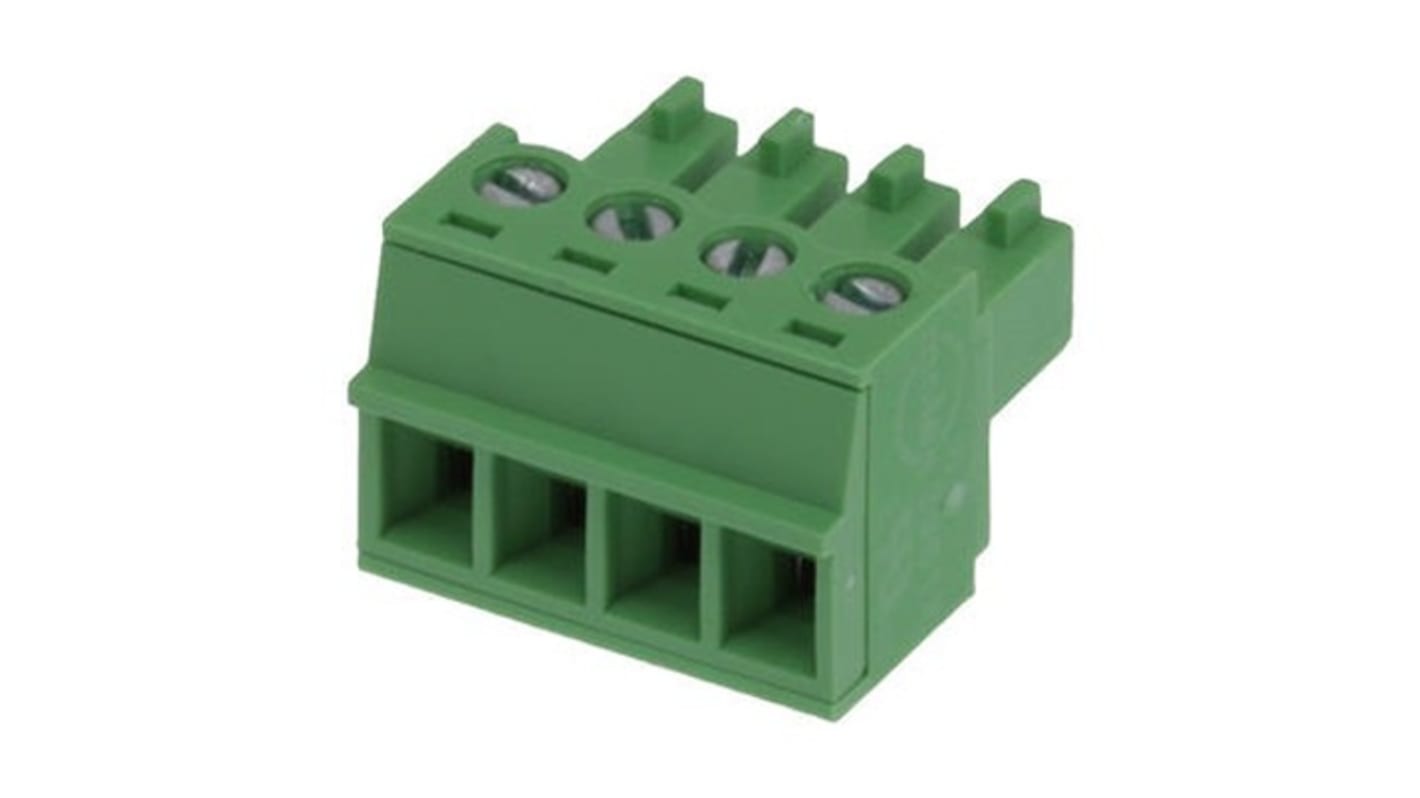

Molex 39510 Series Pluggable Terminal Block, 4-Contact, 3.81 mm Pitch, 1 Row, 395105004
- RS 제품 번호:
- 287-2280
- 제조사 부품 번호:
- 395105004
- 제조업체:
- Molex
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 Box of 336 units)*
₩908,107.20
재고있음
- 3,360 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 336 - 336 | ₩2,702.70 | ₩908,107.20 |
| 672 + | ₩2,531.10 | ₩850,449.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 287-2280
- 제조사 부품 번호:
- 395105004
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Number of Contacts | 4 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Housing Material | Thermoplastic Polyurethane, Nickel Plated, Die Cast Zinc | |
| Minimum Wire Size mm² | 0.34mm² | |
| Maximum Wire Size mm² | 1.31mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 24AWG | |
| Orientation | Horizontal | |
| Wire Connection Method | Plug-In | |
| Colour | Black | |
| Voltage | 24V | |
| Standards/Approvals | UL, IEC 61076-2-101, EAC-RoHS, cULus, cUL | |
| Series | 39510 | |
| Length | 1.5m | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Number of Contacts 4 | ||
Product Type Pluggable Terminal Block | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Housing Material Thermoplastic Polyurethane, Nickel Plated, Die Cast Zinc | ||
Minimum Wire Size mm² 0.34mm² | ||
Maximum Wire Size mm² 1.31mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 24AWG | ||
Orientation Horizontal | ||
Wire Connection Method Plug-In | ||
Colour Black | ||
Voltage 24V | ||
Standards/Approvals UL, IEC 61076-2-101, EAC-RoHS, cULus, cUL | ||
Series 39510 | ||
Length 1.5m | ||
- COO (Country of Origin):
- CN
The Molex 3.81mm Pitch Eurostyle Horizontal Plug, features 4 circuits. This Terminal Block and barrier strip product is designed to provide a reliable and efficient connection for various applications. With a green housing, it offers ease of use and durability. It is suitable for use in a wide range of industries including automotive, industrial automation, and building infrastructure. It is compliant with EU RoHS standards and has a low-halogen status. With its Compact design and high-performance capabilities, this Eurostyle Terminal Block is an Ideal choice for your connectivity needs.
3.81mm pitch Eurostyle horizontal plug with green housing
4 circuits for reliable and efficient connections
Polarized to mating part for secure and accurate mating
Temperature range of -40°C to +105°C for versatile usage
Compliant with EU RoHS standards for environmental safety
Low-halogen status per IEC 61249-2-21 for reduced environmental impact
