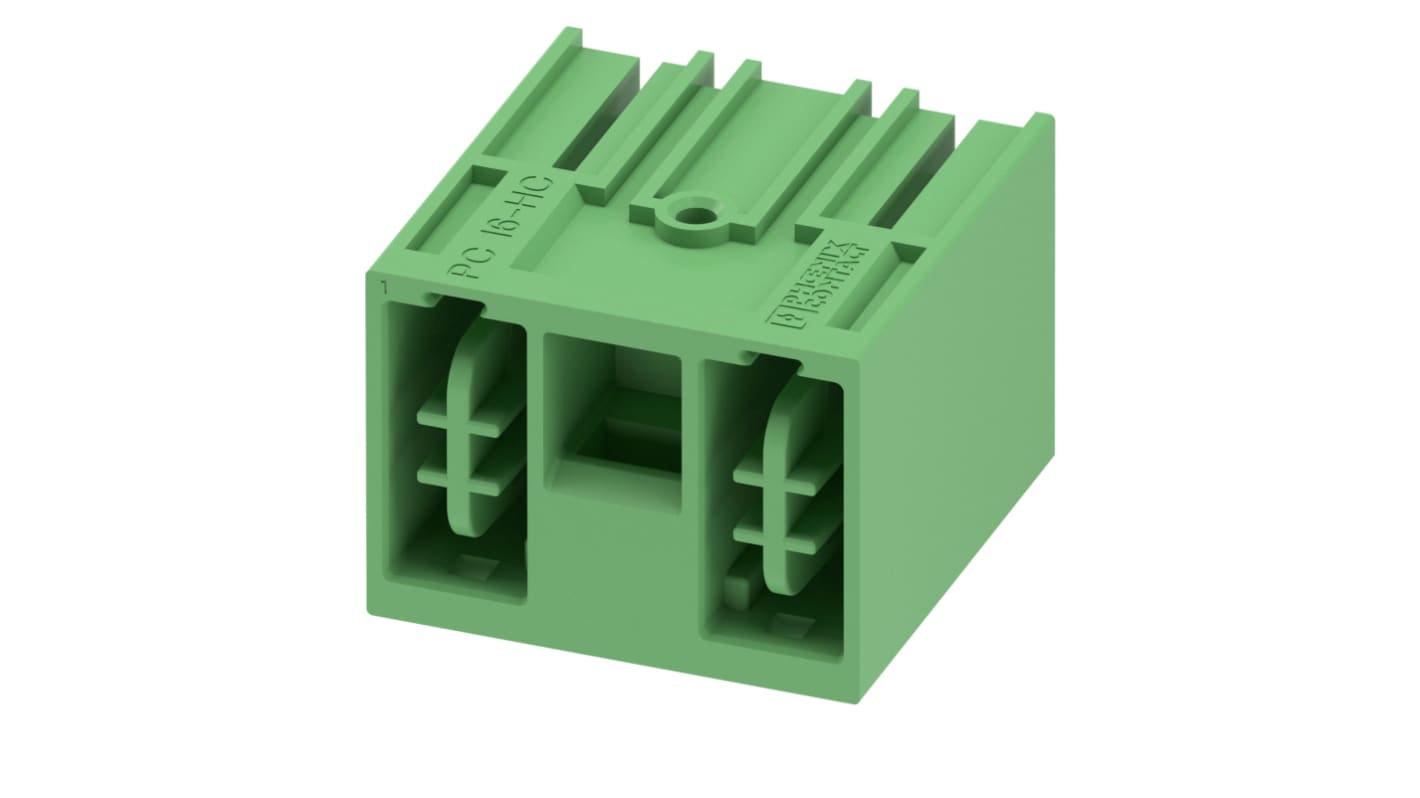

Phoenix Contact PC 16 HC/-GL2 Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 1 Row, 1716857
- RS 제품 번호:
- 240-3381
- 제조사 부품 번호:
- 1716857
- 제조업체:
- Phoenix Contact
Subtotal (1 pack of 25 units)*
₩163,312.50
제조사가 재고 비축중
- 2026년 6월 08일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 25 + | ₩6,532.50 | ₩163,332.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 240-3381
- 제조사 부품 번호:
- 1716857
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 76A | |
| Housing Material | Polyamide | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Solder | |
| Voltage | 690V | |
| Length | 32.9mm | |
| Depth | 27.6mm | |
| Series | PC 16 HC/-GL2 | |
| Width | 31.72mm | |
| Standards/Approvals | IEC 61984, IEC 60068-2-82/ JEDEC JESD 201 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 76A | ||
Housing Material Polyamide | ||
Connector Gender Male | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Solder | ||
Voltage 690V | ||
Length 32.9mm | ||
Depth 27.6mm | ||
Series PC 16 HC/-GL2 | ||
Width 31.72mm | ||
Standards/Approvals IEC 61984, IEC 60068-2-82/ JEDEC JESD 201 | ||
제외
- COO (Country of Origin):
- PL
The Phoenix Contact has PCB header with linear pin layout and wave soldering mounting. This header has 2 number of positions and nominal current is 76 A. The material used contact is Cu alloy and housing colour is green.
Intuitive locking mechanism prevents accidental disconnection
Easy PCB replacement thanks to plug-in modules
Increased touch protection in the pin connector pattern for maximum safety even when not plugged in
