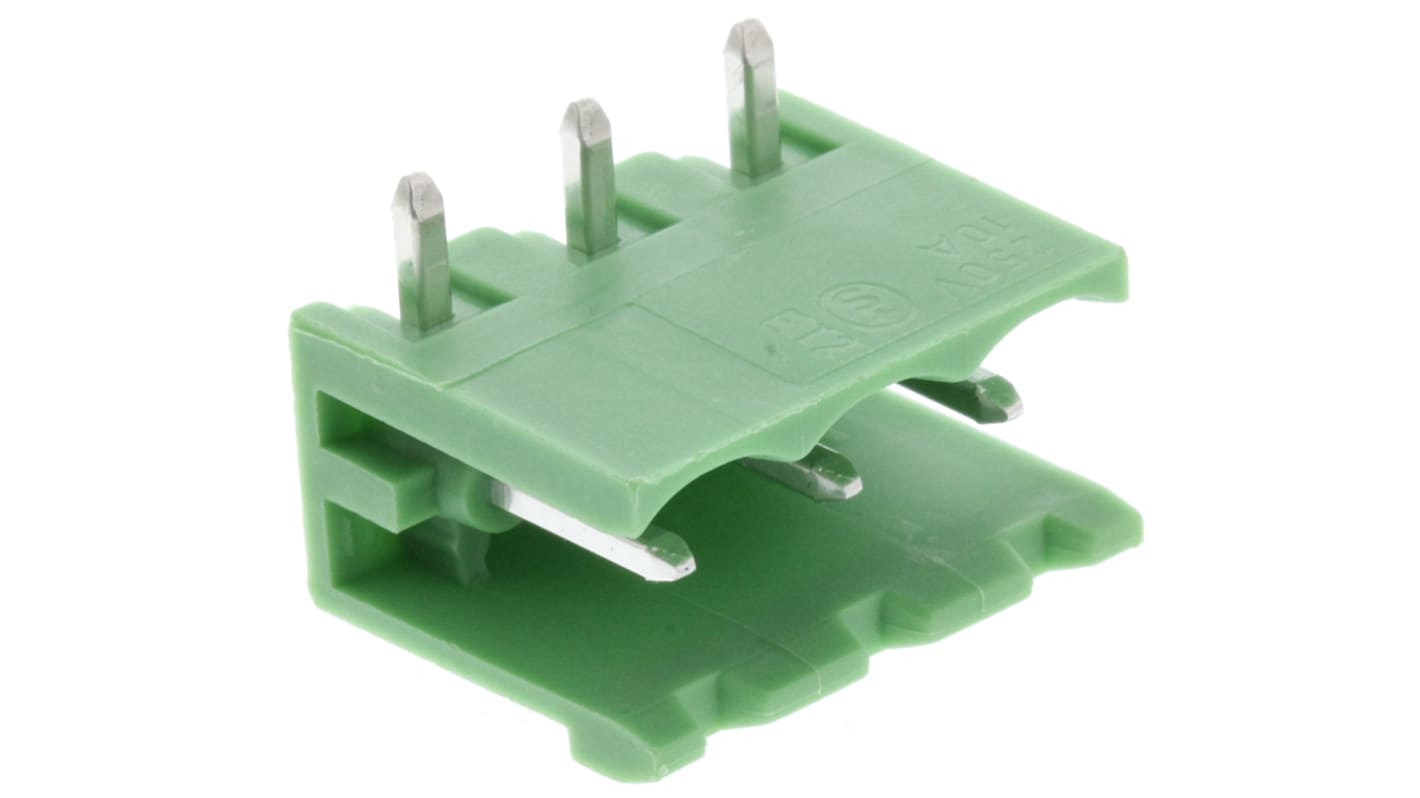

Phoenix Contact COMBICON MSTB Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 1759020
- RS 제품 번호:
- 189-6571
- Distrelec 제품 번호:
- 304-32-310
- 제조사 부품 번호:
- 1759020
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩6,630.00
재고있음
- 335 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 70 | ₩1,326.00 | ₩6,630.00 |
| 75 - 245 | ₩1,287.00 | ₩6,435.00 |
| 250 - 495 | ₩1,248.00 | ₩6,240.00 |
| 500 - 995 | ₩1,197.30 | ₩5,986.50 |
| 1000 + | ₩1,150.50 | ₩5,752.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 189-6571
- Distrelec 제품 번호:
- 304-32-310
- 제조사 부품 번호:
- 1759020
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Orientation | Right Angle | |
| Wire Connection Method | Solder | |
| Colour | Green | |
| Voltage | 250V | |
| Length | 12mm | |
| Series | COMBICON MSTB | |
| Standards/Approvals | CSA, cULus, EU REACH SVHC, EU RoHS, CHINA RoHS | |
| Depth | 11.8mm | |
| Width | 15.24mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Orientation Right Angle | ||
Wire Connection Method Solder | ||
Colour Green | ||
Voltage 250V | ||
Length 12mm | ||
Series COMBICON MSTB | ||
Standards/Approvals CSA, cULus, EU REACH SVHC, EU RoHS, CHINA RoHS | ||
Depth 11.8mm | ||
Width 15.24mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact CLASSIC COMBICON MSTB 5.08mm Terminal Block Headers
Professional range of Phoenix Contact MSTB series 5.0 mm pitch terminal block offering a 24-12 wire gauge range
Various positions available
Straight and 90° versions available
Wire to Board or Wire to Wire available
5.08 mm pitch
Colour: Green
Screw or Solder connection
