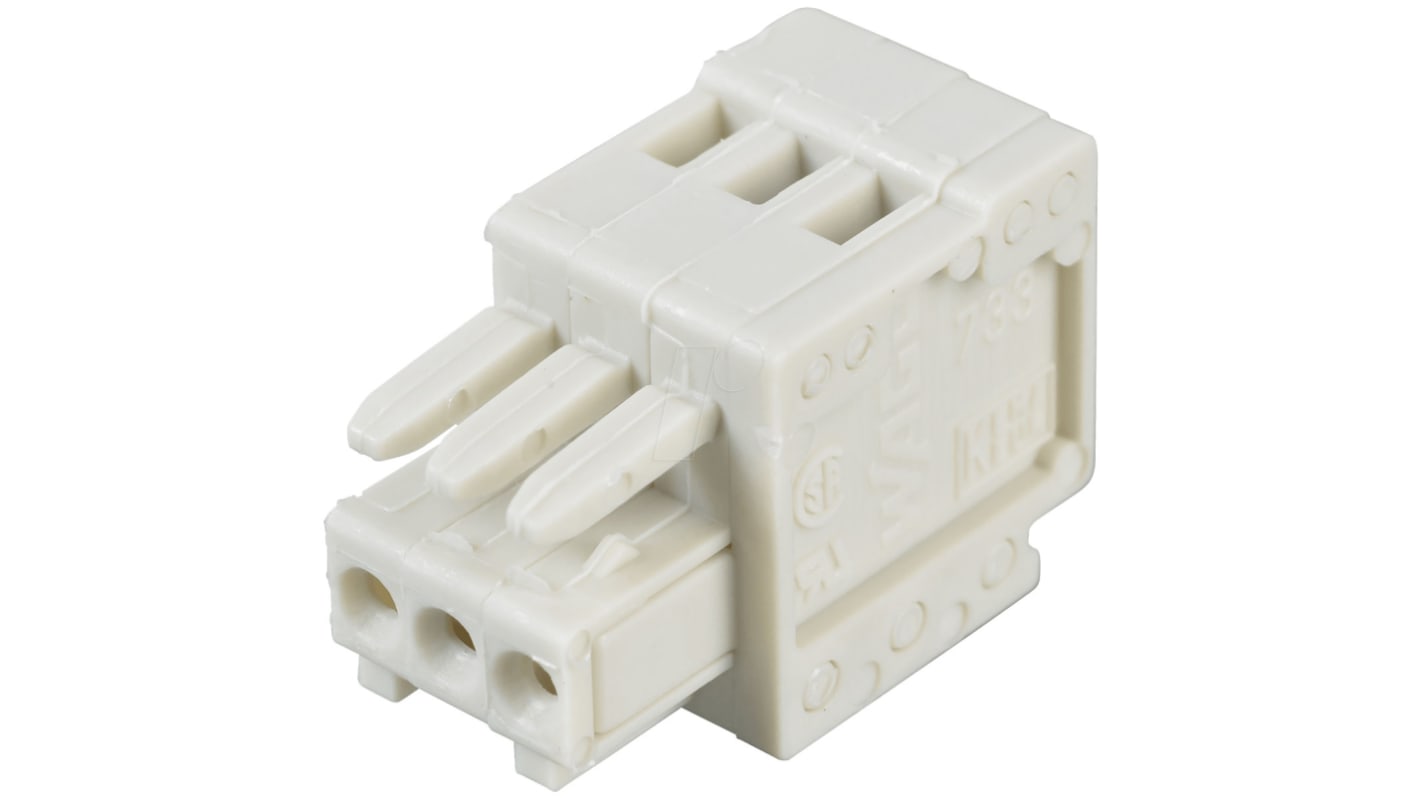

WAGO, 2.5mm Pitch, 733, 3 Way, , Pluggable Terminal Block, Plug, Cable Mount, 733-103
- RS 제품 번호:
- 189-6458
- 제조사 부품 번호:
- 733-103
- 제조업체:
- WAGO
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩36,396.80
재고있음
- 460 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 250 | ₩7,279.36 | ₩36,396.80 |
| 255 - 1245 | ₩6,989.84 | ₩34,949.20 |
| 1250 + | ₩6,696.56 | ₩33,482.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 189-6458
- 제조사 부품 번호:
- 733-103
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Pluggable Terminal Block Type | Plug | |
| Number of Contacts | 3 | |
| Pitch | 2.5mm | |
| Series | 733 | |
| Number of Rows | 1 | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| Current Rating | 4A | |
| Voltage Rating | 320 V | |
| Colour | Light Grey | |
| Wire Size | 28 → 20 AWG | |
| Contact Material | Copper Alloy | |
| Material | Polyamide | |
| Contact Plating | Tin | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Pluggable Terminal Block Type Plug | ||
Number of Contacts 3 | ||
Pitch 2.5mm | ||
Series 733 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Current Rating 4A | ||
Voltage Rating 320 V | ||
Colour Light Grey | ||
Wire Size 28 → 20 AWG | ||
Contact Material Copper Alloy | ||
Material Polyamide | ||
Contact Plating Tin | ||
- COO (Country of Origin):
- DE
WAGO Pluggable Terminal Block, 3 Contacts, 28 to 20 AWG Wire Sise - 733-103
This pluggable terminal block by WAGO, with a 2.5mm pitch and 3 pin configuration, provides a reliable and efficient solution for connecting wires in electrical applications. Its cable mount design ensures easy installation and secure connections, making it a versatile choice for various projects.
Features & Benefits
• Features a cable mount design for easy installation
• Equipped with 3 pins for efficient wire connections
• Boasts a 2.5mm pitch for precise wiring
• Supports wire sises ranging from 28 AWG to 20 AWG
• Equipped with 3 pins for efficient wire connections
• Boasts a 2.5mm pitch for precise wiring
• Supports wire sises ranging from 28 AWG to 20 AWG
Applications
• Ideal for use in electrical panels
• Suitable for connecting wires in automation systems
• Can be used for industrial machinery installations
• Suitable for connecting wires in automation systems
• Can be used for industrial machinery installations
Can it support various wire sises?
Yes, it can accommodate wire sises ranging from 28 AWG to 20 AWG.
Will it ensure secure connections?
Yes, it is designed to provide secure and reliable wire connections.
Is it suitable for high current applications?
Yes, it is rated for a current of 4 A, making it ideal for high current applications.
2.5mm Pitch - WAGO 733 Series
High density offering fast and reliable wire to board connection.
Reliable cage clamp technology
Suitable for solid, stranded or flexible conductor
100% protected against connector mismatching
Space saving design
Integral test point
Wire size 0.08 – 0.5mm²
28-20awg
Conductor connection length 5-6mm
Suitable for solid, stranded or flexible conductor
100% protected against connector mismatching
Space saving design
Integral test point
Wire size 0.08 – 0.5mm²
28-20awg
Conductor connection length 5-6mm
