Weidmüller BLF 5.08 Series Pluggable Terminal Block, 14-Contact, 5.08 mm Pitch, 1 Row

RS 제품 번호:: 176-7790
제조사 부품 번호:: 1013560000
제조업체:: Weidmüller

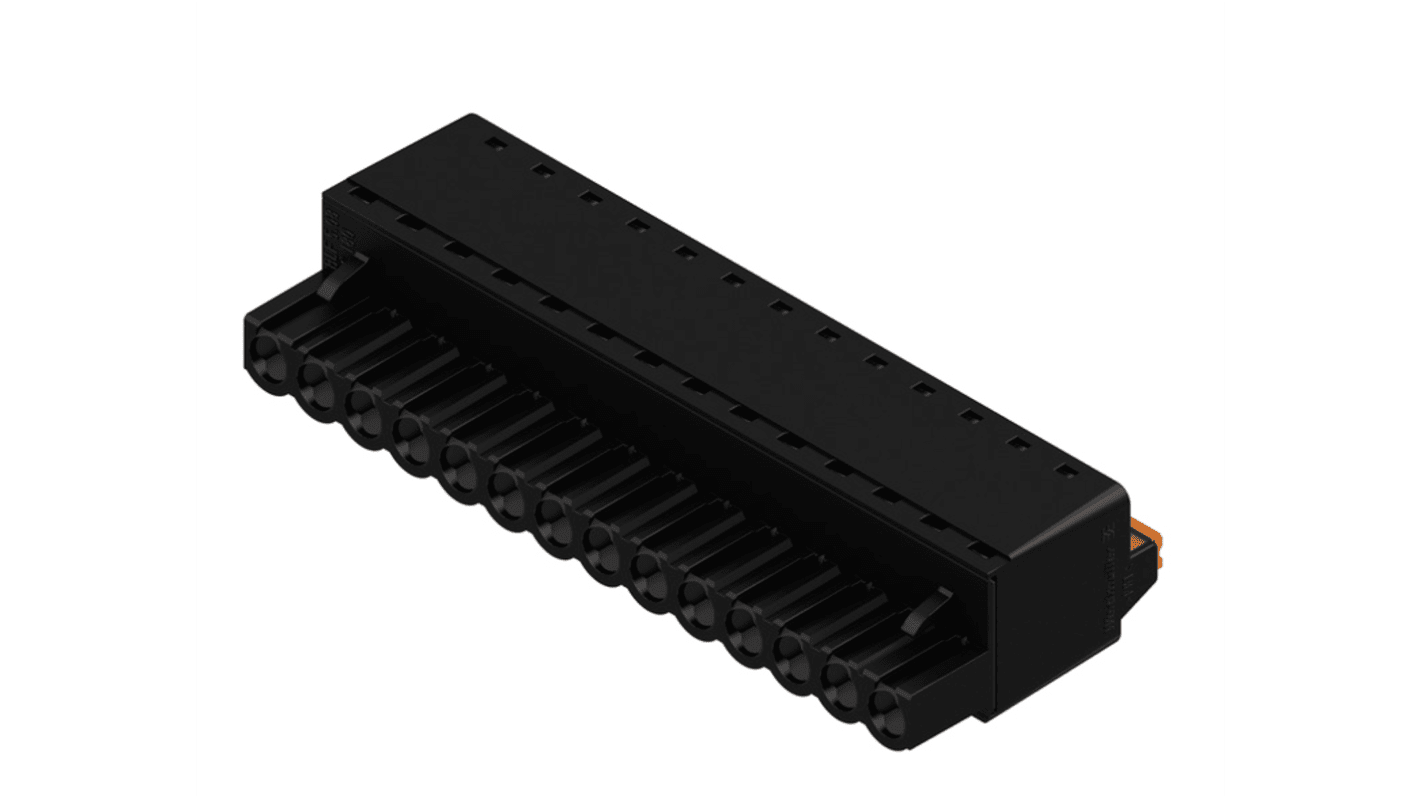

Weidmüller BLF 5.08 Series Pluggable Terminal Block, 14-Contact, 5.08 mm Pitch, 1 Row

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩17,916.40

일시적 품절

2026년 11월 11일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 5	₩17,916.40
6 - 11	₩17,521.60
12 +	₩17,145.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 176-7790
제조사 부품 번호:: 1013560000
제조업체:: Weidmüller

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Weidmüller
	Number of Contacts	14
	Product Type	Pluggable Terminal Block
	Pitch	5.08mm
	Current	10A
	Number of Rows	1
	Minimum Wire Size mm²	0.2mm²
	Housing Material	Copper Tin, Polybutylene Terephthalate
	Maximum Wire Size mm²	2.5mm²
	Connector Gender	Female
	Minimum Wire Size AWG	26 AWG
	Maximum Wire Size AWG	12 AWG
	Orientation	Straight
	Wire Connection Method	Screw
	Colour	Black
	Voltage	400 V
	Length	80.04mm
	Standards/Approvals	RoHS
	Series	BLF 5.08
	Width	27.6 mm
	Depth	14.2mm

	모두 선택
	브랜드 Weidmüller
	Number of Contacts 14
	Product Type Pluggable Terminal Block
	Pitch 5.08mm
	Current 10A
	Number of Rows 1
	Minimum Wire Size mm² 0.2mm²
	Housing Material Copper Tin, Polybutylene Terephthalate
	Maximum Wire Size mm² 2.5mm²
	Connector Gender Female
	Minimum Wire Size AWG 26 AWG
	Maximum Wire Size AWG 12 AWG
	Orientation Straight
	Wire Connection Method Screw
	Colour Black
	Voltage 400 V
	Length 80.04mm
	Standards/Approvals RoHS
	Series BLF 5.08
	Width 27.6 mm
	Depth 14.2mm

COO (Country of Origin):: DE

Weidmuller BLF 5.08 Series Pluggable Terminal Block, 14 Contacts, 5.08mm Pitch - 1013560000

This pluggable Terminal Block is a VITAL component for electrical connections, designed with a practical plug design to ensure reliability and ease of use. It utilises a straight body orientation and employs a through hole mounting type, optimised for various installation requirements. With dimensions of 71.12mm width, 14.2mm height, and 27.7mm depth, it is Compact and space-efficient.

Features & Benefits

• Utilises a PUSH IN spring connection for tool-free wiring

• Supports a current rating of up to 10A for robust performance

• Includes a patented release latch for secure locking functionality

• Features black PBT insulation for durability and safety

• Designed with 14 contacts for versatile applications

Applications

• Used for automation systems for effective signal transmission

• Ideal for electrical panel connections in commercial equipment

• Suitable for developing secure connections in electronic devices

• Recommended for mechanical requiring reliable wire management

What are the optimal wire sizes that can be connected to this Terminal block?

It accommodates wire sizes ranging from 26 AWG to 12 AWG, making it suitable for various electrical applications requiring flexibility in wire choice.

How does the locking mechanism improve reliability in connections?

The patented release latch provides enhanced security, ensuring that connections remain intact during operation while allowing for easy removal when necessary.

What is the maximum voltage this Terminal Block can handle?

It is rated for a maximum voltage of 300V, suitable for a range of high-voltage applications in electrical systems.

Can it be used in harsh environmental conditions?

Yes, it operates effectively within a temperature range of -50 to 100 °C, making it applicable in diverse environments without compromising performance.
