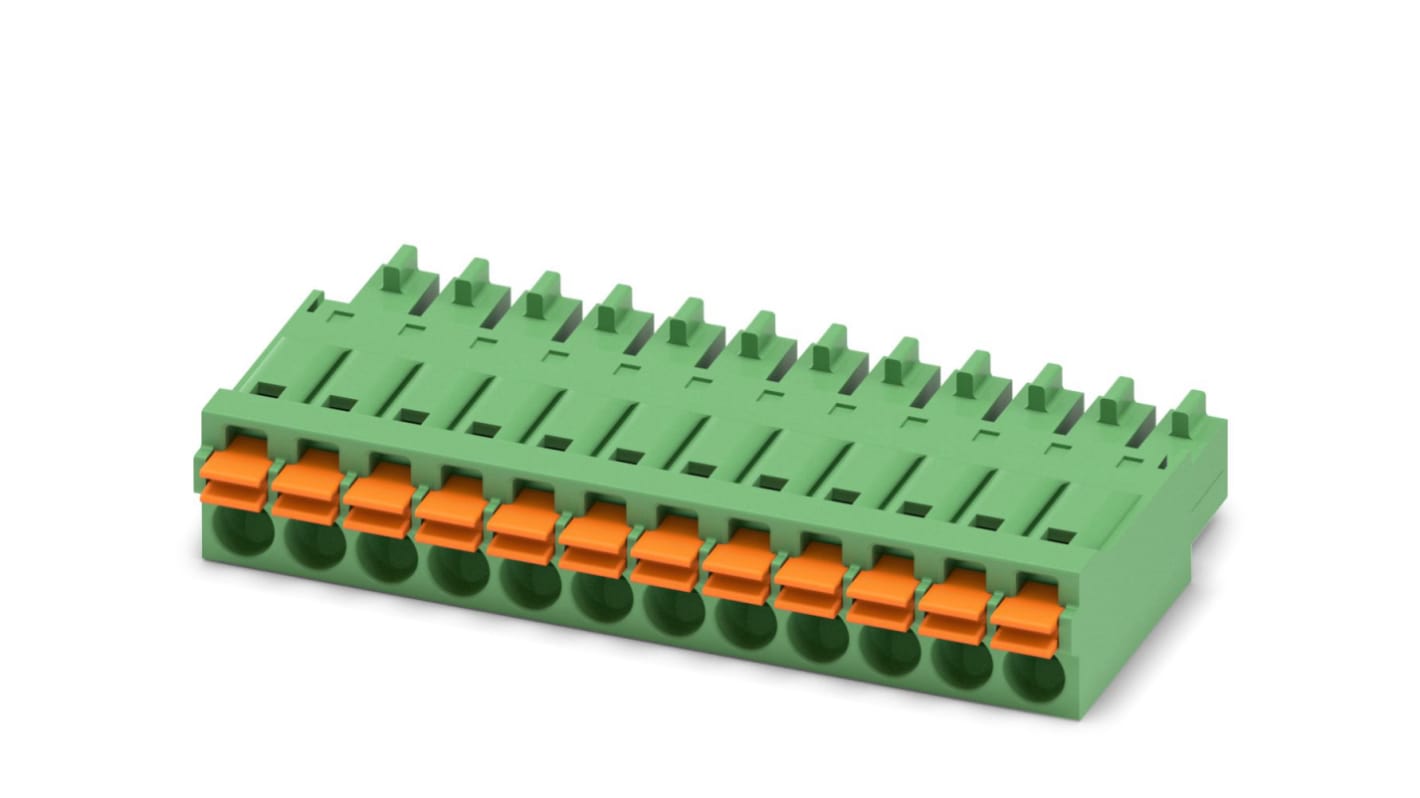

Phoenix Contact FMC 1.5/12-ST-3.5 Series Pluggable Terminal Block, 12-Contact, 3.5 mm Pitch, 1 Row, 1952364
- RS 제품 번호:
- 176-1207
- 제조사 부품 번호:
- 1952364
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
Subtotal (1 Box of 50 units)*
₩838,292.00
일시적 품절
- 2026년 4월 27일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 50 - 50 | ₩16,765.84 | ₩838,292.00 |
| 100 - 450 | ₩16,346.60 | ₩817,348.80 |
| 500 + | ₩14,712.88 | ₩735,606.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 176-1207
- 제조사 부품 번호:
- 1952364
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 12 | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 16 AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Spring Cage | |
| Voltage | 320 V | |
| Width | 42.75 mm | |
| Series | FMC 1.5/12-ST-3.5 | |
| Standards/Approvals | RoHS | |
| Length | 21.9mm | |
| Depth | 7.75mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 12 | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 8A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 16 AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Spring Cage | ||
Voltage 320 V | ||
Width 42.75 mm | ||
Series FMC 1.5/12-ST-3.5 | ||
Standards/Approvals RoHS | ||
Length 21.9mm | ||
Depth 7.75mm | ||
Phoenix Contact PCB Terminal Block, 12 Way, 24 to 16AWG - FMC 1,5/12-ST-3,5 - 1952364
This Terminal Block from Phoenix Contact is designed to house cables that make power connections to your PCB. Thanks to a 12-contact design, it can accommodate multiple conductors at once so saves space in busy setups. Its copper-alloy contacts have high electrical conductivity to ensure stable signal transmissions. For durability, the contacts feature tin-plating that ensures they're resistant to wear and corrosion.
Thanks to a user-friendly push-in spring connection method, you can quickly set up wires by inserting them into the contacts. As the connections are resistant to vibration, the conductors remain secure even in demanding conditions. An integrated actuation lever lets you quickly disconnect a cable with ease and is coloured Orange for quick identification in busy settings. This Terminal Block is designed for use with wire sizes ranging from 24 to 16AWG, making it a versatile option for your industrial machinery.
• Light weight of 6.32g for reduced strain on a panel
• Rated UL94 V0, so stops burning in 10 seconds and boosts workplace safety
• Current rating of 8A for energy efficiency
• Wide operating temperature range between -40°C and +100°C for safe use in challenging environments
