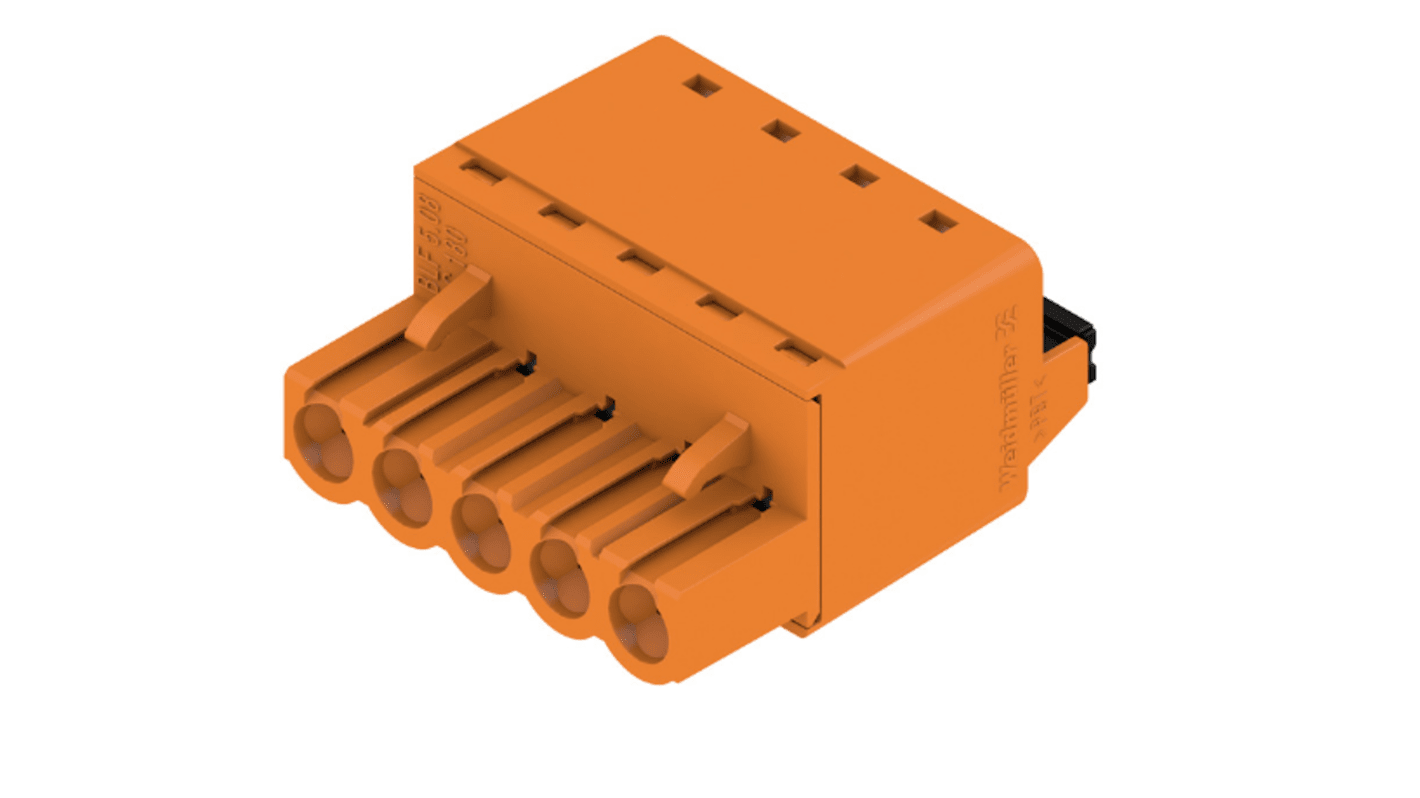

Weidmuller, 5.08mm Pitch, BL 5.08, 5 Way, , Pluggable Terminal Block, Plug, Cable Mount, Push In Termination, 1013720000

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 72 units)*

₩363,576.96

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 22일 부터 288 개 단위 배송
  • 추가로 2026년 2월 11일 부터 144 개 단위 배송
  • 추가로 2026년 3월 11일 부터 72 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Box*
72 - 72₩5,049.68₩363,576.96
144 - 216₩4,923.72₩354,494.68
288 +₩4,846.64₩349,025.76

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
172-2783
제조사 부품 번호:
1013720000
제조업체:
Weidmüller
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Weidmüller

Pluggable Terminal Block Type

Plug

Number of Contacts

5

Pitch

5.08mm

Series

BL 5.08

Number of Rows

1

Body Orientation

Straight

Mounting Type

Cable Mount

Termination Method

Push In

Current Rating

14A

Voltage Rating

400 V

Colour

Orange

Contact Material

Copper Alloy

Material

Nylon

COO (Country of Origin):
SK

Push-In Screwless Terminals


These Socket Connector Push-In Screwless terminals on a 5.08mm pitch give rapid insertion of prepared cables without the use of any tools also the release latch allows rapid unplugging.

Weidmuller BLF 5.08 Series Pluggable Terminal Block, 5.08mm Pitch, 14A Current Rating - 1013720000


This pluggable terminal block is designed for efficient connectivity in various electrical applications. Featuring a compact one-row design, it utilises a pitch of 5.08mm and supports cable mounting. The terminal block offers robust performance with a current rating of 14A and a voltage rating of 400V, making it suitable for a variety of wiring tasks.

Features & Benefits


• Designed for quick installation with a push-in termination method
• Accommodates wire sizes from 26 to 12 AWG for versatility
• Constructed from durable copper alloy and PBT for reliability
• Vibrant orange colour simplifies visual identification in complex setups
• Straight body orientation optimally utilises space in electrical enclosures
• Effective conductivity ensures dependable performance in demanding environments

Applications


• Used for interconnections in control cabinets
• Ideal for various automation and electrical control systems
• Commonly utilised in machinery where space is limited
• Suited for requiring quick disconnect capabilities

What is the operational range for wire sizes with this model?


It accommodates a range of wire sizes from 26 AWG to 12 AWG, providing flexibility for various applications.

How does the current rating affect the usage of this terminal block?


With a current rating of 14A, it is suitable for powering devices that operate within this limit, ensuring safe and efficient power distribution.

What materials are used in the construction of this terminal block?


It is made from a combination of copper alloy for the contacts and PBT for insulation, ensuring durability and reliability in electrical connections.

How does this product contribute to efficient cable management?


The straight body orientation and compact 5.08mm pitch design allow for neat and organised cabling, minimising clutter in electrical assemblies.


5.08mm Pitch -Weidmüller Omnimate Range


Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.


• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
