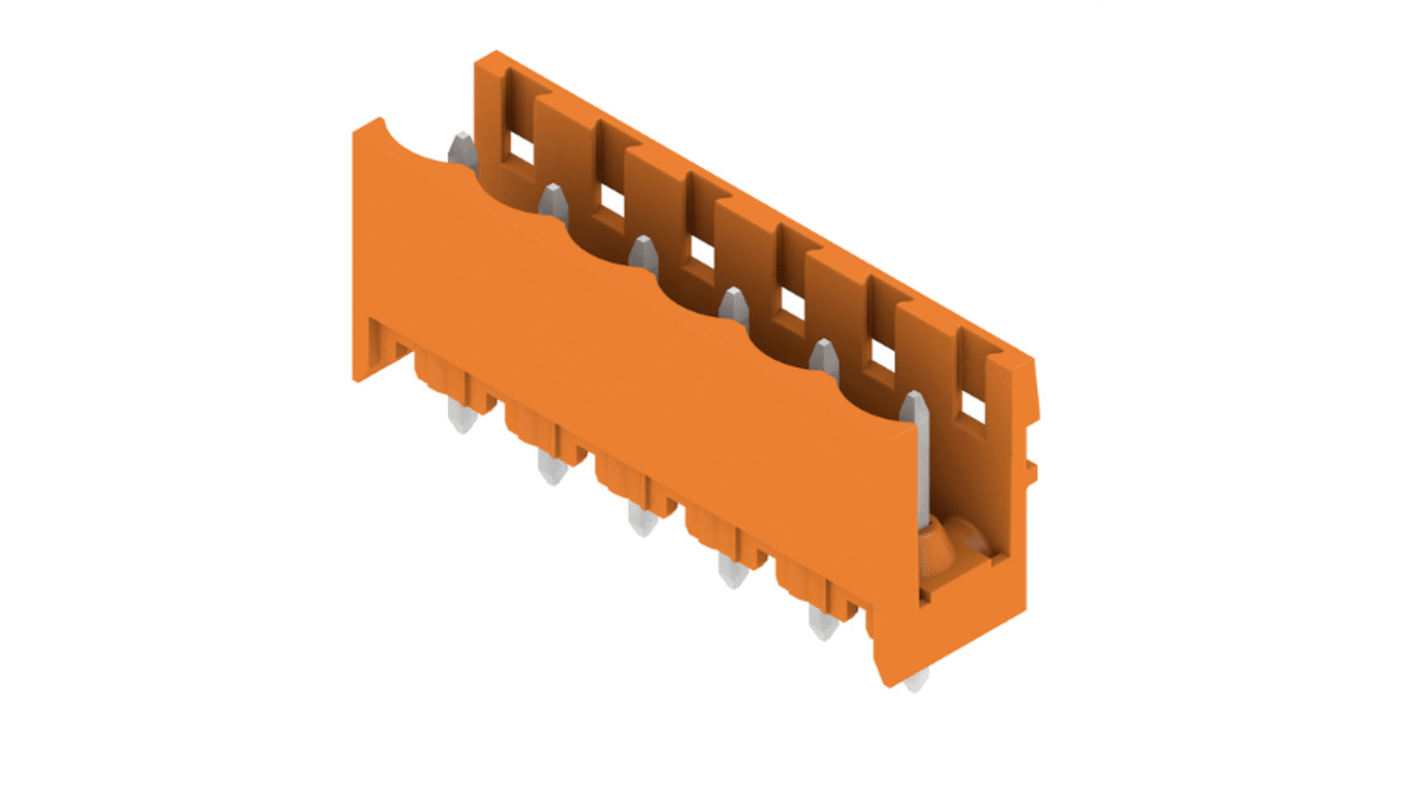

Weidmuller, 5.08mm Pitch, OMNIMATE SL, 6 Way, , Pluggable Terminal Block, Header, Through Hole, Solder Termination,

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 50 units)*

₩136,018.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 22일 부터 200 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Box*
50 - 200₩2,720.36₩135,999.20
250 +₩2,447.76₩122,406.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
172-2604
제조사 부품 번호:
1146450000
제조업체:
Weidmüller
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Weidmüller

Pluggable Terminal Block Type

Header

Number of Contacts

6

Pitch

5.08mm

Series

OMNIMATE SL

Number of Rows

1

Body Orientation

Straight

Mounting Type

Through Hole

Termination Method

Solder

Current Rating

18.0A

Voltage Rating

400.0 V

Colour

Orange

Contact Material

Copper Alloy

COO (Country of Origin):
DE

Weidmuller OMNIMATE SL Series Pluggable Terminal Block, 18A Current Rating, 400V Voltage Rating - 1146450000


This pluggable terminal block offers a dependable solution for electrical connections across multiple applications. It features a 5.08mm pitch and accommodates six contacts in a straight body orientation. The through hole mounting type combined with a solder termination method ensures a secure connection in various environments.

Features & Benefits


• High current rating of 18A supports robust applications
• 400V voltage rating for safe operation
• Copper alloy construction enhances durability and conductivity
• Through hole design facilitates assembly and stability
• Single row configuration optimises space efficiency
• 5.08mm pitch allows for flexible wiring options

Applications


• Utilised in control panel manufacturing
• Suitable for automation and robotics
• Common in power distribution systems
• Ideal for machinery and equipment wiring
• Employed in alarm and security systems

Can it handle high voltage applications?


Yes, it has a voltage rating of 400.0V.

Will it work in automated machinery?


Yes, it is suitable for automation applications.

Is it easy to install?


Its through hole design allows for simple installation.

Can it be used for high current connections?


Yes, it has a current rating of 18.0A.

Is it compatible with various wiring configurations?


Yes, its design offers flexible wiring options.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



5.08mm Pitch -Weidmüller Omnimate Range


Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.


• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
