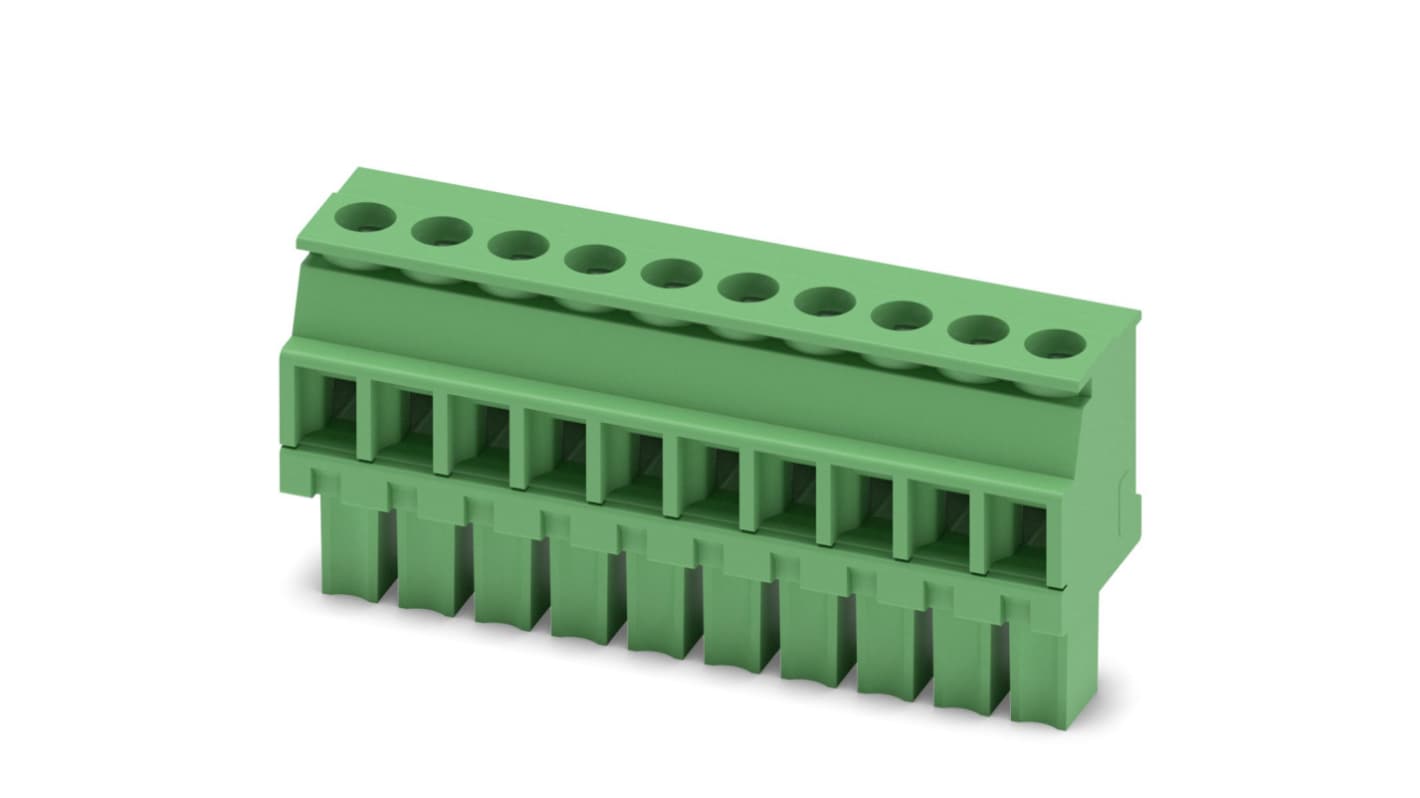

Phoenix Contact MCVW 1.5/10-ST-3.81 Series Pluggable Terminal Block, 10-Contact, 3.81 mm Pitch, 1 Row, 1827059

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 50 units)*

₩702,368.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 100 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Box*
50 - 200₩14,047.36₩702,330.40
250 +₩12,641.12₩632,093.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
170-3909
제조사 부품 번호:
1827059
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Pluggable Terminal Block

Number of Contacts

10

Pitch

3.81mm

Number of Rows

1

Current

8A

Housing Material

Polyamide

Minimum Wire Size mm²

0.14mm²

Maximum Wire Size mm²

1.5mm²

Connector Gender

Female

Minimum Wire Size AWG

28 AWG

Maximum Wire Size AWG

16 AWG

Orientation

Straight

Colour

Green

Wire Connection Method

Screw Connection with Tension Sleeve

Voltage

160 V

Length

38.89mm

Series

MCVW 1.5/10-ST-3.81

Width

10.4 mm

Standards/Approvals

No

Depth

19.1mm

Phoenix Contact Pluggable Terminal Block, 10 Way, 8A Current Rating - MCVW 1.5/10-ST-3.81 - 1827059


Looking for a quick and simple way to terminate and attach leads? Use this Phoenix Contact pluggable Terminal block. It comes with ten 3.81mm pins so makes multiple connections. As it accommodates 28 to 16AWG wires, it's a versatile option.

A modular design makes it possible to link this item to other Blocks from the same series to make extended electrical junctions. Easy screw termination ensures the unit is firmly attached to your PCB, so you GET reliable signal transmissions. A tough polyamide casing insulates live components to help prevent electric shocks and protect delicate connections. Thanks to Compact dimensions of 38.89 (length) x 10.4 (width) x 19.1mm (depth), the Block takes up minimal board space.

The unit's green colour-coding makes it easier to distinguish between different links when performing repairs and maintenance on your PCBs and control panels.

• Light weight at only 8.28g to minimise strain on PCBs

• RoHS compliance assures you the unit contains negligible amounts of any harmful substances

• CSA and UL certifications indicate it has passed quality and safety testing for use in Canada and the United States

• UL94V-0 rating means it won't burn for longer than 10 seconds for improved fire safety

Phoenix Contact MINI COMBICON MCVR & MCVW 3.81mm Plug-In Terminal Block Connectors


MINI COMBICON MCVR & MCVW 3.81mm pitch cable mount plug-in Terminal Block connectors with a 0.14 - 1.5mm2 screw connection and 90° plug-in direction.

MCVR series Terminal Block connectors (part numbers prefixed with 18271, 18272, 18283, 18284) have the conductor entry facing the coding side. Part numbers prefixed with 18283, 18284 also have a screw flange.

MCVW series Terminal Block connectors (part numbers prefixed 18269, 18270, 18271, 18284, 18285, 18286) have the conductor entry facing the rippled side. Part numbers prefixed with 18284, 18285, 18286 also have a screw flange.

For marker label see stock number 648-5508

For screwdriver see stock number 390-9663
