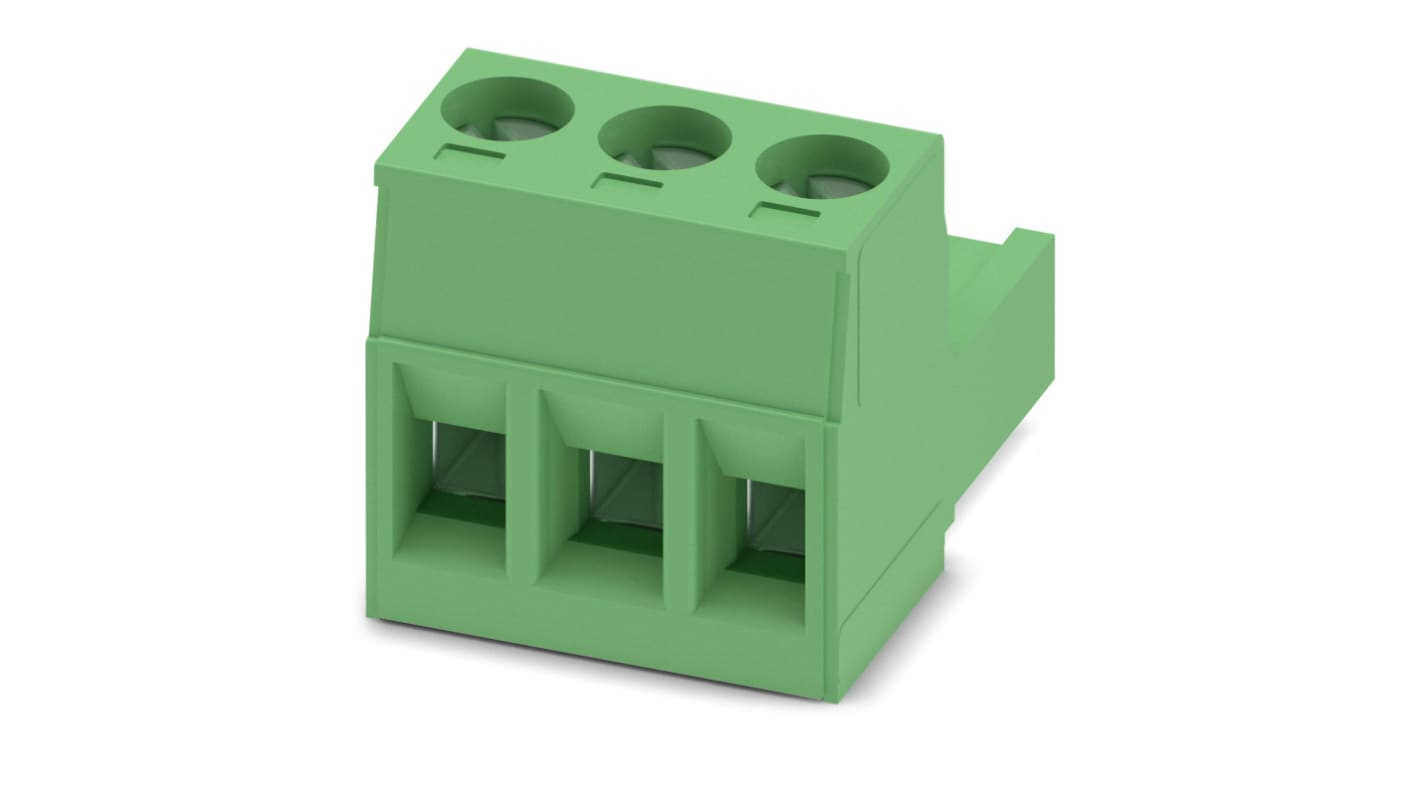

Phoenix Contact MSTB 2.5/3-ST Series Pluggable Terminal Block, 3-Contact, 5 mm Pitch, 1 Row, 1754465

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 100 units)*

₩350,996.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 4월 03일 부터 300 개 단위 배송
  • 추가로 2026년 4월 17일 부터 300 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Box*
100 - 100₩3,509.96₩351,014.80
200 - 300₩3,421.60₩342,235.20
400 +₩3,368.96₩336,971.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
170-3808
제조사 부품 번호:
1754465
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Number of Contacts

3

Product Type

Pluggable Terminal Block

Pitch

5mm

Number of Rows

1

Current

12A

Housing Material

Polyamide

Minimum Wire Size mm²

0.2mm²

Maximum Wire Size mm²

2.5mm²

Minimum Wire Size AWG

24 AWG

Maximum Wire Size AWG

12 AWG

Orientation

Straight

Wire Connection Method

Screw Connection with Tension Sleeve

Colour

Green

Voltage

320 V

Standards/Approvals

No

Depth

15mm

Length

18.2mm

Series

MSTB 2.5/3-ST

Width

10 mm

Phoenix Contact CLASSIC COMBICON MSTB 2,5 5.0mm Plug-in Terminal Block Connectors


The MSTB connectors from Phoenix Contact are from their COMICON range that is very well known for its simplicity but brilliant quality. These connectors feature multiple connection technologies so you can have maximum versatility to use one header for all applications. Not to mention, these connectors can come either in a right-angle orientation or straight orientations for maximum options. MSTB connectors feature a closed contour to help ensure the plug-in connector has good stability. Also, the MSTB series have a low-temperature rise thanks to their maximum contact force and feature an integrated double steel spring that adds additional safety to help prevent temperature and power fluctuations.

The connectors are 5mm pitched, have Cu (Copper) alloy contacts and the housing is MADE from a polyamide material.

Features and benefits:


  • Well known mounting principle allows for worldwide use

  • The MSTB series can be used for all PCB connectors thanks to allowing multiple connection technologies

  • Built from a Durable Polyamide material

  • Linear pinning that is designed to be soldered by a wave soldering technique (through-hole)

  • Easy connection to the PCB - simply crimp your wire into a header and plug-in to these connectors

  • Maximum contact force - low-temperature rise

  • Dual steel spring - prevents power & temperature fluctuations

    • Phoenix Contact COMBICON 5.0mm Two Part Terminal Blocks
