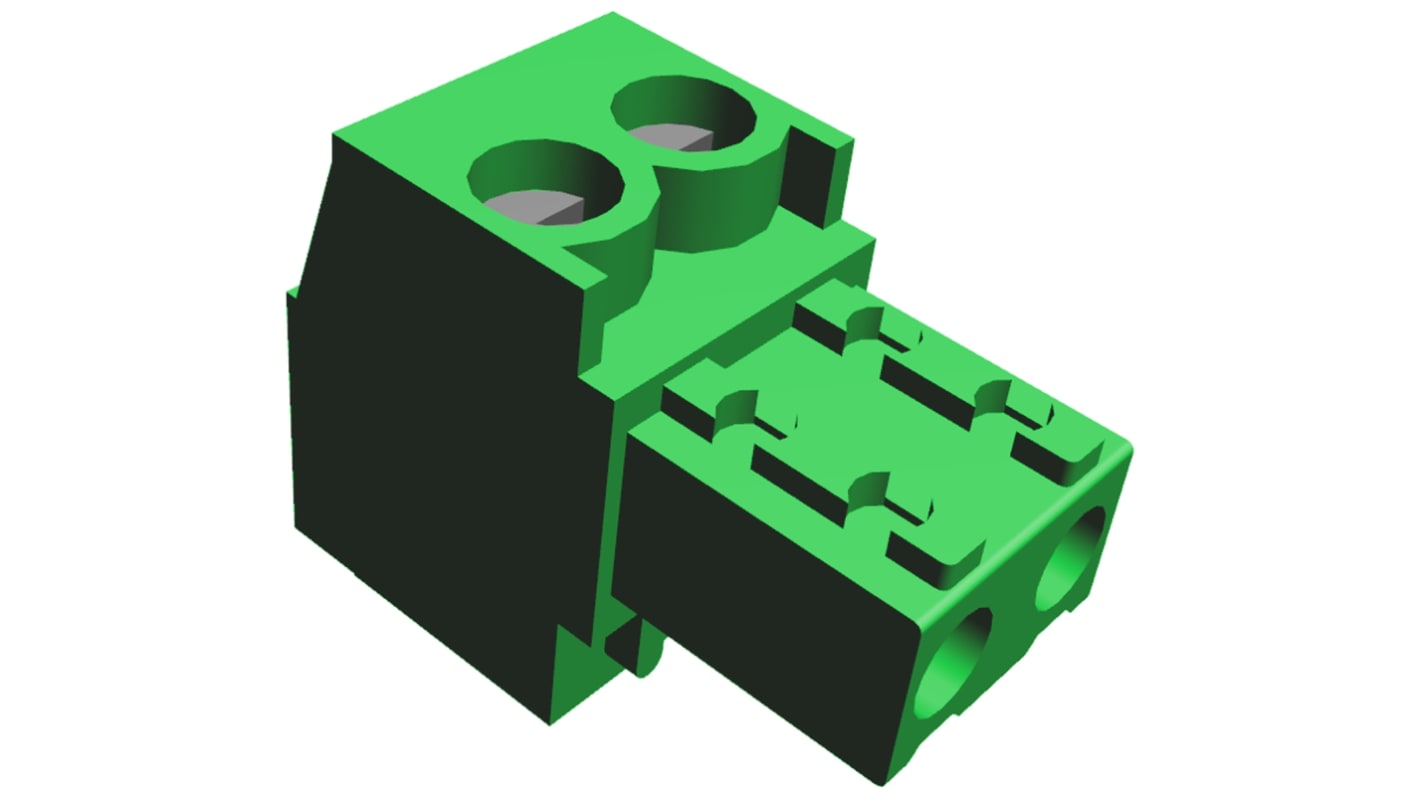

TE Connectivity Buchanan Series Pluggable Terminal Block, 2-Contact, 3.81 mm Pitch, 1 Row, 284507-2
- RS 제품 번호:
- 164-5784
- 제조사 부품 번호:
- 284507-2
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 164-5784
- 제조사 부품 번호:
- 284507-2
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Number of Contacts | 2 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 3.81mm | |
| Current | 11A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.05mm² | |
| Housing Material | Polyamide | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2mm² | |
| Minimum Wire Size AWG | 14 AWG | |
| Maximum Wire Size AWG | 30 AWG | |
| Orientation | Straight, Straight | |
| Colour | Green, Green | |
| Voltage | 300V | |
| Standards/Approvals | No | |
| Series | Buchanan | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Number of Contacts 2 | ||
Product Type Pluggable Terminal Block | ||
Pitch 3.81mm | ||
Current 11A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.05mm² | ||
Housing Material Polyamide | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2mm² | ||
Minimum Wire Size AWG 14 AWG | ||
Maximum Wire Size AWG 30 AWG | ||
Orientation Straight, Straight | ||
Colour Green, Green | ||
Voltage 300V | ||
Standards/Approvals No | ||
Series Buchanan | ||
TE Connectivity TERMI-BLOK 3.81mm PCB Terminal Block Plug Connectors
A range of TERMI-BLOK 3.81mm right angle Terminal Block plug connectors with M2 screw Terminals. These TERMI-BLOK 3.81mm screw Terminal Block plug connectors are MADE from green polyamide 6.6 GF, are side stackable and accept a wire size of 30 to 14 AWG.
TE Connectivity TERMI-BLOK 3.81mm Two Part Terminal Blocks
