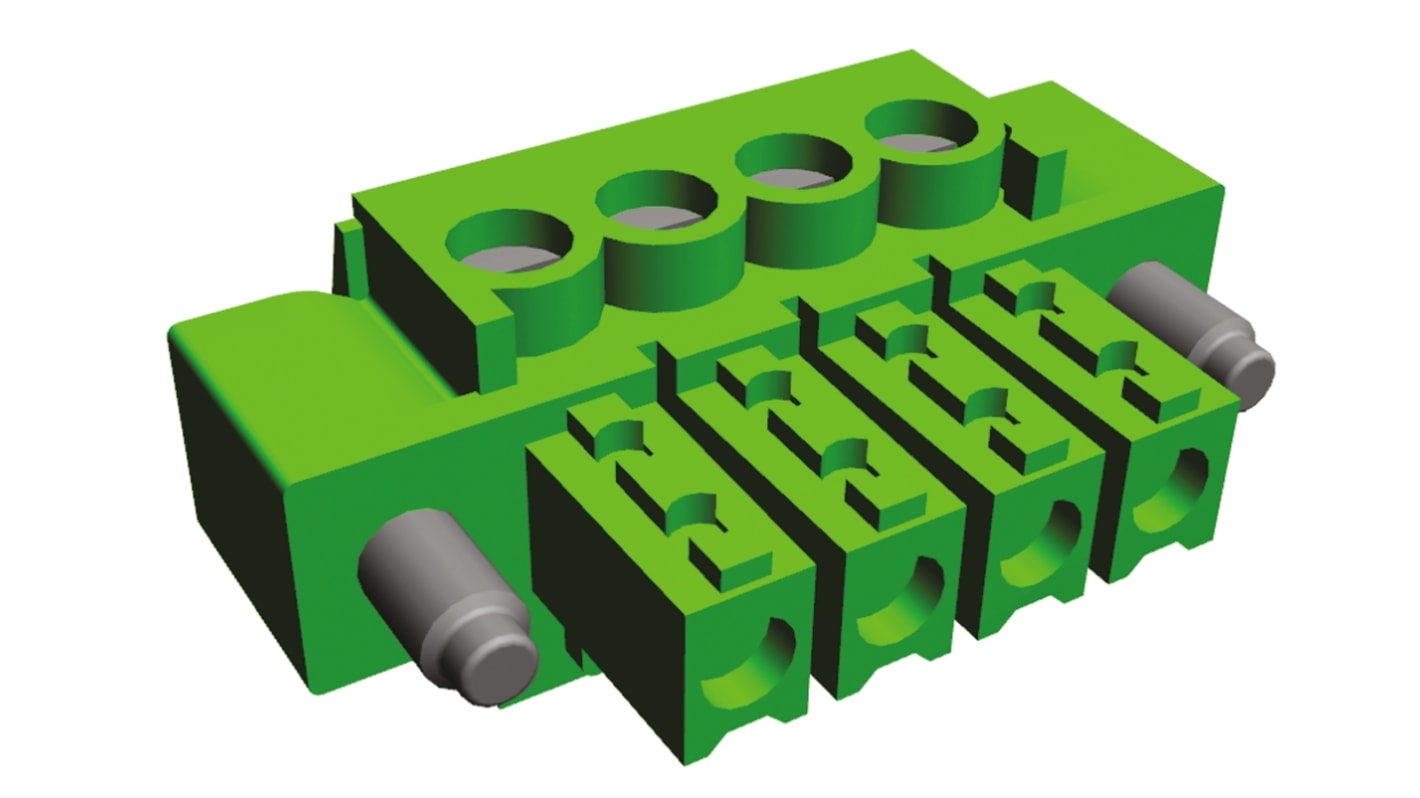

TE Connectivity Buchanan Series Pluggable Terminal Block, 4-Contact, 3.81 mm Pitch, 1 Row, 284511-4
- RS 제품 번호:
- 164-5260
- 제조사 부품 번호:
- 284511-4
- 제조업체:
- TE Connectivity
대량 구매 할인 기용 가능
Subtotal (1 Bag of 150 units)*
₩1,383,774.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Bag* |
|---|---|---|
| 150 - 150 | ₩9,225.16 | ₩1,383,745.80 |
| 300 - 450 | ₩9,040.92 | ₩1,356,081.60 |
| 600 + | ₩8,860.44 | ₩1,328,981.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 164-5260
- 제조사 부품 번호:
- 284511-4
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 4 | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Current | 11A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.05mm² | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2mm² | |
| Minimum Wire Size AWG | 14 AWG | |
| Maximum Wire Size AWG | 30 AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Voltage | 300 V ac | |
| Standards/Approvals | No | |
| Series | Buchanan | |
| Length | 15.84mm | |
| Width | 15.5 mm | |
| Depth | 11.1mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 4 | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Current 11A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.05mm² | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2mm² | ||
Minimum Wire Size AWG 14 AWG | ||
Maximum Wire Size AWG 30 AWG | ||
Orientation Straight | ||
Colour Green | ||
Voltage 300 V ac | ||
Standards/Approvals No | ||
Series Buchanan | ||
Length 15.84mm | ||
Width 15.5 mm | ||
Depth 11.1mm | ||
TE Connectivity TERMI-BLOK 3.81mm Right Angle PCB Terminal Block Plug Connectors with Screw Flange
TERMI-BLOK 3.81mm right angle Terminal Block plug connectors with screw flange, side wire entry and polarization slots. These TERMI-BLOK 3.81mm Terminal Block plug connectors have M2 screw clamp Terminals and are MADE from green polyamide 6.6 GF.
TE Connectivity TERMI-BLOK 3.81mm Two Part Terminal Blocks
