RS PRO CTBP Series Pluggable Terminal Block, 3-Contact, 5 mm Pitch, 1 Row
- RS 제품 번호:
- 144-4339
- 제조업체:
- RS PRO

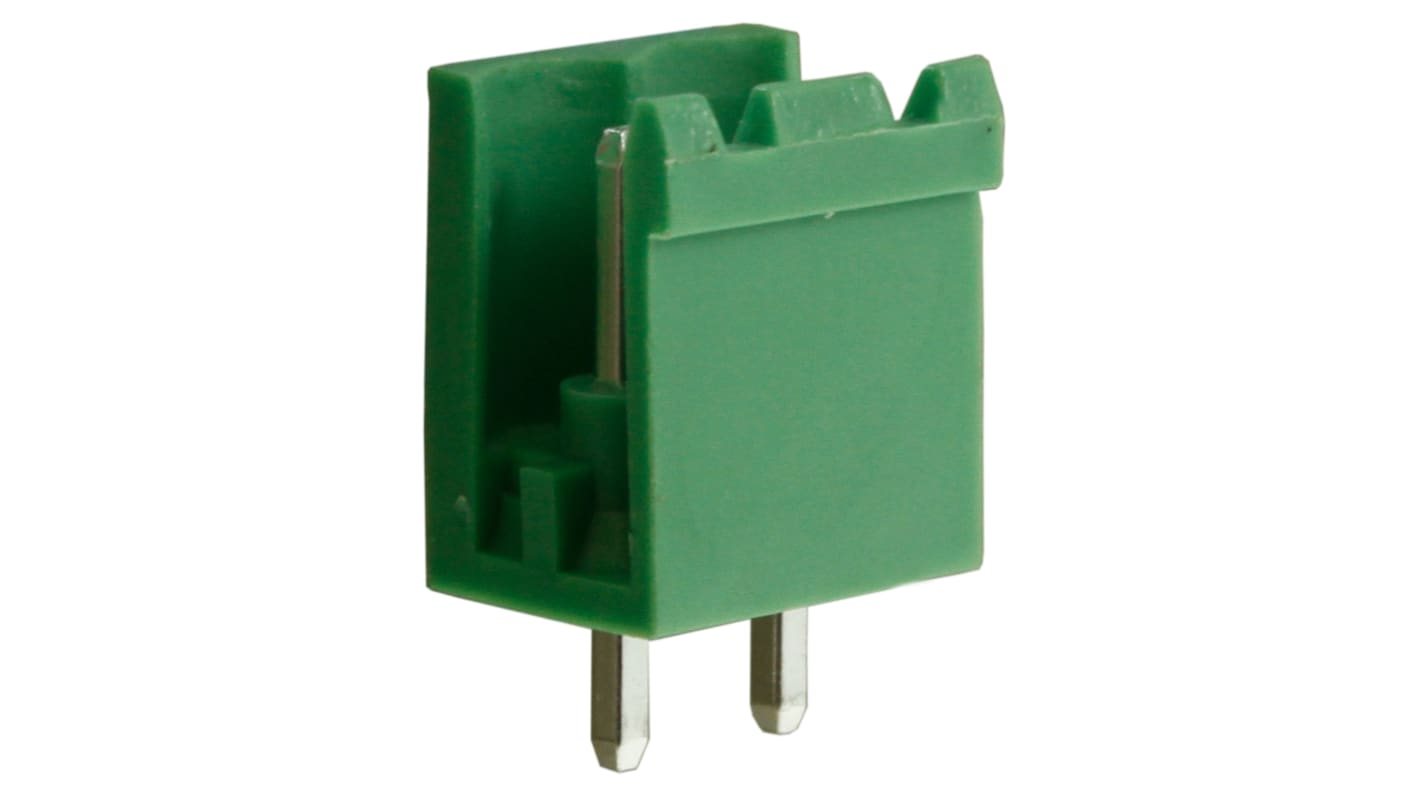

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩2,970.40
마지막 RS 재고
- 추가로 2026년 3월 30일 부터 70 개 단위 배송
- 2026년 4월 06일 부터 최종 10 개 단위 배송
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 240 | ₩297.04 | ₩2,970.40 |
| 250 - 1240 | ₩291.40 | ₩2,914.00 |
| 1250 + | ₩238.76 | ₩2,387.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 144-4339
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Number of Contacts | 3 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 15A | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.32mm² | |
| Maximum Wire Size mm² | 1.6mm² | |
| Minimum Wire Size AWG | 28 AWG | |
| Maximum Wire Size AWG | 14 AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 300 V | |
| Depth | 12mm | |
| Series | CTBP | |
| Length | 15mm | |
| Width | 8.5 mm | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Number of Contacts 3 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 15A | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.32mm² | ||
Maximum Wire Size mm² 1.6mm² | ||
Minimum Wire Size AWG 28 AWG | ||
Maximum Wire Size AWG 14 AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 300 V | ||
Depth 12mm | ||
Series CTBP | ||
Length 15mm | ||
Width 8.5 mm | ||
Standards/Approvals No | ||
2-12 pole solid Block
Pluggable male-female connectors
Horizontal & vertical female plug styles
Polarised mouldings
Moulded in green UL94-V0 flame retardant PA66
Professional rising clamp terminals
1.5mm2 (28-14AWG) solid & stranded cable
Captive screws
Guided pin alignment
UL & VDE approved
