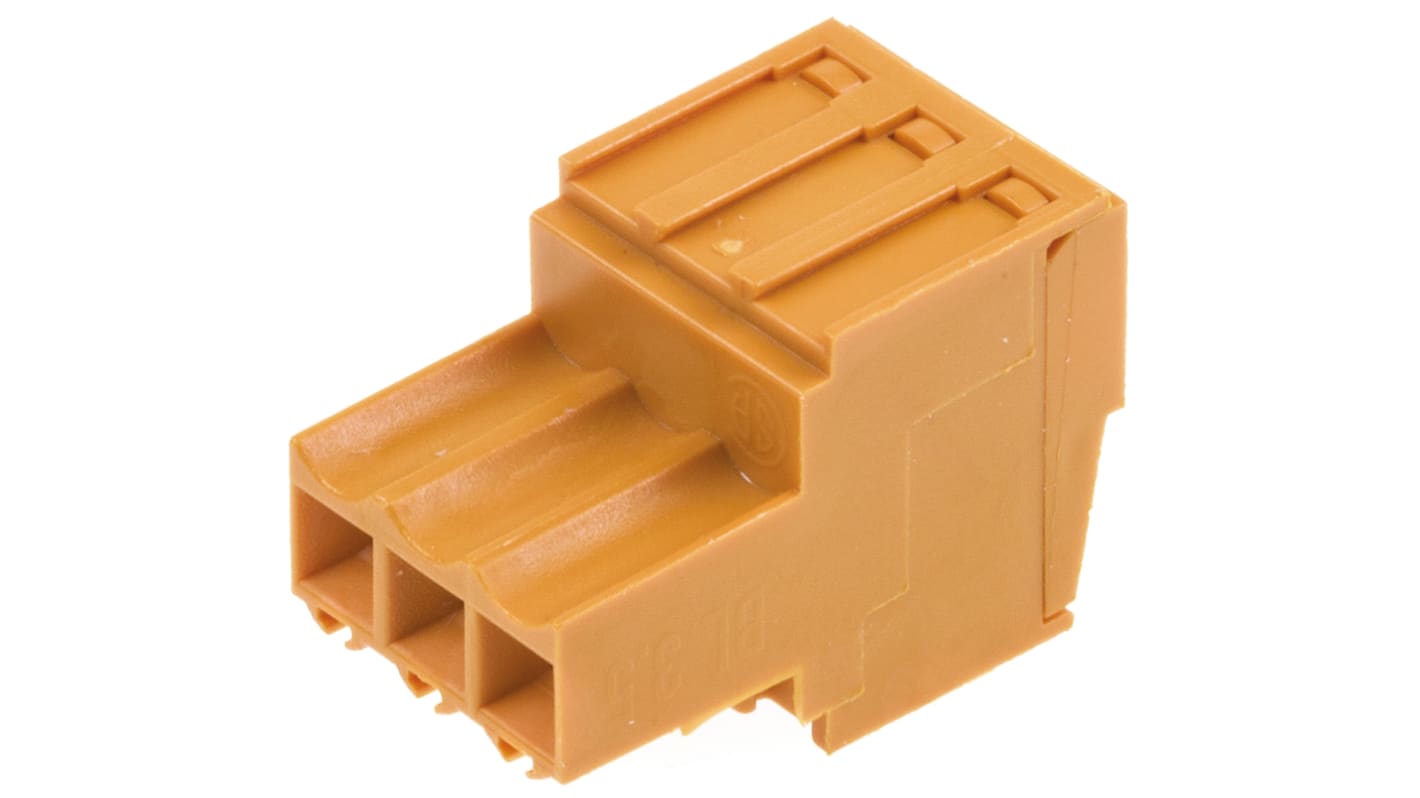

Weidmüller BL Series Pluggable Terminal Block, 3-Contact, 3.5 mm Pitch, 1 Row, 1597370000

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩20,416.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 610 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
5 - 120₩4,083.36₩20,416.80
125 - 370₩3,981.84₩19,909.20
375 - 995₩3,880.32₩19,401.60
1000 - 1995₩3,786.32₩18,931.60
2000 +₩3,707.36₩18,536.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
171-663
제조사 부품 번호:
1597370000
제조업체:
Weidmüller
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Weidmüller

Number of Contacts

3

Product Type

Pluggable Terminal Block

Pitch

3.5mm

Current

10A

Number of Rows

1

Minimum Wire Size mm²

0.08mm²

Housing Material

Polybutylene Terephthalate

Maximum Wire Size mm²

1.5mm²

Connector Gender

Female

Minimum Wire Size AWG

28 AWG

Maximum Wire Size AWG

14 AWG

Orientation

180°

Colour

Orange

Wire Connection Method

Clamping Yoke

Voltage

300 V

Series

BL

Standards/Approvals

No

Depth

18.5mm

Width

10.5 mm

COO (Country of Origin):
DE

Weidmuller OMINMATE Series 3.5mm Terminal Block Plug Connectors


OMINMATE series cable mount Terminal Block plug connectors with a 3.5mm pitch. These OMNIMATE female plug-in Terminal Block connectors have a horizontal wire entry and clamping yoke screw Terminals.

Features and Benefits


• Space saving design

• Accepts wire size 28-14 AWG

• Housing MADE from UL 94-B0 PBT

3.5mm Pitch - Weidmüller Omnimate Range


The Weidmuller 3.50 mm pitch Omnimate Range is a cost effective, space saving solution for PCB applications with vertical or horizontal headers which solder directly onto the board.

Mating harness connectors in either tension clamp or rising clamp screw terminals

Headers with fully enclosed sides

Polarising pins available to prevent mismatch connections

Flammability Class UL94 V-0
