WAGO Connector Male Solder 4 Port 4-Position, 2091-1634/024-000
- RS 제품 번호:
- 278-2665
- 제조사 부품 번호:
- 2091-1634/024-000
- 제조업체:
- WAGO
Subtotal (1 pack of 100 units)*
₩822,600.00
일시적 품절
- 2026년 11월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 100 + | ₩8,226.00 | ₩822,660.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 278-2665
- 제조사 부품 번호:
- 2091-1634/024-000
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Termination Type | Solder | |
| Product Type | Connector | |
| Current | 10A | |
| Number of Ports | 4 | |
| Number of Contacts | 4 | |
| Orientation | Vertical | |
| Connector Gender | Male | |
| Contact Plating | Tin | |
| Voltage | 300V | |
| Housing Material | Polyphthalamide | |
| Series | picoMAX | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Termination Type Solder | ||
Product Type Connector | ||
Current 10A | ||
Number of Ports 4 | ||
Number of Contacts 4 | ||
Orientation Vertical | ||
Connector Gender Male | ||
Contact Plating Tin | ||
Voltage 300V | ||
Housing Material Polyphthalamide | ||
Series picoMAX | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE

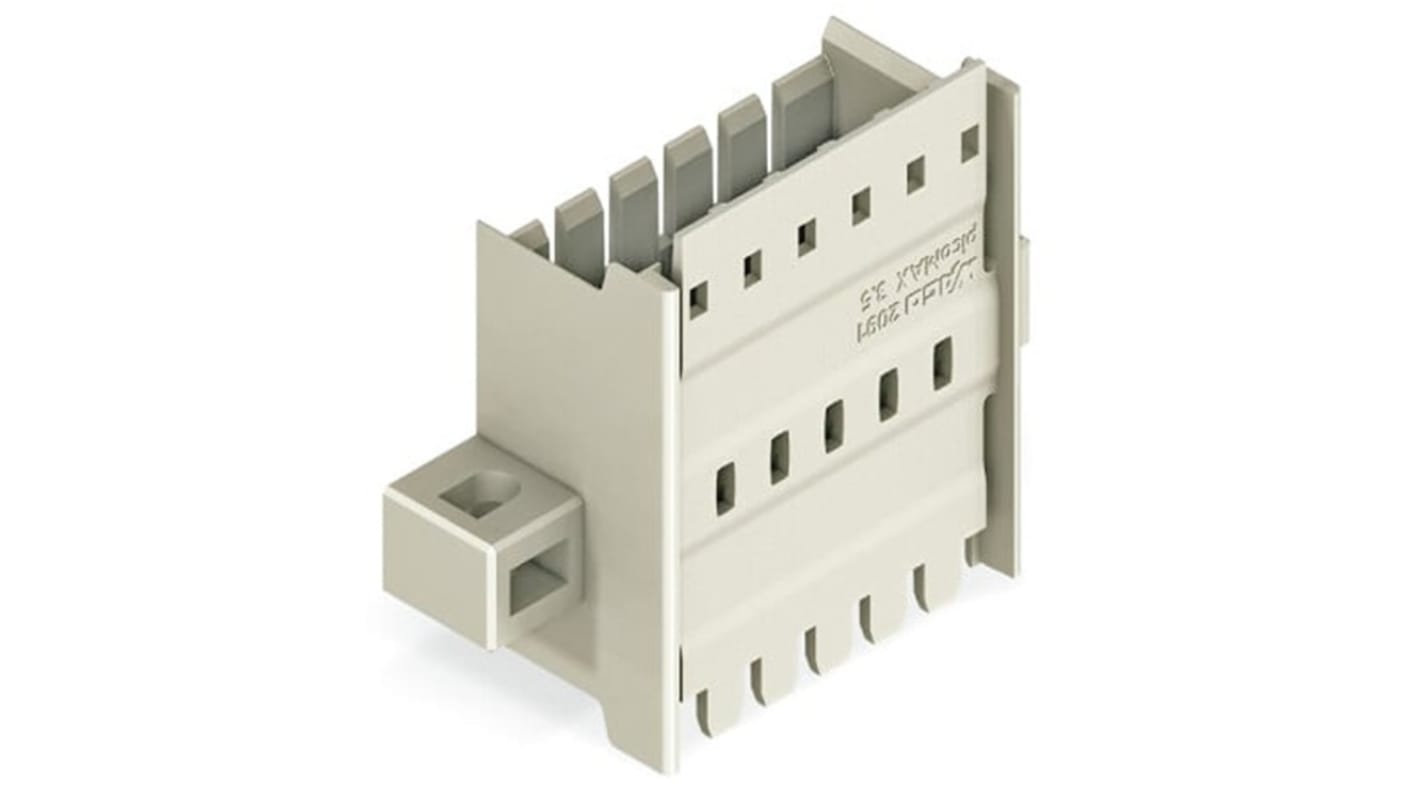

The WAGO Panel feedthrough male connector with a clamping collar is designed for electrical connections, featuring a 4 pole configuration and accommodating wires of 1.5 mm² thickness. It is available in light grey color.
RoHS compliant
Anti rotation protection
Plugging without loss of pin spacing
