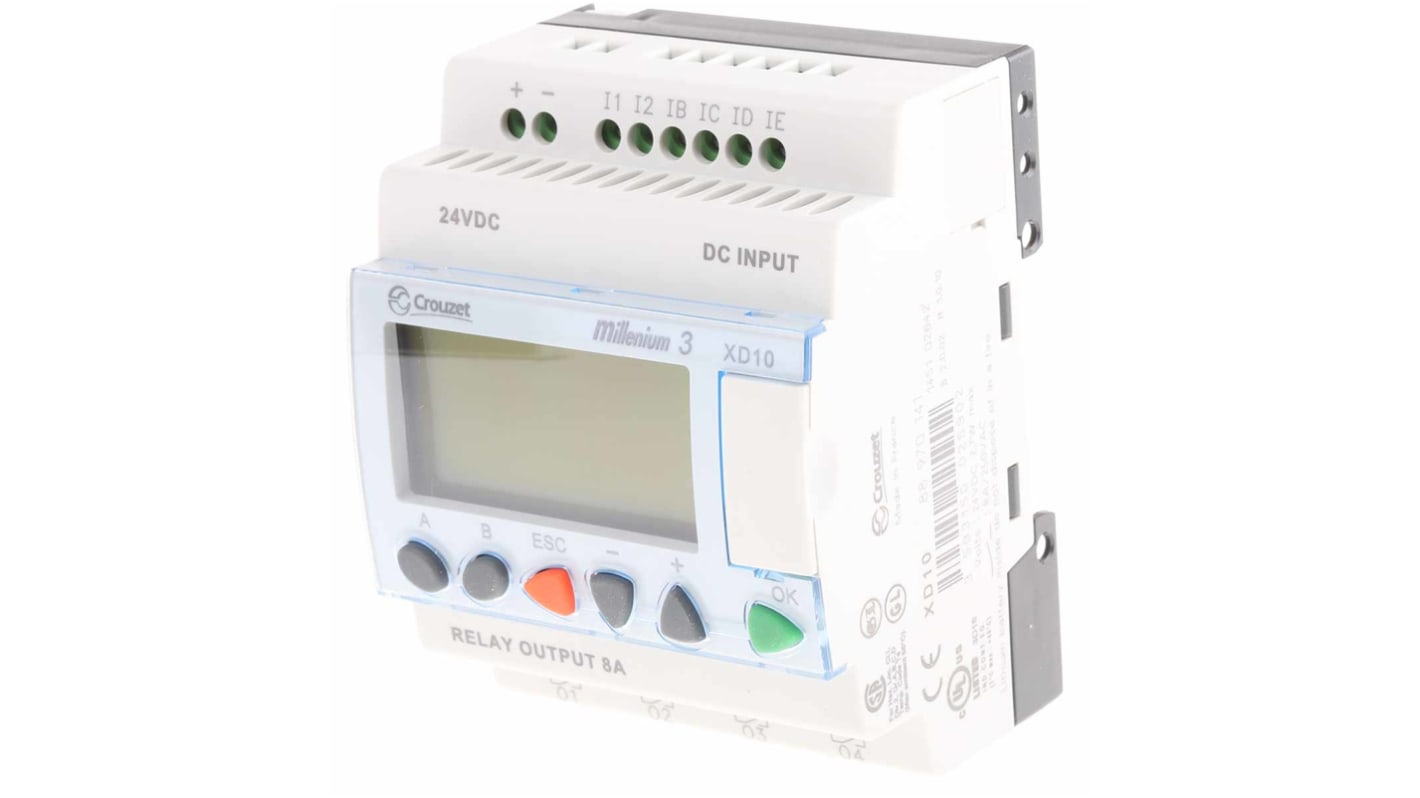

Crouzet Millenium 3 Series Logic Module, 6-Input, Analogue, Digital Input, 4 Outputs, Relay Output
- RS 제품 번호:
- 614-9915
- 제조사 부품 번호:
- 88970141
- 제조업체:
- Crouzet
Subtotal (1 unit)*
₩462,420.00
단종되는 중
- 9 개 단위 배송 준비 완료
- 2026년 11월 23일 부터 최종 10 개 단위 배송
수량 | 한팩당 |
|---|---|
| 1 + | ₩462,420.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 614-9915
- 제조사 부품 번호:
- 88970141
- 제조업체:
- Crouzet
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Crouzet | |
| Series | Millenium 3 | |
| Product Type | Logic Module | |
| Number of Inputs | 6 | |
| Output Type | Relay | |
| Input Type | Analogue, Digital | |
| Number of Outputs | 4 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | No | |
| Display Included | Yes | |
| Battery Backup | Yes | |
| Communication Port Type | USB, Serial | |
| Programming Language Used | Ladder Logic, Sequential function chart (SFC), FBD | |
| Number of Communication Ports | 2 | |
| Output Current | 8A | |
| Supply Voltage | 24V dc | |
| Mount Type | DIN Rail | |
| 모두 선택 | ||
|---|---|---|
브랜드 Crouzet | ||
Series Millenium 3 | ||
Product Type Logic Module | ||
Number of Inputs 6 | ||
Output Type Relay | ||
Input Type Analogue, Digital | ||
Number of Outputs 4 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals No | ||
Display Included Yes | ||
Battery Backup Yes | ||
Communication Port Type USB, Serial | ||
Programming Language Used Ladder Logic, Sequential function chart (SFC), FBD | ||
Number of Communication Ports 2 | ||
Output Current 8A | ||
Supply Voltage 24V dc | ||
Mount Type DIN Rail | ||
- COO (Country of Origin):
- FR
Crouzet Logic module
The Crouzet Millenium 3 series logic module is the latest generation of the Millenium expandable version XD10 series with 6 digital inputs( (including 4 analogues) and 4 relay output of 8A contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a supply voltage rating of 24VDC.
Crouzet Millenium 3
:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming
Features and Benefits
Operating temperature ranges between -20°C and +55°C
Green LCD with 4 lines of 18 characters and configurable backlighting
Selective parameter setting: you can choose the
parameters that can be adjusted on the front pane
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
LCD display
Memory size 368bits
Compact controller
Applications
Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems
