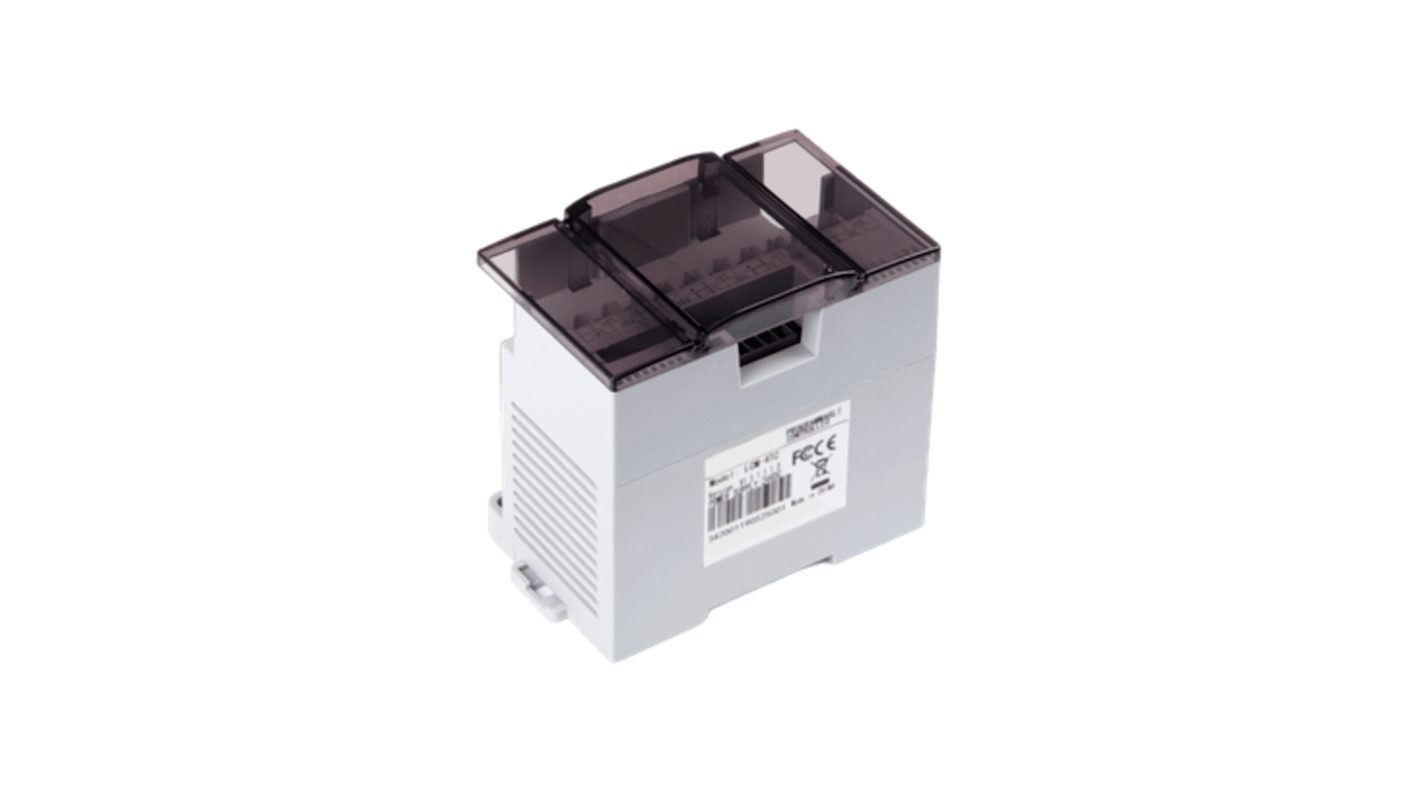

RS PRO Expansion Module for Use with RS PRO PLCs, Analogue Thermocouple
- RS 제품 번호:
- 266-5065
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩575,580.80
재고있음
- 추가로 2026년 3월 02일 부터 5 개 단위 배송
- 추가로 2026년 4월 14일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩575,580.80 |
| 5 - 9 | ₩564,056.40 |
| 10 - 24 | ₩546,798.00 |
| 25 + | ₩460,468.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 266-5065
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Accessory Type | I/O Expansion Module | |
| Number of Inputs | 4 | |
| Input Type | Analogue Thermocouple | |
| For Use With | RS PRO PLCs | |
| Mounting Type | DIN Rail | |
| Application | Thermocouple Input Module | |
| Termination | Plug-In | |
| Maximum Operating Temperature | +55°C | |
| Dimensions | 58 x 90 x 87.5 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Accessory Type I/O Expansion Module | ||
Number of Inputs 4 | ||
Input Type Analogue Thermocouple | ||
For Use With RS PRO PLCs | ||
Mounting Type DIN Rail | ||
Application Thermocouple Input Module | ||
Termination Plug-In | ||
Maximum Operating Temperature +55°C | ||
Dimensions 58 x 90 x 87.5 mm | ||
제외
- COO (Country of Origin):
- CN
RS PRO 4 to 16 Bit Analogue Thermocouple Input Expansion Module for RS PRO Programmable Logic Controllers
A 4 to 16 bit analogue thermocouple input PLC expansion module suitable for use with the RS PRO range of Programmable Logic Controllers capturing quick and precise thermocouple input.
Allowing easy tailoring and targeted scaling of systems to meet growing demand and functionality the PLC expansion module is simple to connect featuring plugin installation and is hardwearing, reliable, consistent and suitable for use in harsh industrial environments.
For a full list of all PLC’s, expansion module and the relevant Module Calculator please see the attached RS PRO datasheet.
Allowing easy tailoring and targeted scaling of systems to meet growing demand and functionality the PLC expansion module is simple to connect featuring plugin installation and is hardwearing, reliable, consistent and suitable for use in harsh industrial environments.
For a full list of all PLC’s, expansion module and the relevant Module Calculator please see the attached RS PRO datasheet.
Features and Benefits
PLC analogue thermocouple expansion module
4 to 16 bit
Input Voltage of DC 24V ±10%, 70mA
°C and °F measurements selectable
Rated Temperature Range Type K: -1000 to +12000°C / -1480 to +21920°F
Rated Temperature Range Type J: -1000 to +6000°C / -1480 to - +11120°F
Overall Accuracy of +/- 0.5% (full scale +1°C)
Supports 35mm DIN rail
Working temperature range of 0 - 55°C
4 to 16 bit
Input Voltage of DC 24V ±10%, 70mA
°C and °F measurements selectable
Rated Temperature Range Type K: -1000 to +12000°C / -1480 to +21920°F
Rated Temperature Range Type J: -1000 to +6000°C / -1480 to - +11120°F
Overall Accuracy of +/- 0.5% (full scale +1°C)
Supports 35mm DIN rail
Working temperature range of 0 - 55°C
Standards and Approvals: JIS0040, UKCA, CE, REACH, RoHS
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
