RS PRO Expansion Module for Use with RS PRO PLCs, Weighing
- RS 제품 번호:
- 266-5060
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩632,206.40
재고있음
- 추가로 2026년 3월 02일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩632,206.40 |
| 5 - 9 | ₩619,554.00 |
| 10 - 24 | ₩600,603.60 |
| 25 + | ₩505,757.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 266-5060
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Accessory Type | I/O Expansion Module | |
| Input Type | Weighing | |
| Number of Inputs | 1 | |
| For Use With | RS PRO PLCs | |
| Application | Weighing Input | |
| Mounting Type | DIN Rail | |
| Termination | Plug-In | |
| Maximum Operating Temperature | +55°C | |
| Dimensions | 58 x 90 x 87.5 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Accessory Type I/O Expansion Module | ||
Input Type Weighing | ||
Number of Inputs 1 | ||
For Use With RS PRO PLCs | ||
Application Weighing Input | ||
Mounting Type DIN Rail | ||
Termination Plug-In | ||
Maximum Operating Temperature +55°C | ||
Dimensions 58 x 90 x 87.5 mm | ||
제외
- COO (Country of Origin):
- CN

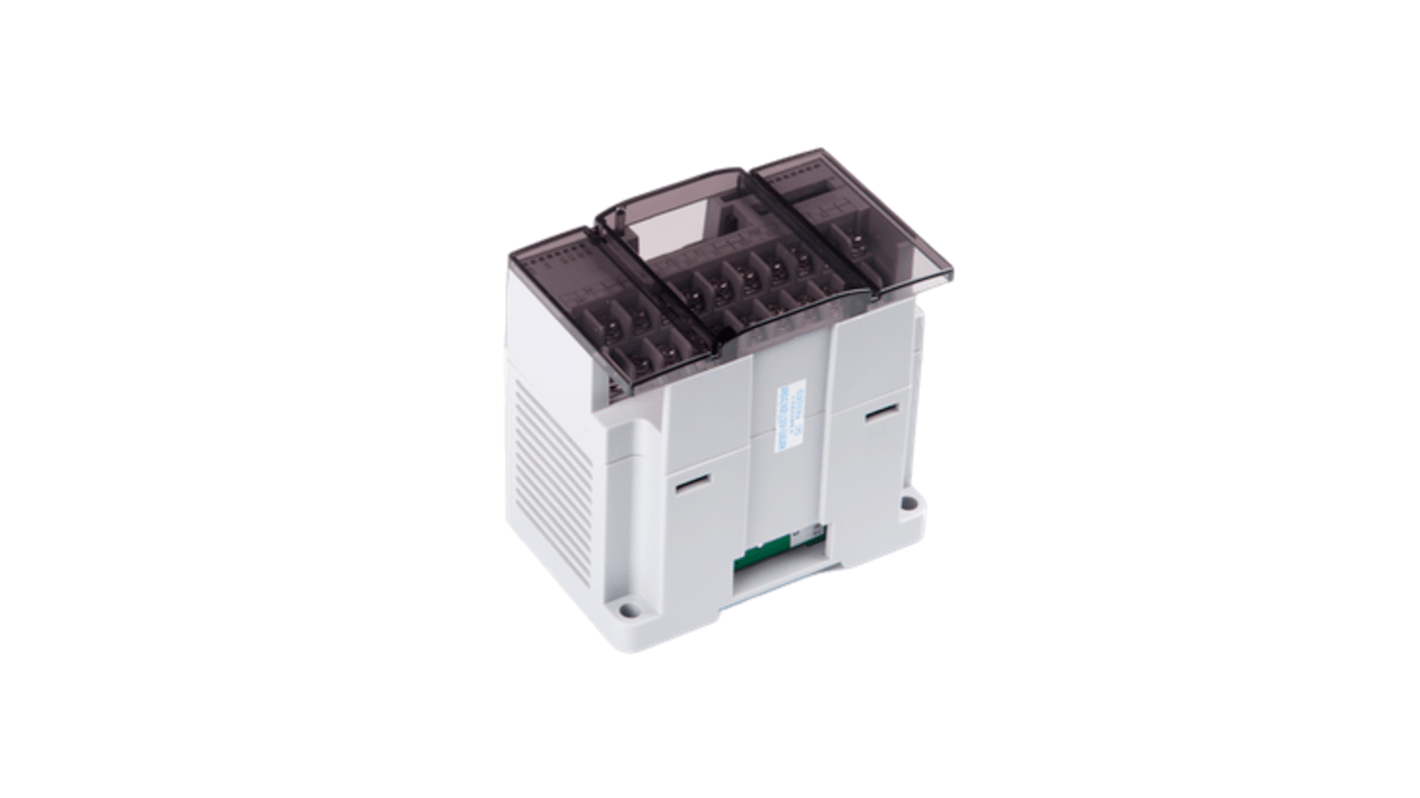

RS PRO 1 Channel Weighing Input Expansion Module for RS PRO Programmable Logic Controllers
A 1 channel weighing input PLC expansion module suitable for use with the RS PRO range of Programmable Logic Controllers enabling the precise and quick weighing input of existing setups. Designed to enable the precise and quick weighing input.
Allowing easy tailoring and targeted scaling of systems to meet growing demand and functionality the PLC expansion module is simple to connect featuring plugin installation and is hardwearing, reliable, consistent and suitable for use in harsh industrial environments.
For a full list of all PLC’s, expansion module and the relevant Module Calculator please see the attached RS PRO datasheet.
Allowing easy tailoring and targeted scaling of systems to meet growing demand and functionality the PLC expansion module is simple to connect featuring plugin installation and is hardwearing, reliable, consistent and suitable for use in harsh industrial environments.
For a full list of all PLC’s, expansion module and the relevant Module Calculator please see the attached RS PRO datasheet.
Features and Benefits
PLC weighing input expansion module
1 channel
24 bit
Speed of 7.5/10/25/50/60/150/300Hz
Sensor Sensitivity of 1mV/V – 15mV/V
Excitation Voltage/Load: 5V, Load Impedance ≥200Ω
Supports 35mm DIN rail
Working temperature range of 0 - 55°C
1 channel
24 bit
Speed of 7.5/10/25/50/60/150/300Hz
Sensor Sensitivity of 1mV/V – 15mV/V
Excitation Voltage/Load: 5V, Load Impedance ≥200Ω
Supports 35mm DIN rail
Working temperature range of 0 - 55°C
Standards and Approvals: JIS0040, UKCA, CE, REACH, RoHS
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
