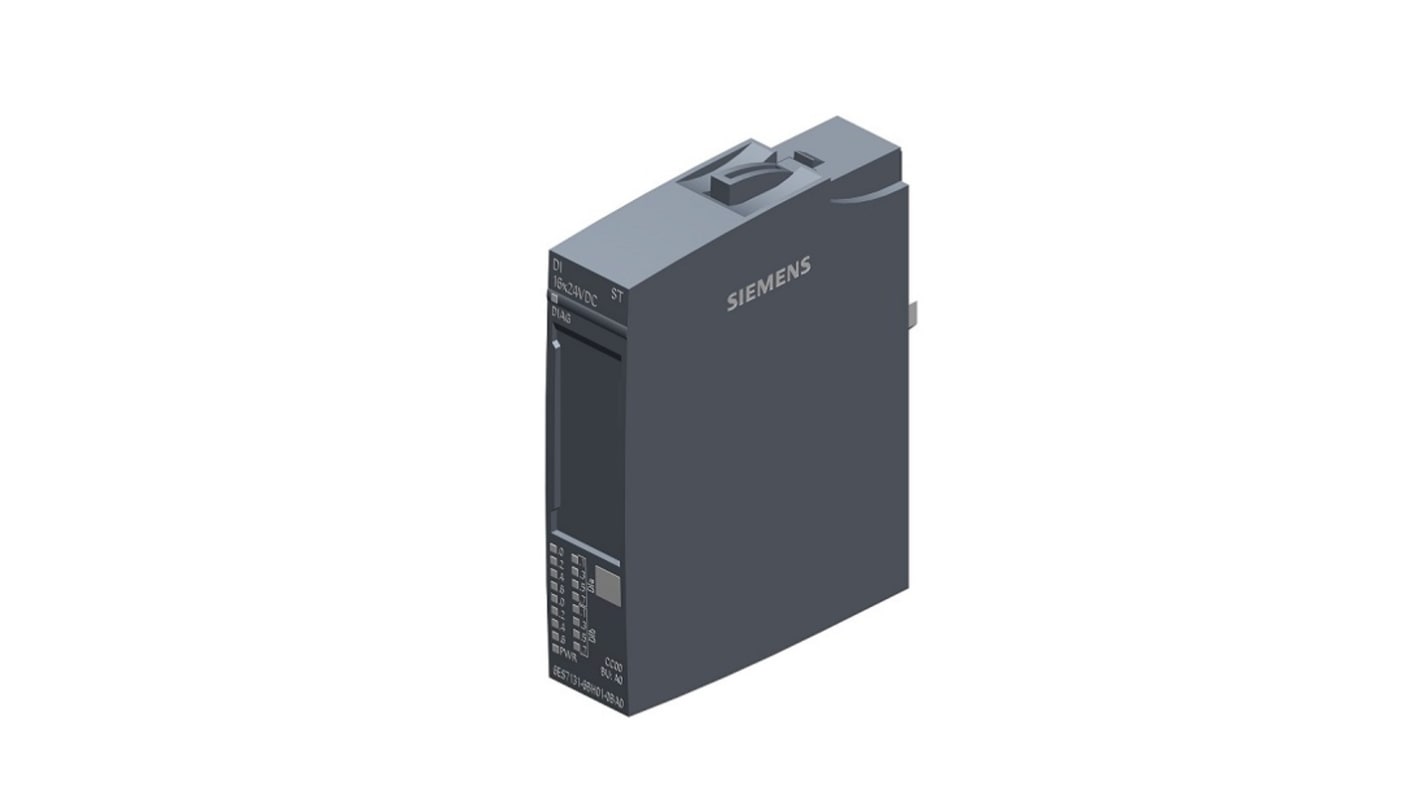

Siemens Digital I/O Module SIMATIC ET 200SP Digital 24V dc
- RS 제품 번호:
- 203-4210
- Distrelec 제품 번호:
- 301-18-022
- 제조사 부품 번호:
- 6ES7131-6BH01-0BA0
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩324,224.80
재고있음
- 추가로 2026년 3월 30일 부터 709 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩324,224.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 203-4210
- Distrelec 제품 번호:
- 301-18-022
- 제조사 부품 번호:
- 6ES7131-6BH01-0BA0
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Product Type | Digital I/O Module | |
| Module Type | Digital I/O Module | |
| Input Type | Digital | |
| Maximum Supply Voltage | 24V dc | |
| Number of I/Os | 16 | |
| Maximum Operating Temperature | 60°C | |
| Depth | 58mm | |
| Standards/Approvals | No | |
| Width | 15mm | |
| Series | SIMATIC ET 200SP | |
| Length | 73mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Product Type Digital I/O Module | ||
Module Type Digital I/O Module | ||
Input Type Digital | ||
Maximum Supply Voltage 24V dc | ||
Number of I/Os 16 | ||
Maximum Operating Temperature 60°C | ||
Depth 58mm | ||
Standards/Approvals No | ||
Width 15mm | ||
Series SIMATIC ET 200SP | ||
Length 73mm | ||
- COO (Country of Origin):
- DE
Siemens Digital I/O Module, 16 Inputs, 24V DC Voltage Rating - SIMATIC Series - 6ES7131-6BH01-0BA0
Use this Siemens digital I/O module to transmit information about your machines to your PLC. Offering 16 digital inputs, it gives your controller the capacity to monitor more appliances at once for an effective automated system. The unit lets you programme its input delays between 0.05 and 20ms, ensuring your processes keep working efficiently. It sends diagnostic signals to your PLC, immediately alerting you when there's a fault and allowing for fast troubleshooting. Each of the device's inputs consumes just 2.5mA of current to minimise power usage. As it mounts directly onto your logic controller, installation is straightforward.
• 24V DC voltage rating indicates compatibility with standard electrical supplies
• Reverse polarity protection prevents damage from incorrect wiring
• Low-profile design measures 15 (width) x 73 (height) x 58mm (depth) for mounting in busy systems
• Works with shielded cables up to 1km long to prevent disruption from EMI
How do I mount this input module?
The unit plugs both horizontally and vertically into your PLC to suit your existing setup.
Can I use this module with unshielded cabling?
Yes, the device supports unshielded cables up to 600m long.
