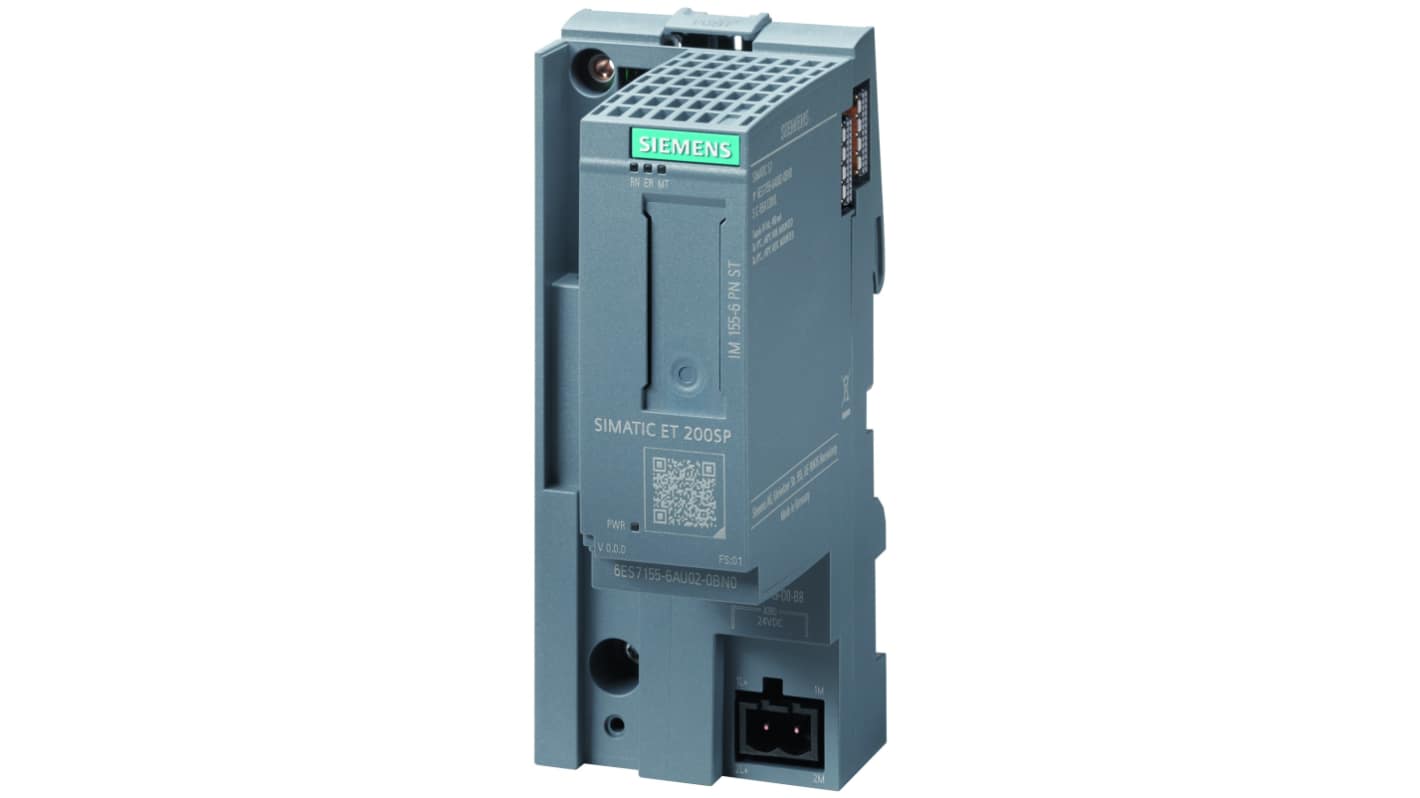

Siemens Interface Module 6ES7155-6AA02-0BN0 28.8V

모든 PLC Accessories 열람하기

Subtotal (1 unit)*

₩681,954.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 5월 25일 부터 5 개 단위 배송
  • 추가로 2026년 6월 04일 부터 5 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩681,954.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
219-849
Distrelec 제품 번호:
304-21-295
제조사 부품 번호:
6ES7155-6AA02-0BN0
제조업체:
Siemens
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Siemens

Product Type

Interface Module

Interface Type

Ethernet RJ45

Maximum Supply Voltage

28.8V

Number of I/Os

4

Series

6ES7155-6AA02-0BN0

Depth

74mm

Length

117mm

Standards/Approvals

PROFINET Security Class 1

Width

50mm

COO (Country of Origin):
DE

Siemens 6ES7155-6AA02-0BN0 Series Interface Module, PROFINET Security Class 1 Standard - 6ES7155-6AA02-0BN0


This is an Interface module designed to integrate ET200SP distributed I/O with PROFINET networks, providing a Compact communication gateway for automation systems. Supplied as a bundle including a server module and a dual-RJ45 bus adapter, it supports up to 32 local I/O modules and connects additional ET200AL devices while offering security features for industrial Ethernet environments.

Features & Benefits


• 100Mbit/s PROFINET full-duplex ensures deterministic data exchange
• Supports up to 32 ET200SP modules for extensive I/O scaling
• Multi-hot swapping enables module replacement during operation
• PROFINET Security Class1 provides firmware integrity and secure updates
• MRP client capability delivers media redundancy for network resilience
• Power consumption 350mA typical minimises supply loading

**Applications**


• Suitable for distributed machine I/O in manufacturing plants
• Ideal for integrating field modules with S7-1500 controllers
• Used with ET200AL stations to expand remote I/O capacity
• Can be used in systems requiring PROFINET media redundancy
• Used for centralised asset identification via I&M0–I&M4 data

Which tools are supported for configuration and engineering?


It is configurable in STEP7 TIA Portal from V18 and in STEP7 from V5.7 SP2 HF1 and uses GSDML V2.43 for PROFINET integration.

How is the unit protected against supply issues?


Reverse polarity and short-circuit protection are present, with stored energy buffering of 10ms for brief mains interruptions.

What diagnostics and status indicators are available?


The module provides RUN, ERROR, MAINT and PWR LEDs Plus LINK TX/RX indicators on the bus adapter and supports alarm and diagnostics reporting.

What environmental limits apply during installation?


It operates between -30°C to +60°C when mounted horizontally and up to 5000 m altitude with specific installation restrictions above 2000m.

How is device addressing and data space managed?


Addressing supports dataset-based configuration with up to 288 byte per module and 1440 byte per station for input/output data.
