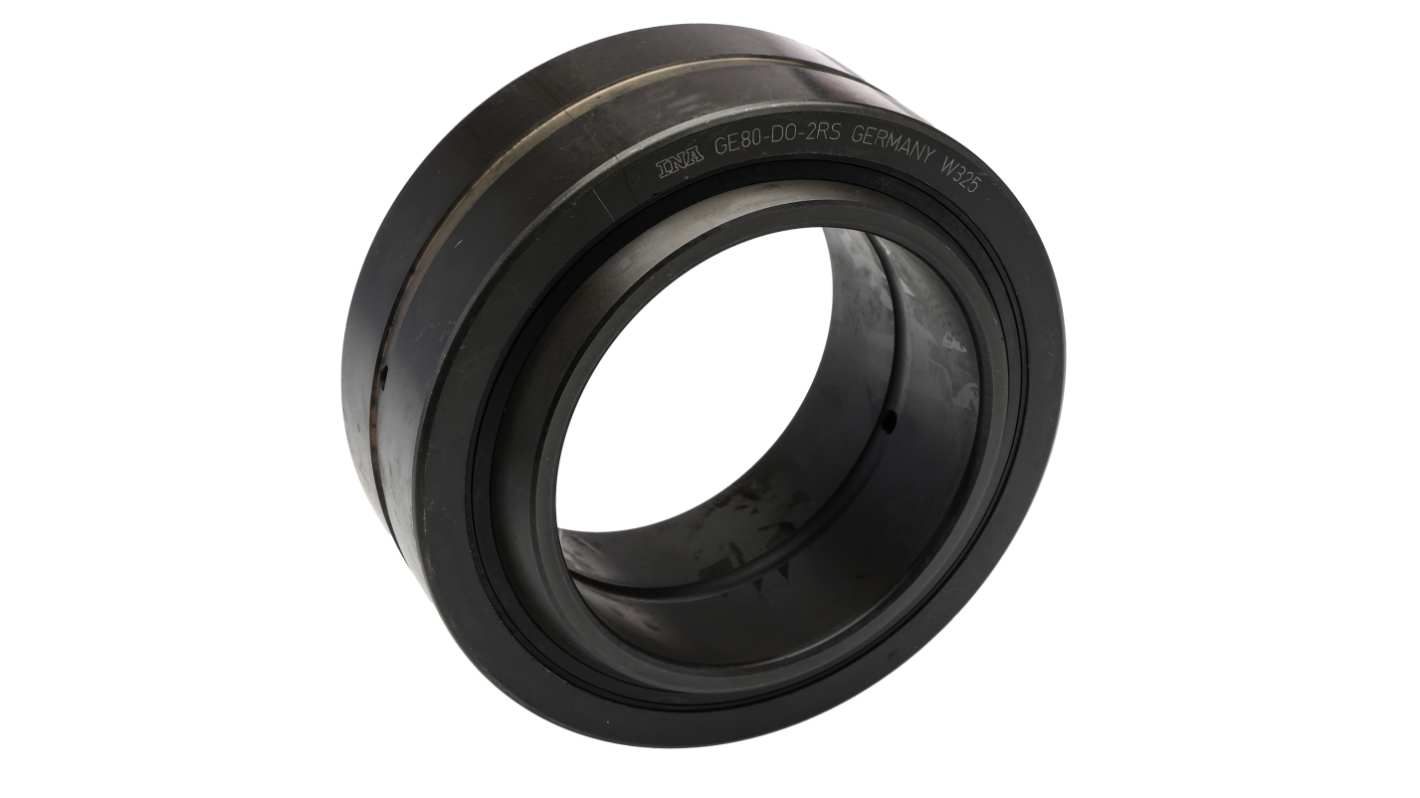

INA GE80-DO-2RS 80 mm Bore Plain Bearing, 120 mm OD, 1940000 N
- RS 제품 번호:
- 260-0289
- 제조사 부품 번호:
- GE80-DO-2RS
- 제조업체:
- INA
Subtotal (1 unit)*
₩355,660.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩355,660.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 260-0289
- 제조사 부품 번호:
- GE80-DO-2RS
- 제조업체:
- INA
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | INA | |
| Product Type | Plain Bearing | |
| Bore Size | 80mm | |
| Outside Diameter | 120mm | |
| Material | Steel | |
| Static Load Rating - Radial | 1940000N | |
| Standards/Approvals | DIN ISO 12240-1 | |
| Width | 55mm | |
| Series | GE80-DO-2RS | |
| 모두 선택 | ||
|---|---|---|
브랜드 INA | ||
Product Type Plain Bearing | ||
Bore Size 80mm | ||
Outside Diameter 120mm | ||
Material Steel | ||
Static Load Rating - Radial 1940000N | ||
Standards/Approvals DIN ISO 12240-1 | ||
Width 55mm | ||
Series GE80-DO-2RS | ||
제외
- COO (Country of Origin):
- DE
Schaeffler Plain Bearing, 80mm Bore size, 120mm Outside Diameter - GE80-DO-2RS
This plain bearing offers a robust solution for applications requiring high performance and durability. With an 80mm bore size and a 120mm outside diameter, it is engineered for significant load capacities. This bearing falls under the category of radial spherical plain bearings, designed to handle demanding operational conditions, ensuring efficiency and longevity.
Features & Benefits
• Designed for high load ratings of up to 1,940,000N
• Durable steel/steel sliding contact surface enhances longevity
• Maintenance requirement optimised for extended performance
• Wide operational temperature range from -30 °C to 130 °C
• Built to DIN ISO 12240-1 standards for reliable compatibility
• Sealed design protects against contaminants and prolongs service life
Applications
• Utilised in industrial equipment for heavy-duty
• Suitable for automation systems requiring high precision movements
• Employed where reliable radial load bearings are essential
• Ideal for mechanical engineering configurations demanding robustness
What are the weight and radial clearance specific to this bearing?
The weight of the bearing is 2.25 kg, and the radial clearance ranges between 0.072mm and 0.142mm, ensuring a precise fit that accommodates operational needs.
Can this bearing be used in environments with extreme temperatures?
Yes, it operates effectively within a temperature range of -30 °C to 130 °C, making it suitable for various industrial environments.
What load ratings should I consider when selecting a bearing for my project?
It's crucial to evaluate the basic dynamic load rating of 504,000N and the static load rating of 1,940,000N to ensure the chosen bearing meets the application's specific demands.
