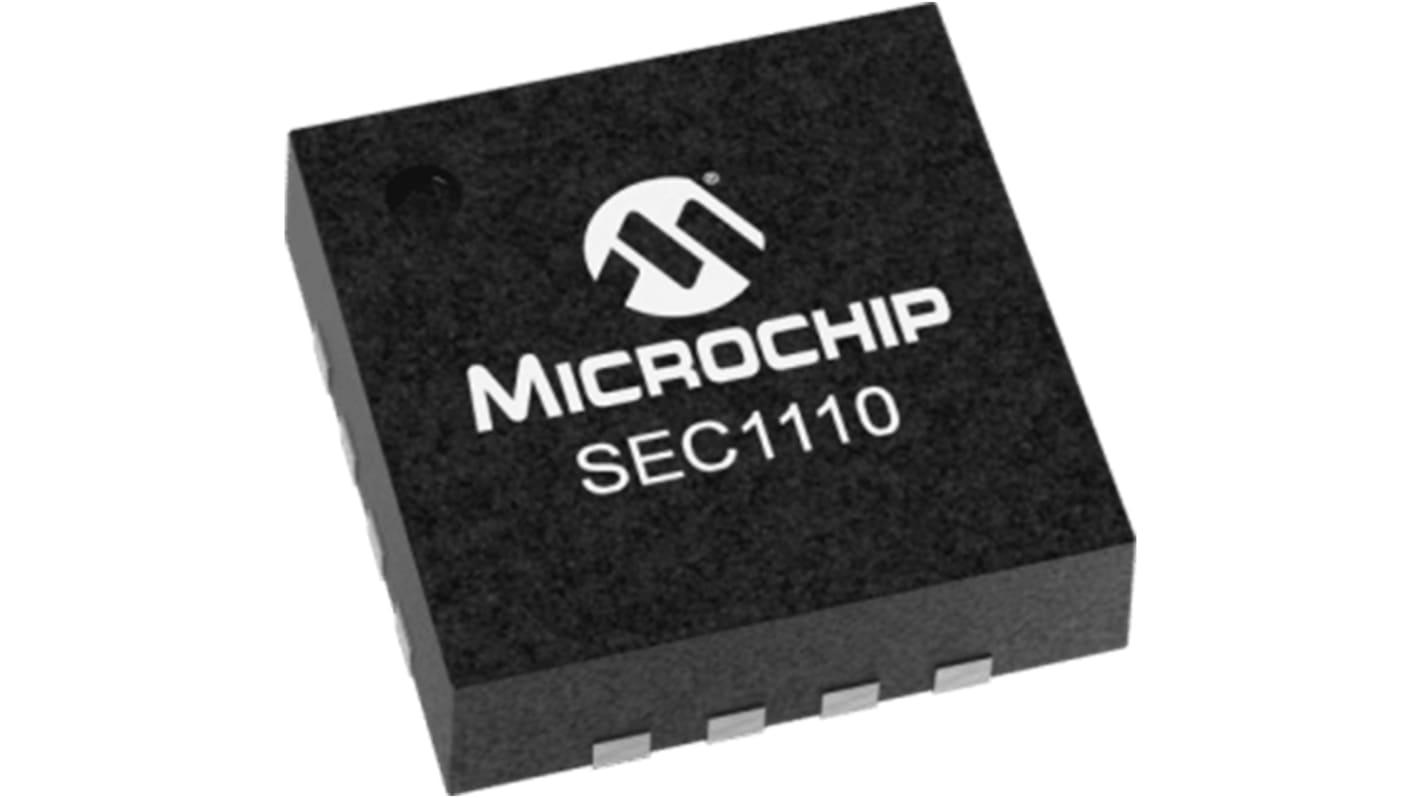

SEC1110I-A5-02, Smart Card Interface Smart Card 16-Pin QFN

모든 Peripheral Controller Chips 열람하기
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
RS 제품 번호:
841-7560
제조사 부품 번호:
SEC1110I-A5-02
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Peripheral Type

Smart Card

Number of Timer/Counters

3

Mounting Type

Surface Mount

Package Type

QFN

Pin Count

16

Dimensions

5.1 x 5.1 x 0.95mm

Length

5.1mm

Width

5.1mm

Height

0.95mm

Maximum Operating Supply Voltage

5.5 V

Maximum Operating Temperature

+85 °C

Minimum Operating Supply Voltage

3 V

Minimum Operating Temperature

-40 °C

SEC1110/1210 Smart Card to USB/SPI/UART Bridges


The Microchip SEC1110/1210 family of devices are Smart Card Bridge ICs with USB, SPI and UART interfaces. Through an effective combination of hardware and software the SEC1110 and SEC1210 offer a high-performance customisable solution. The SEC1110/1210 devices are certified to the latest USB and EMV standards to ensure interoperability with the latest and legacy Smart Card systems alike.

To simplify the development of custom USB-based applications these devices integrate USB Chip Card Interface Device (CCID) firmware. Also on-board is One-Time Programmable memory which can be utilised to host custom firmware or device data.

Features


Fully compliant with Smart Card standards: ISO/IEC 7816, EMV 4.2/4.3, ETSI TS 102 221 and PC/SC
USB, SPI or UART host interface
Dedicated hardware for performance
Low standby and dynamic power
OTP memory for code and custom configuration data
Versatile ETU rate generation, supporting current and proposed rates (to 826 Kbps and beyond)

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
